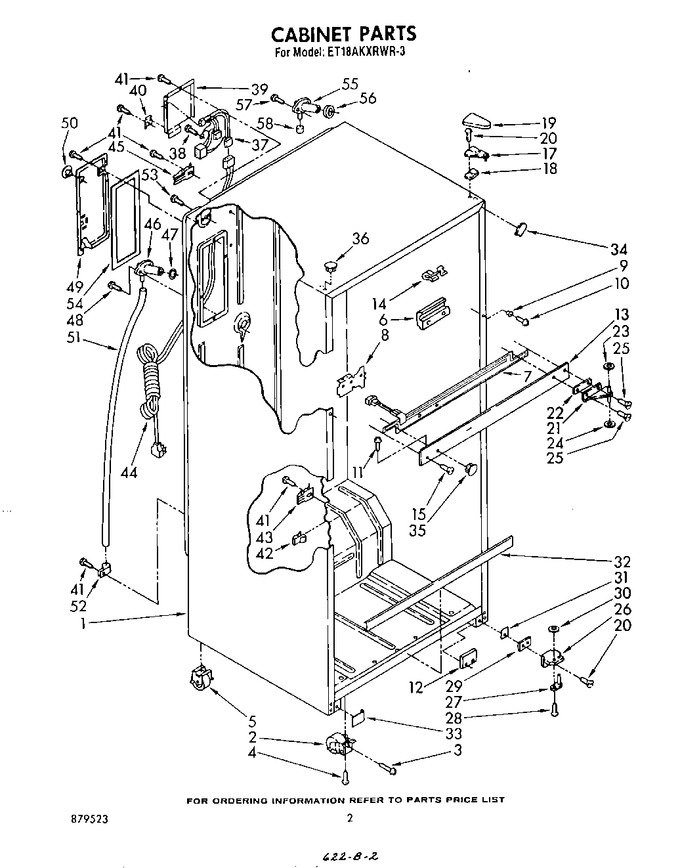

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	942774		Roller, Front		Appelez-nous	-
3	488681		Screw, 5/16-24 X 1		Appelez-nous	-
4	488448		Screw, 10-32 X 1/2		Appelez-nous	-
5	937216		Roller, Rear		Appelez-nous	-
6	939034		Center, Rail Shim		Appelez-nous	-
7	1108139		Heater, Mullion		Appelez-nous	-
8	1110231		Center Rail, Bracket (2)		Appelez-nous	-
9	942737		Ferrule, Center Rail		Appelez-nous	-
10	489129		Screw, 8-32 X 1/2		Appelez-nous	-
11	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 487900)			Immediately	$ 8.28
12	944813		Tap Plate (2)		Appelez-nous	-
13	1110346		Center Rail (toast)		Appelez-nous	-
13	1110347		Center Rail (platinum)		Appelez-nous	-
13	1110345		Center Rail (almond)		Appelez-nous	-
13	1110344		Center Rail (golden Harvest)		Appelez-nous	-
13	1110343		Center Rail (white)		Appelez-nous	-
14	534365		Breaker, Trim Clip				$ 14.83
15	489164		Screw		Appelez-nous	-
17	1100513		Shim, Hinge Top		Appelez-nous	-
18	1100509		Shim, Top Hinge		Appelez-nous	-
19	989194		Hinge Cover (almond)		Appelez-nous	-
19	1100173		Hinge Cover (platinum)		Appelez-nous	-
19	842010		Hinge Cover (white)		Appelez-nous	-
19	989896		Hinge Cover (golden Harvest)		Appelez-nous	-
19	1100172		Hinge Cover (toast)		Appelez-nous	-
20	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 8.56
20	488949		Screw (repair)		Appelez-nous	-
21	944788		Hinge, Center				$ 32.65
22	836195		Shim, Center (repair)		Appelez-nous	-
22	836155		Shim, Hinge Center		Appelez-nous	-
23	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
24	WP488296		Washer, 11/64   (Replaces: 488296)				$ 7.55
25	WP999367		Screw, 10-32 X 23/32 (2)   (Replaces: 489105)				$ 8.56
25	488949		Screw (repair)		Appelez-nous	-
26	944783		Hinge Butt, Bottom		Appelez-nous	-
27	654366		Hinge Pin, Bottom				$ 27.15
28	488714		Screw 10-32 X 5/16				$ 5.48
29	942812		Shim, Bottom		Appelez-nous	-
30	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
31	942822		Cover, Glider Rail (almond)		Appelez-nous	-
31	942818		Cover, Glider Rail (white)		Appelez-nous	-
31	1100686		Cover, Glider Rail (toast)		Appelez-nous	-
31	1100685		Cover, Glider Rail (platinum)		Appelez-nous	-
31	942820		Cover, Glider Rail (golden Harvest)		Appelez-nous	-
32	1109364		Cover, Deck Rail (white)		Appelez-nous	-
32	1109366		Cover, Deck Rail (golden Harvest)		Appelez-nous	-
32	1109368		Cover, Deck Rail (almond)		Appelez-nous	-
32	1109374		Cover, Deck Rail (platinum)		Appelez-nous	-
32	1109373		Cover, Deck Rail (toast)		Appelez-nous	-
33	944831		Cover, Glider Rail (almond)		Appelez-nous	-
33	1100681		Cover, Glider Rail (platinum)		Appelez-nous	-
33	1100682		Cover, Glider Rail (toast)		Appelez-nous	-
33	944833		Cover, Glider Rail (golden Harvest)		Appelez-nous	-
33	943552		Cover, Glider Rail (white)		Appelez-nous	-
34	1110686		Filler, Wrap Corner (golden Harvest)		Appelez-nous	-
34	1110688		Filler, Wrap Corner (platinum)		Appelez-nous	-
34	1110687		Filler, Wrap Corner (toast)		Appelez-nous	-
34	1110684		Filler, Wrap Corner (white)		Appelez-nous	-
34	1110685		Filler, Wrap Corner (almond)		Appelez-nous	-
35	940089		Hole Plug (golden Harvest)		Appelez-nous	-
35	940086		Hole Plug (white)		Appelez-nous	-
35	940087		Hole Plug (almond)		Appelez-nous	-
35	1100687		Hole Plug (platinum)		Appelez-nous	-
35	1100688		Hole Plug (toast)		Appelez-nous	-
36	989876		Hole Plug (2) (golden Harvest)		Appelez-nous	-
36	1100176		Hole Plug (2) (toast)		Appelez-nous	-
36	1100177		Hole Plug (2) (platinum)		Appelez-nous	-
36	842031		Hole Plug (2) (white)		Appelez-nous	-
36	989195		Hole Plug (2) (almond)		Appelez-nous	-
37	942844		Cabinet, Wiring Assembly		Appelez-nous	-
38	WP250830		Screw, 8-32 X 1/2   (Replaces: 489048)				$ 8.78
39	942845		Cover, Wiring		Appelez-nous	-
40	944741		Clip, Wiring Cover		Appelez-nous	-
41	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
42	W10812038		Clip, Wire (4)   (Replaces: 939054)		Appelez-nous	-
43	549193		Clamp-service Cord				$ 14.06
44	937360		Cord, Service		Appelez-nous	-
45	937357		Clamp		Appelez-nous	-
46	942813		Fitting, Drain		Appelez-nous	-
47	1106507		Seal, Gasket		Appelez-nous	-
48	WP98165		Screw, 8 X 5/8   (Replaces: 488401)				$ 8.57
49	1106511		Plug Assembly		Appelez-nous	-
50	655411		Hole Plug		Appelez-nous	-
51	8316810		Tube, Drain   (Replaces: 509640)				$ 125.72
52	519405		Clamp		Appelez-nous	-
53	WP489069		Screw, 8 X 1/2   (Replaces: 488645)			Immediately	$ 8.40
54	1106510		Seal, Gasket		Appelez-nous	-
55	WP2196157		Fitting, Water Tube   (Replaces: 836489)			Immediately	$ 12.59
56	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
57	WPW10141645		Screw, 8 X 1/2 (2)   (Replaces: 489084)				$ 8.05
58	WP487996		Cap, Plastic   (Replaces: 487996)				$ 8.67
