SELECT A DIAGRAM

02 - Cabinet

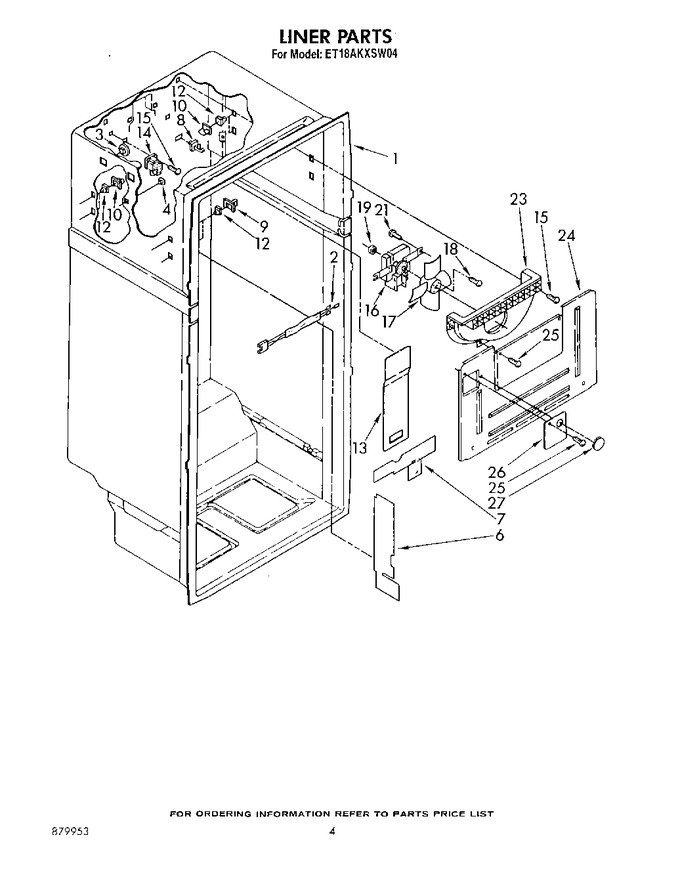

03 - Liner


04 - Compartment Separator


05 - Shelf


06 - Freezer Door


07 - Unit


08 - Refrigerator Door, Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	943796		Wiring, Fan Motor		Appelez-nous	-
3	944795		Hole Plug		Appelez-nous	-
4	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
6	942751		Side, Electric Shield		Appelez-nous	-
7	946351		Top, Electric Shield		Appelez-nous	-
8	942750		Stud, Evaporator (2)		Appelez-nous	-
9	946356		Stud (2)		Appelez-nous	-
10	819091		Saddle Stud L.s.   (Replaces: 946358)				$ 41.66
10	819091		Saddle Stud, R.s.   (Replaces: 946357)				$ 41.66
12	946355		Support Stud (8)		Appelez-nous	-
13	1118775		Cover, Air Duct		Appelez-nous	-
14	942842		Terminal Block, Multiple		Appelez-nous	-
15	WP489478		Screw   (Replaces: 489242)				$ 8.18
15	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 8.47
16	482731		Motor, Fan   (Replaces: 1105608)			Immediately	$ 79.05
17	WP1100938		Fan, Blade   (Replaces: 1100938)				$ 92.26
18	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 244.80
19	1114354		Grommet (2)		Appelez-nous	-
21	489168		Screw (2)		Appelez-nous	-
23	1122814		Scroll, Fan		Appelez-nous	-
24	943741		Evaporator Cover		Appelez-nous	-
25	WP488729		Screw (5)   (Replaces: 489225)			Immediately	$ 8.28
26	WP2217784		Hole Cover, Evaporator   (Replaces: 1103620)				$ 47.22
27	1103725		Hole Plug		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
