Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11625904 Pan, Ice Cube   (Replaces: 2166261) Special Order $ 67.83

2 2197061 Shelf (2) Appelez-nous -
3 WP9791600 Crisper Cover   (Replaces: 9791600) Special Order $ 167.35

4 WP2164186 Pan, Crisper   (Replaces: 2164186) In-Stock Immediately $ 129.49

6 9791824 Support, Crisper Special Order $ 44.69

7 836410 Post, Crisper Special Order $ 5.84

8 WPW10401596 Shelf, Ice Tray   (Replaces: 2197398) Special Order $ 86.39

9 2183273 Pan, Meat Special Order $ 61.29

10 9790379 Cover, Meat Pan Special Order $ 77.22


    View Diagram in Separate Window     Print Icon   Print Part List

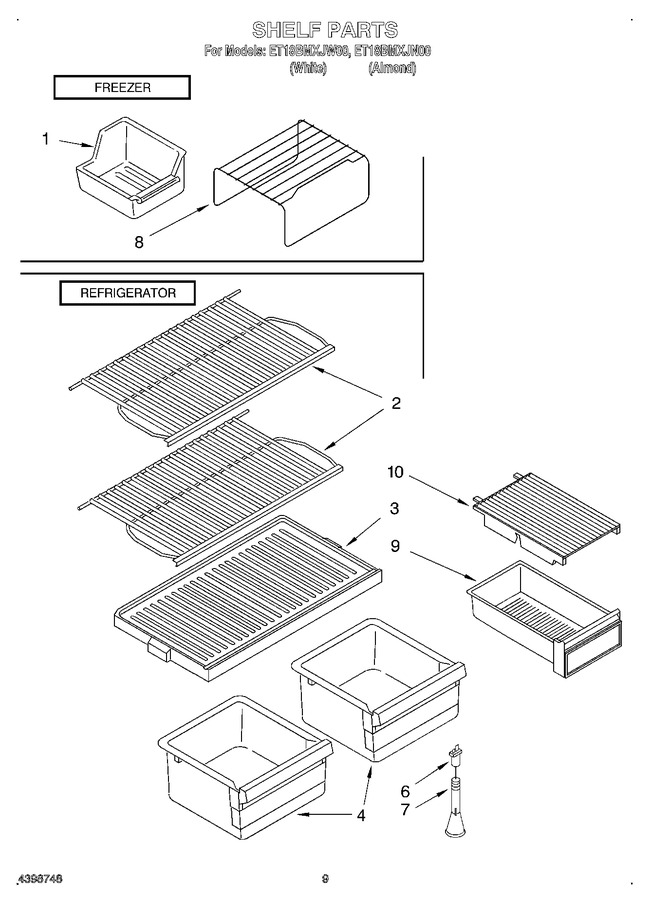

Diagram for ET18BMXJW00
