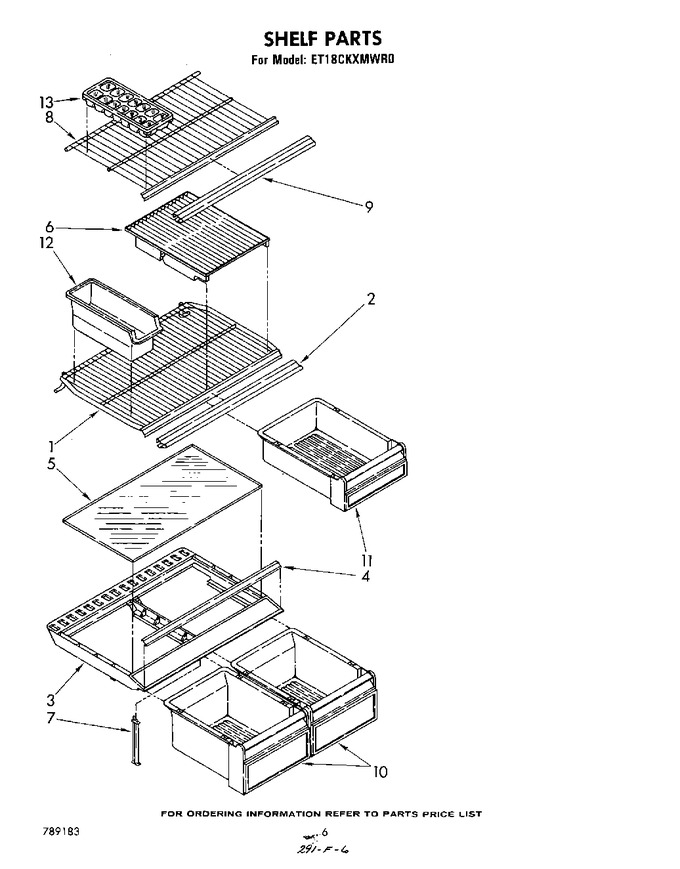

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	944732		Shelf, Pullout		Appelez-nous	-
2	943718		Trim, Shelf (front)		Appelez-nous	-
3	1100702		Cover, Crisper (for Platinum Model Only)		Appelez-nous	-
3	943654		Cover, Crisper		Appelez-nous	-
4	946436		Trim, Crisper Cover		Appelez-nous	-
5	943779		Glass, Crisper Cover		Appelez-nous	-
6	943789		Cover, Meat Pan		Appelez-nous	-
7	1100462		Support Post		Appelez-nous	-
8	944734		Shelf, Freezer		Appelez-nous	-
9	943728		Trim, Shelf (front)		Appelez-nous	-
10	943735		Crisper Pan (2)		Appelez-nous	-
10	946438		Crisper Pan (2) (for Platinum Model Only)		Appelez-nous	-
11	946426		Pan, Meat (for Platinum Model Only)		Appelez-nous	-
11	943790		Pan, Meat		Appelez-nous	-
12	WP982704		Container, Utility   (Replaces: 1100491)				$ 32.55
13	WP841180A		Ice Tray (for Platinum Model Only)   (Replaces: 841180)			Immediately	$ 47.84
13	WP841180A		Ice Tray   (Replaces: 944744)			Immediately	$ 47.84
