SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner

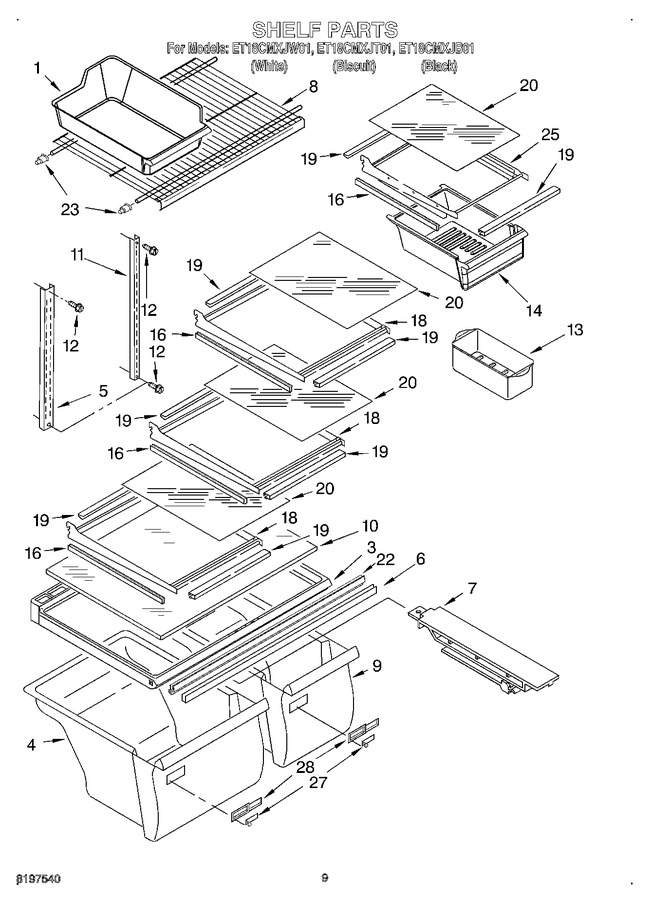

04 - Unit


05 - Shelf


06 - Ice Maker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2254352A		Ice Bucket   (Replaces: 2176219)				$ 58.64
3	WP2314548		Cover, Crisper   (Replaces: 2200768)				$ 259.83
4	W10854037		Crisper Pan Includes 27, 28   (Replaces: 2200658)			Immediately	$ 179.19
5	2202821		Shelf, Ladder		Appelez-nous	-
6	WP2172748		Support, Crisper Cover   (Replaces: 2172541)				$ 102.08
7	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 36.48
8	WP2176275		Shelf   (Replaces: 2176275)				$ 123.40
9	W10856580		Crisper Pan Includes 27, 28   (Replaces: 2200657)			Immediately	$ 177.03
10	WP2169921		Glass, Crisper Cover   (Replaces: 2169921)				$ 258.93
11	2210522		Shelf, Ladder (2)				$ 44.10
12	WP489478		Screw   (Replaces: 489478)				$ 8.18
13	W10136387A		Egg Bin   (Replaces: 2182730)				$ 19.54
14	WP2218127K		Meat Pan   (Replaces: 2201031K)				$ 146.80
16	2201089		Trim, Shelf Side		Appelez-nous	-
18	2201101E		Shelf, Catnilever		Appelez-nous	-
19	2201097		Trim, Shelf Front/rear		Appelez-nous	-
20	2200985		Glass, Half Shelf		Appelez-nous	-
22	2172683		Gasket, Crisper Cover		Appelez-nous	-
23	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.70
25	2201105		Pan Shelf, Cantilever				$ 78.45
27	WP2176222		Slide, Humidity Control   (Replaces: 2176222)				$ 27.35
28	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 15.81

    View Diagram in Separate Window       Print Part List
