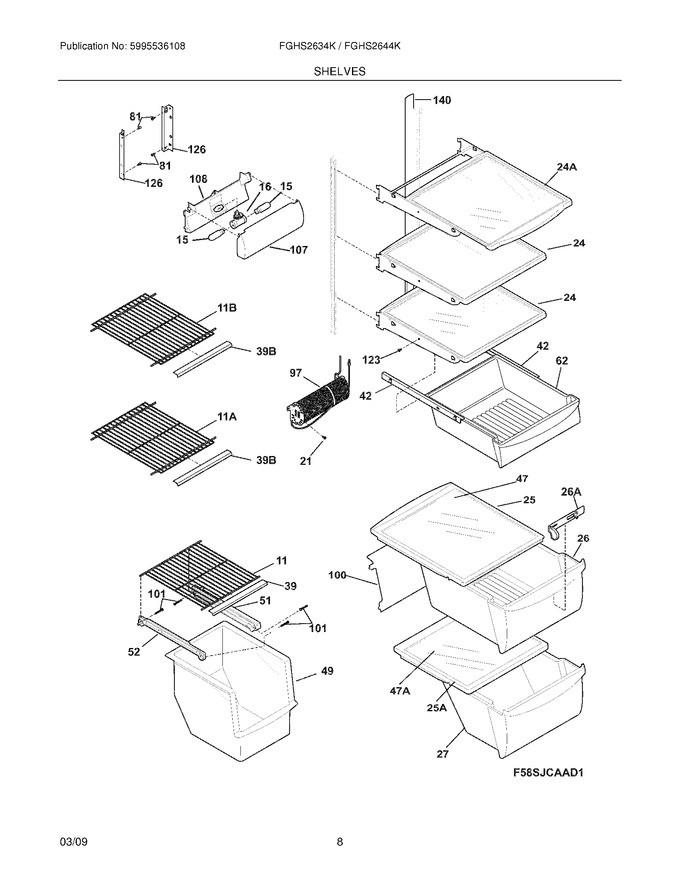

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241657602		Shelf,flip Up ,wire				$ 96.06
15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 81.18
16	241622802		Socket-light,frz Light				$ 73.25
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 16.01
24	240355270		Shelf-``spill-safe``,fixed   (Replaces: 240355256)				$ 189.59
25	240599301		Cover-crisper Pan,upper			Immediately	$ 104.87
26	240351061		Pan-crisper,upper			Immediately	$ 122.23
27	240351207		Pan-crisper,lower   (Replaces: 240351239)				$ 193.04
39	240430706		Trim-shelf,11.21`` ,front				$ 81.85
42	240356501		Track,meat Pan Hanger ,rh			Immediately	$ 63.00
42	240365401		Track,meat Pan Hanger ,lh			Immediately	$ 56.95
47	240350649		Insert-pan Cover,glass			Immediately	$ 137.66
49	240564401		Basket-sliding			Immediately	$ 176.56
51	240343002		Hanger-basket,rh				$ 72.47
52	240343102		Hanger-basket,lh				$ 77.52
62	240342830		Pan-meat				$ 95.54
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
97	242220510		Water Tank   (Replaces: 241532007)				$ 133.09
100	240326304		Cover-water Tank				$ 81.74
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 14.96
107	241753601		Shield-light,upper				$ 30.91
108	241753701		Housing-light,upper ,fresh Food				$ 22.58
123	215005101		Screw,hanger/rlr Mtg ,8-10 X 7/16				$ 16.54
126	241674401		Channel,auger Mtg ,lh				$ 52.76
126	241674402		Channel,auger Mtg ,rh				$ 48.04
140	241812502		Channel,wtr Tube Cover				$ 76.97
11A	241657512		Shelf,fixed ,freezer   (Replaces: 241657502)				$ 18.74
11B	241657514		Shelf,fixed ,upper ,freezer   (Replaces: 241657504)		Appelez-nous	-
24A	240350150		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350136)				$ 196.33
25A	240350903		Cover-crisper Pan,lower				$ 102.21
26A	240362201		Control-humidity				$ 77.18
39B	240430702		Trim-shelf,12.39`` ,front				$ 21.89
47A	240350603		Insert-pan Cover,glass			Immediately	$ 128.36
NI	240362101		Clip-slide,cover-crisper				$ 52.25
NI	241987501		Harness-wiring		Appelez-nous	-
NI	241868101		Air Guide		Appelez-nous	-
NI	241935574		Energy Guide		Appelez-nous	-
NI	241595202		Clip-slide,pan-crisper				$ 20.22
NI	240349801		Clip-slide,pan-crisper				$ 22.75
