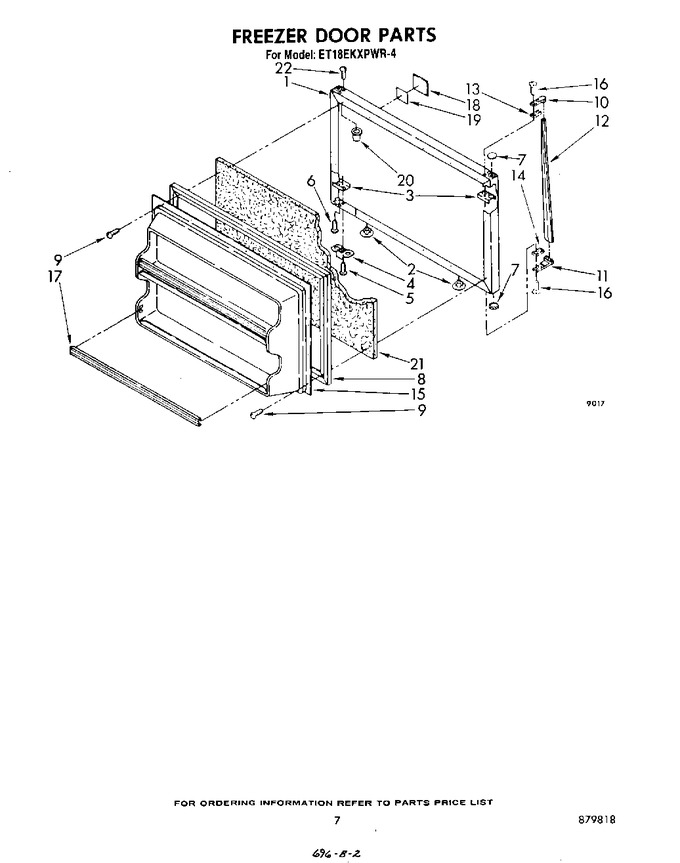

| 1 | 1104640 | Panel, Freezer Door (also Order Item 21) (white) |
|
- | |||||
| 1 | 1104646 | Panel, Freezer Door (also Order Item 21) (platinum) |
|
- | |||||
| 1 | 1104645 | Panel, Freezer Door (also Order Item 21) (toast) |
|
- | |||||
| 1 | 1104644 | Panel, Freezer Door (also Order Item 21) (almond) |
|
- | |||||
| 1 | 1104642 | Panel, Freezer Door (also Order Item 21) (golden Harvest) |
|
- | |||||
| 2 | 989879 | Hole Plug (2) (golden Harvest) |
|
- | |||||
| 2 | 1100196 | Hole Plug (2) (toast) |
|
- | |||||
| 2 | 1100197 | Hole Plug (2) (platinum) |
|
- | |||||
| 2 | 989197 | Hole Plug (2) (almond) |
|
- | |||||
| 2 | 534927 | Hole Plug (2) (white) |
|
- | |||||
| 3 | 943185 | Plate, Tap (4) |
|
- | |||||
| 4 | 944035 | Bracket, Door Stop |
|
- | |||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 6 | 488930 | Screw (repair) |
|
- | |||||
| 7 | WP2212648 | Hole Plug (golden Harvest) (Replaces: 989893) |
|
Immediately | $ 8.19 | ||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 7 | 1100188 | Hole Plug (toast) |
|
- | |||||
| 7 | 1100189 | Hole Plug (platinum) |
|
- | |||||
| 8 | 1106180 | Door Gasket, Magnetic |
|
- | |||||
| 9 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 9 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 10 | WP2191882 | Handle End, Top (Replaces: 943184) |
|
$ 62.77 | |||||
| 11 | 943182 | Handle End |
|
- | |||||
| 12 | 1105760 | Handle, Center |
|
- | |||||
| 13 | 943187 | Shim, Handle |
|
$ 25.14 | |||||
| 14 | 943188 | Spacer, Handle Door |
|
$ 7.80 | |||||
| 15 | 1100280 | Interior Door Panel |
|
- | |||||
| 16 | WP488920 | Screw, 8 X 5/8 (Replaces: 488920) |
|
$ 7.98 | |||||
| 17 | 1105795 | Trim, Door Shelf (2) |
|
- | |||||
| 18 | 1104898 | Nameplate |
|
- | |||||
| 19 | 991259 | Strip, Tape |
|
- | |||||
| 20 | 509929 | Cap, Hinge Sleeve (2) |
|
- | |||||
| 21 | 876029 | Kit, Foam Slab |
|
- | |||||
| 22 | 489112 | Screw, 6-32 X 1/2 |
|
- | |||||
| 22 | 488925 | Screw, (repair) 8-32 1/2 |
|
- |
