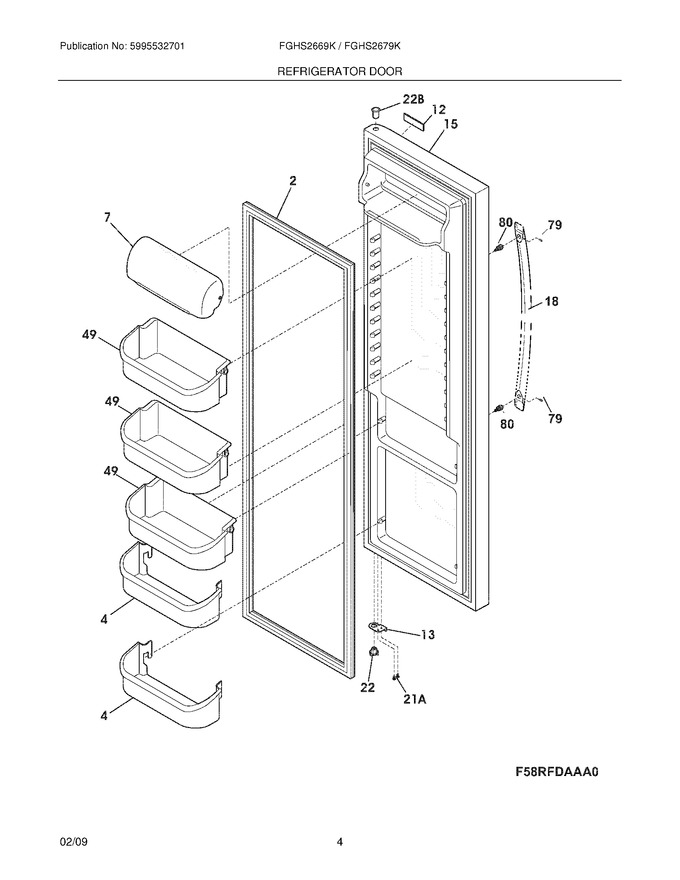

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786013		Gasket-refr Door,white ,magnetic   (Replaces: 241786001)			Immediately	$ 106.55
4	240323002		Bin-door,pseudo ,bottom			Immediately	$ 74.68
7	240326203		Door-dairy				$ 40.37
12	242015201		Label-nameplate			Immediately	$ 7.67
13	241942603		Door Stop,black ,ref				$ 22.84
15	241837264		Door-refr,white ,complete Assy				$ 316.87
18	241930101		Handle-door,white				$ 178.76
22	241990301		Bearing-hinge,gray				$ 7.88
49	240356402		Bin-door,gallon   (Replaces: 241808221)			Immediately	$ 118.70
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 36.67
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 20.67
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 9.27
22B	241760403		Bearing,hinge ,top			Immediately	$ 21.26
NI	241601002		Wrench,allen		Appelez-nous	-
NI	241780403		Liner,bin,bin				$ 28.77

    View Diagram in Separate Window       Print Part List
