SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf


06 - Freezer Door


07 - Unit


08 - Refrigerator Door , Lit/optional

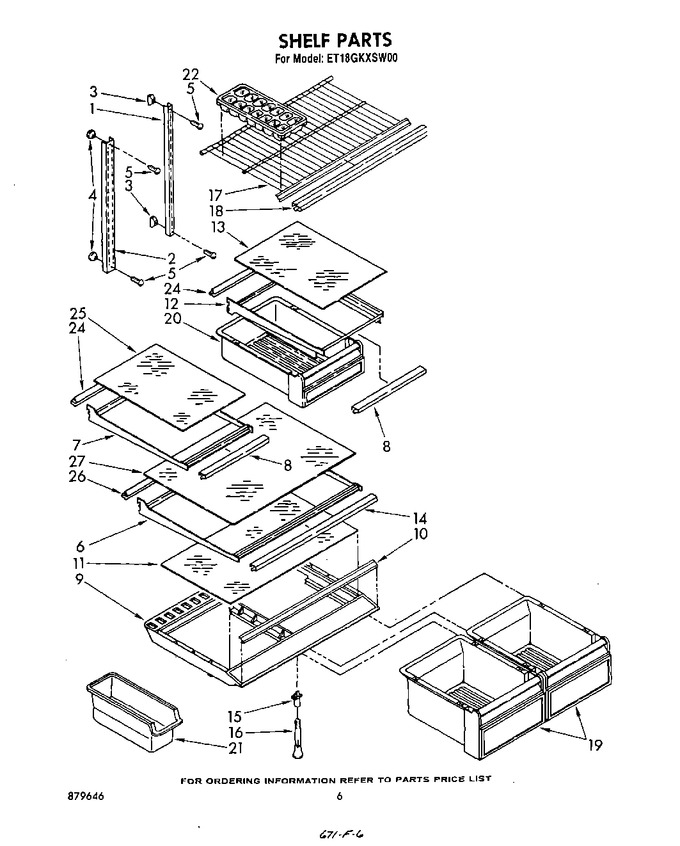

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1111807		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 31.35
4	520959		Screw, Support Center (2)		Appelez-nous	-
5	489148		Screw, 8-32 X 1-1/4 (6)		Appelez-nous	-
6	1111787		Shelf, Frame Cantilever Full		Appelez-nous	-
7	1111785		Shelf, Cantilever		Appelez-nous	-
8	1111808		Trim, Shelf		Appelez-nous	-
9	1111861		Crisper Cover		Appelez-nous	-
10	946436		Trim, Crisper Cover		Appelez-nous	-
11	1111862		Glass, Crisper Cover		Appelez-nous	-
12	1111789		Pan Shelf, Cantilever		Appelez-nous	-
13	1111864		Glass, Shelf		Appelez-nous	-
14	1111834		Trim, Shelf		Appelez-nous	-
15	1103731		Support, Crisper Cover		Appelez-nous	-
16	836410		Post, Cripser Cover				$ 5.84
17	943725		Shelf, Freezer		Appelez-nous	-
18	1111814		Trim, Shelf Front		Appelez-nous	-
19	1111863		Pan, Crisper		Appelez-nous	-
20	1111866		Pan, Meat		Appelez-nous	-
21	WP982704		Container   (Replaces: 1108734)				$ 32.55
22	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 47.84
24	1111844		Reflector, Shelf		Appelez-nous	-
25	1111922		Glass, Shelf Cantilever		Appelez-nous	-
26	1111850		Reflector, Shelf Full Cantilever		Appelez-nous	-
27	1111903		Glass, Shelf Full Cantilever		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
