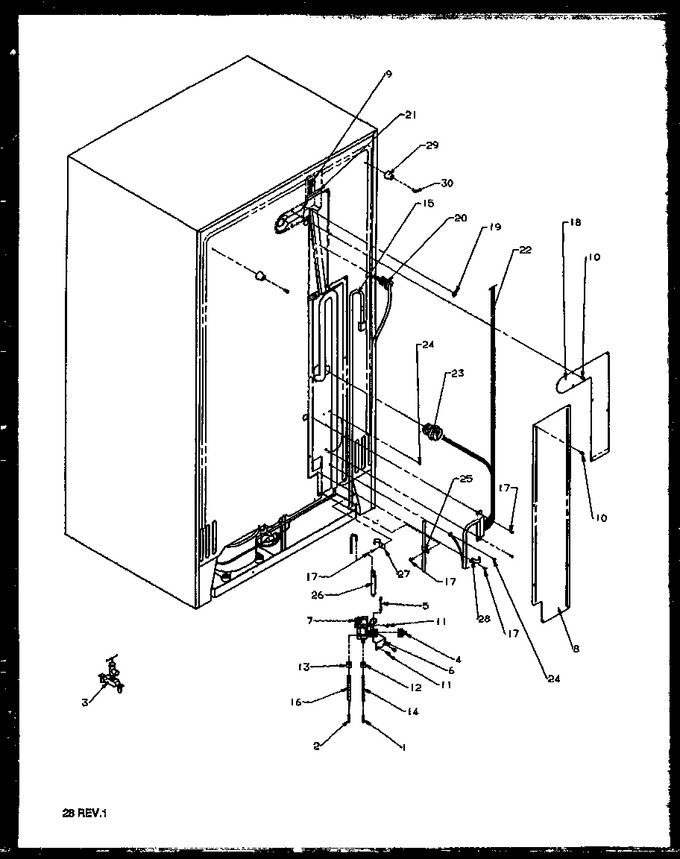

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | A1055101 | Spring, Antikink |
|
- | |||||
| 2 | A1055104 | Spring, Anti-kink |
|
- | |||||
| 3 | A3034801 | Saddle Valve |
|
- | |||||
| 4 | 10244901 | Coupling |
|
- | |||||
| 5 | B8374701 | Clip, Water Valve |
|
- | |||||
| 6 | 10496301 | Brkt, Water Val. |
|
- | |||||
| 7 | WPW10245167 | Valve, Water (Replaces: D7742204) |
|
$ 120.73 | |||||
| 8 | 10178402 | Cover, O.c.back |
|
- | |||||
| 9 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 | |||||
| 10 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 11 | 681390 | Screw (Replaces: M0251015) |
|
$ 13.71 | |||||
| 12 | WP627018 | Nut, Sleeve (Replaces: M0753001) |
|
$ 11.51 | |||||
| 13 | M0753002 | Nut, Sleeve |
|
- | |||||
| 14 | WPB5705307 | Tube, Plastic , 68`` (Replaces: B5705321) |
|
$ 13.05 | |||||
| 15 | B8310507 | Cord-power |
|
- | |||||
| 16 | D7787804 | Tank, Coil Water |
|
- | |||||
| 17 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 8.40 | ||||
| 18 | 10178504 | Cover - Wire |
|
- | |||||
| 19 | WPM0104106 | Clip,cord (Replaces: M0104101) |
|
$ 8.17 | |||||
| 20 | 10178801 | Grommet Wire |
|
- | |||||
| 21 | A3189336 | Gasket, Foam |
|
- | |||||
| 22 | 10606201 | Harness, Cabinet Wire |
|
- | |||||
| 23 | 10178701 | Grommet Wire |
|
- | |||||
| 24 | M0232317 | Screw |
|
- | |||||
| 25 | M0103903 | Clamp, Speed |
|
- | |||||
| 26 | 4007A | Drier (Replaces: B2150503) |
|
Immediately | $ 15.05 | ||||
| 27 | 10547001 | Clip, Drier |
|
- | |||||
| 28 | B5794201 | Clamp |
|
- | |||||
| 29 | C8960601 | Foot, Outer Case |
|
- | |||||
| 30 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 | ||||
| NI | WPA3223101 | Insert, Plastic Tube (Replaces: A3223101) |
|
Immediately | $ 8.21 |
