02 - Cabinet
03 - Liner
04 - Compartment Separator
05 - Shelf
06 - Freezer Door
07 - Unit
08 - Refrigerator Door
09 - Ice Maker , Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

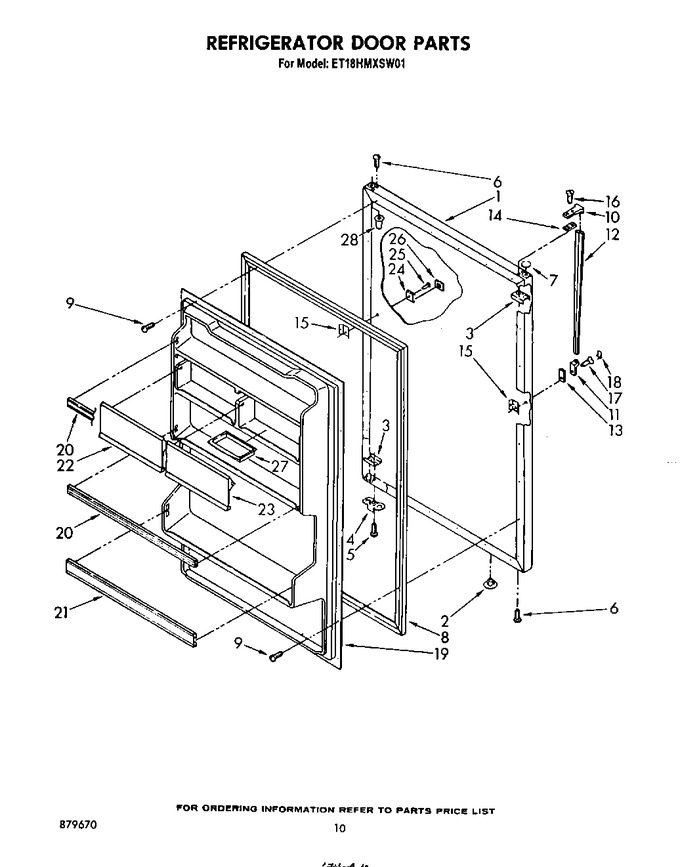

| 1 | 1104637 | Panel, Refrigerator Door (toast) |
|
- | |||||
| 1 | 1104638 | Panel, Refrigerator Door (platinum) |
|
- | |||||
| 1 | 1104632 | Panel, Refrigerator Door (white) |
|
- | |||||
| 1 | 1104634 | Panel, Refrigerator Door (golden Harvest) |
|
- | |||||
| 1 | 1104636 | Panel, Refrigerator Door (almond) |
|
- | |||||
| 2 | 534927 | Hole Plug (2) |
|
- | |||||
| 3 | 943185 | Plate, Tap (4) |
|
- | |||||
| 4 | 944036 | Bracket, Door Stop |
|
- | |||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 6 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 | |||||
| 6 | 488930 | Screw (repair) |
|
- | |||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 7 | 1100189 | Hole Plug (platinum) |
|
- | |||||
| 7 | 1100188 | Hole Plug (toast) |
|
- | |||||
| 7 | WP2212648 | Hole Plug (golden Harvest) (Replaces: 989893) |
|
Immediately | $ 8.19 | ||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 8 | 1109186 | Door Gasket, Magnetic |
|
- | |||||
| 9 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 9 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 10 | 943182 | Handle End |
|
- | |||||
| 11 | WP2183139 | Handle End Cap (Replaces: 1101632) |
|
Immediately | $ 51.98 | ||||
| 12 | 1109166 | Handle Center (for Platinum Model Only) |
|
- | |||||
| 12 | 1106189 | Handle, Center |
|
- | |||||
| 13 | 992872 | Shim, Handle End (side) |
|
- | |||||
| 14 | 943188 | Spacer, Handle Door |
|
$ 7.80 | |||||
| 15 | WP939101 | Screw Anchor (2) (Replaces: 939101) |
|
$ 7.88 | |||||
| 16 | WP488920 | Screw, 8 X 5/8 (2) (Replaces: 488920) |
|
$ 7.98 | |||||
| 17 | WP488729 | Screw, 8 X 1/2 (Replaces: 487875) |
|
Immediately | $ 8.28 | ||||
| 18 | WP1101634 | Screw, Cover (Replaces: 1101634) |
|
$ 9.68 | |||||
| 19 | 1111825 | Interior Door Panel |
|
- | |||||
| 20 | 946986 | Trim, Door (2) |
|
- | |||||
| 21 | 946989 | Trim, Door |
|
- | |||||
| 22 | 1111872 | Compartment Door, Utility |
|
- | |||||
| 23 | 1111871 | Compartment, Butter Door |
|
- | |||||
| 24 | 1107329 | Clip, Medallion |
|
- | |||||
| 25 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 26 | 1111705 | Medallion |
|
- | |||||
| 27 | 520747 | Tray, Butter |
|
- | |||||
| 28 | 509929 | Cap, Hinge Sleeve (2) |
|
- |
