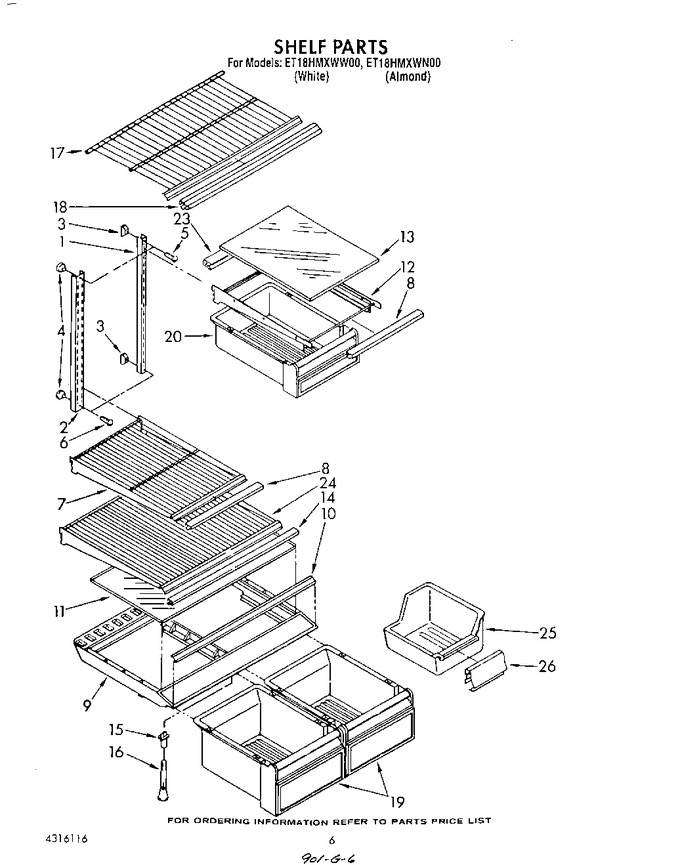

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1111807		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 31.35
4	520959		Screw, Support Center (2)		Appelez-nous	-
5	WP488163		Screw, 8-32 X 1-1/4 (3)   (Replaces: 488163)				$ 7.92
6	WP488163		Screw, 8 X 1 (3)   (Replaces: 488163)				$ 7.92
7	1111778		Shelf, Cantilever		Appelez-nous	-
8	1111808		Trim, Shelf		Appelez-nous	-
9	2150111		Crisper Cover		Appelez-nous	-
10	946436		Trim, Crisper Cover		Appelez-nous	-
11	1111829		Glass, Crisper Cover		Appelez-nous	-
12	1111774		Pan Shelf, Cantilever		Appelez-nous	-
13	1111831		Glass, Shelf		Appelez-nous	-
14	1111834		Trim, Shelf		Appelez-nous	-
15	1103732		Support, Crisper Cover		Appelez-nous	-
16	836410		Post, Cripser Cover				$ 5.84
17	944734		Shelf, Freezer		Appelez-nous	-
18	1111814		Trim, Shelf Front		Appelez-nous	-
19	2150112		Pan, Crisper		Appelez-nous	-
20	2150113		Pan, Meat		Appelez-nous	-
23	1111844		Reflector, Shelf		Appelez-nous	-
24	1120766		Shelf, Full Cantilever		Appelez-nous	-
25	838530		Pan-ice Cube		Appelez-nous	-
26	654218		Trim		Appelez-nous	-
