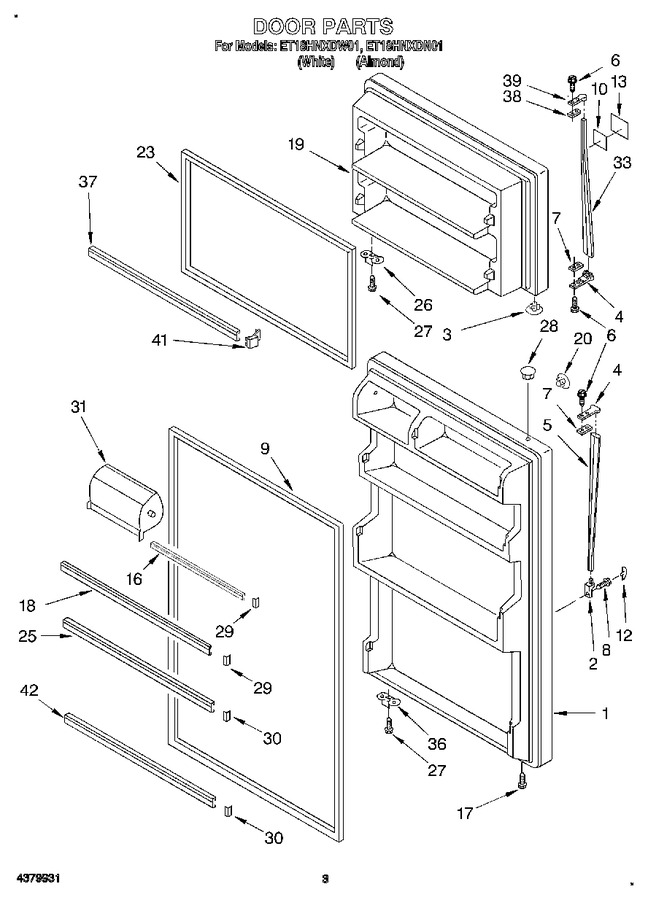

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171269		Refrigerator Door Panel (white)		Appelez-nous	-
1	2171270		Refrigerator Door Panel (almond)		Appelez-nous	-
2	819342		End Cap (almond)   (Replaces: 9791774)			Immediately	$ 47.96
2	819342		End Cap (white)   (Replaces: 9791773)			Immediately	$ 47.96
3	534927		Hole Plug (2) (white)		Appelez-nous	-
3	989197		Hole Plug (2) (almond)		Appelez-nous	-
4	819342		End Cap, Handle (2) (white)   (Replaces: 9791771)			Immediately	$ 47.96
4	819342		End Cap, Handle (2) (almond)   (Replaces: 9791772)			Immediately	$ 47.96
5	WP2162555		Handle, Center (white)   (Replaces: 2148035)			Immediately	$ 157.62
5	2148036		Handle, Center (almond)		Appelez-nous	-
6	WP488920		Screw   (Replaces: 489006)				$ 7.98
7	943188		Spacer				$ 7.80
8	WP488729		Screw   (Replaces: 487909)			Immediately	$ 8.28
9	2159057		Door Gasket, Magnetic (mist Beige)			Immediately	$ 164.66
10	991259		Tape		Appelez-nous	-
12	9791770		Cover, Screw (almond)		Appelez-nous	-
12	9791769		Cover, Screw (white)				$ 5.70
13	2162782		Nameplate (almond Model)		Appelez-nous	-
13	2162781		Nameplate (white Model)		Appelez-nous	-
16	WP2201061		Trim, Door Shelf   (Replaces: 2171040)				$ 124.32
17	WP8281206		Screw   (Replaces: 489028)				$ 8.37
18	WP2201061		Trim, Door   (Replaces: 2171142)				$ 124.32
19	2159271		Freezer Door Panel (almond)		Appelez-nous	-
19	2159270		Freezer Door Panel (white)		Appelez-nous	-
20	WP2189000		Hole Plug (white)   (Replaces: 1122653)			Immediately	$ 7.77
20	1122654		Hole Plug (almond)		Appelez-nous	-
23	2159327		Door Gasket, Magnetic (mist Beige)			Immediately	$ 164.58
25	2171140		Trim, Door Shelf		Appelez-nous	-
26	2159367		Bracket, Door Stop		Appelez-nous	-
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
28	989196		Hole Plug (almond)		Appelez-nous	-
28	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
29	WP2156007		Plug-trim (4)   (Replaces: 2156007)			Immediately	$ 8.03
30	WP2156006		Plug-trim (4)   (Replaces: 2156006)			Immediately	$ 12.79
31	WP2218113		Door, Compartment   (Replaces: 2170950)			Immediately	$ 50.33
33	2171044		Handle, F.c. (almond)		Appelez-nous	-
33	WP2162555		Handle, F.c. (white)   (Replaces: 2171043)			Immediately	$ 157.62
36	2159368		Bracket, Door Stop (white And Almond Models)		Appelez-nous	-
37	WP2201061		Trim-door (2)   (Replaces: 2171144)				$ 124.32
38	943187		Shim				$ 25.14
39	819342		Handle End (white)   (Replaces: 9791776)			Immediately	$ 47.96
39	819342		Handle End (almond)   (Replaces: 9791777)			Immediately	$ 47.96
41	WP2156003		Endcap (4)   (Replaces: 2156003)			Immediately	$ 13.25
42	2171141		Trim, Door		Appelez-nous	-
