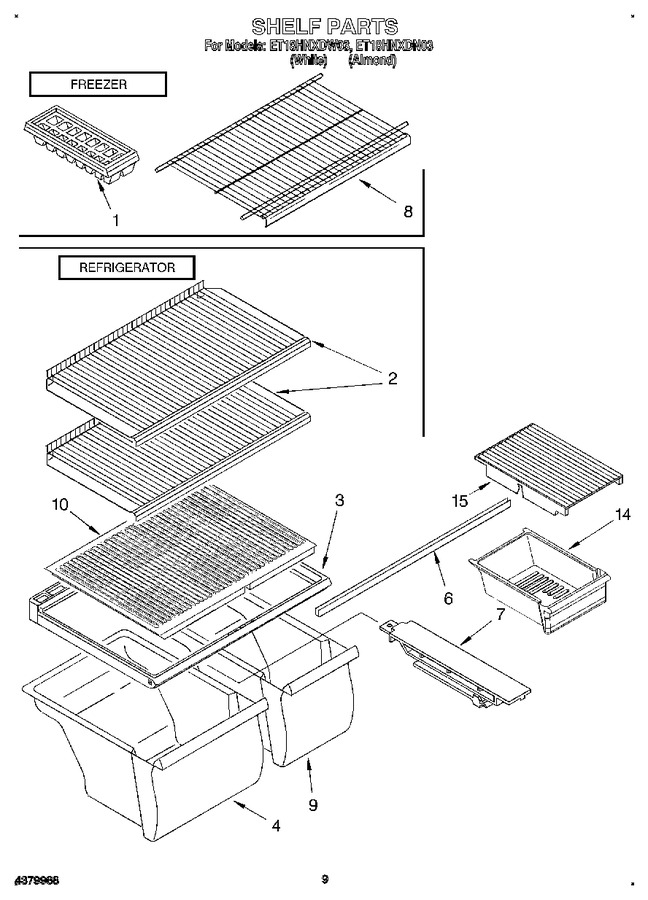

SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
2	2166147		Shelf (2)		Appelez-nous	-
3	WP2314548		Cover, Crisper   (Replaces: 2174664)				$ 259.83
4	W10854037		Pan, Crisper   (Replaces: 2170954)			Immediately	$ 179.19
6	WP2172748		Support, Crisper Cover   (Replaces: 2172541)				$ 102.08
7	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 36.48
8	WP2176275		Shelf   (Replaces: 2176275)				$ 123.40
9	W10856580		Pan, Crisper   (Replaces: 2170955)			Immediately	$ 177.03
10	2166149		Insert				$ 77.25
14	WP2218127K		Pan, Meat   (Replaces: 2170956)				$ 146.80
15	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
15	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
15	833938		Kit, Terminal Connector				$ 8.47
15	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
15	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
15	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
15	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
15	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
15	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
15	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
15	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
15	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
15	2172516		Door Reversal Instructions		Appelez-nous	-
15	350942		Primer White (13 Oz. Spray Can)				$ 94.14
15	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
15	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
15	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
15	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
15	2163848		Cover, Meat Pan				$ 71.41
15	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
15	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
15	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
15	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
15	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
15	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
15	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT677971		Do-it-yourself Manual, Icemaker		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT2180402		Use & Care Guide		Appelez-nous	-
	LIT2182501		Energy Label		Appelez-nous	-
	LIT2172667		Service & Wiring Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
