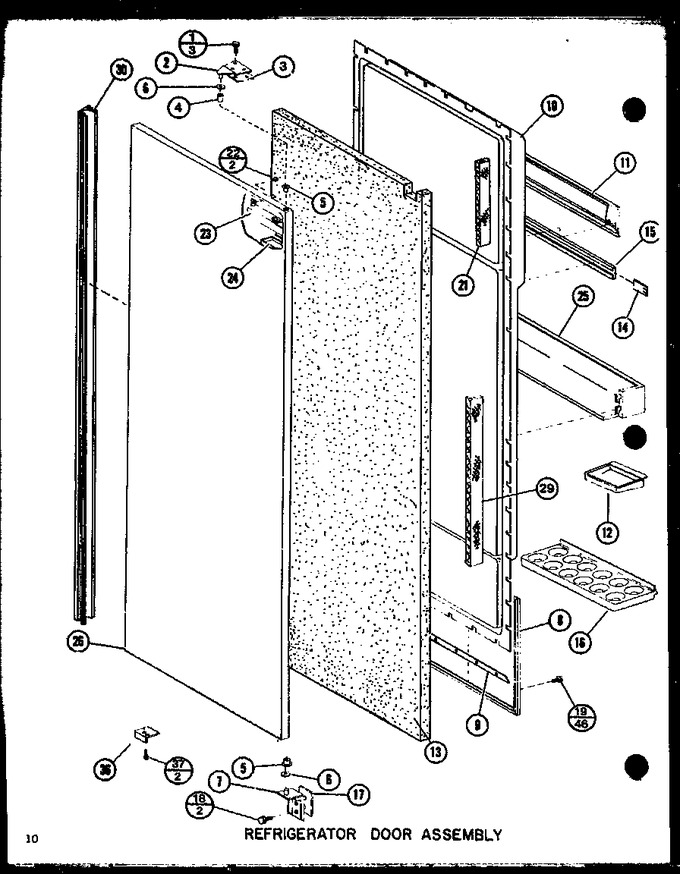

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
2	C8816602		Hinge-right		Appelez-nous	-
3	A3270303		Shim Kit		Appelez-nous	-
4	A3132401		Bushing		Appelez-nous	-
5	C8852202		Bearing, Hinge		Appelez-nous	-
5	C8852201		Bearing-hinge		Appelez-nous	-
6	M0274013		Washer K		Appelez-nous	-
6	M0274014		Washer K		Appelez-nous	-
7	D7250103		Hinge		Appelez-nous	-
8	D7092608		Gasket, Door		Appelez-nous	-
9	D7025101		Retainer		Appelez-nous	-
9	D7025102		Retainer Gasket		Appelez-nous	-
10	D7698601		Inner Dr Panel-ref		Appelez-nous	-
11	D7511308		Door Dairy		Appelez-nous	-
12	D3799802		Butter Tray		Appelez-nous	-
13	B5683518		Insulation, Batt		Appelez-nous	-
14	B0530006		Support K		Appelez-nous	-
15	B8302618		Retainer Egg Tray		Appelez-nous	-
16	D7466605		Egg Tray		Appelez-nous	-
17	A3143602		Shim		Appelez-nous	-
17	A3143603		Shim		Appelez-nous	-
18	M0246258		Screw		Appelez-nous	-
19	M0219717		Screw		Appelez-nous	-
21	876370		Insulation, Batt   (Replaces: B0523561)				$ 243.14
22	M1252001		Screw		Appelez-nous	-
23	D7022901		Door Closure		Appelez-nous	-
24	B5644001		Cover		Appelez-nous	-
25	D7511404		Shelf, Door		Appelez-nous	-
26	D7624724		Door Ref		Appelez-nous	-
26	D7624723		Door Ref		Appelez-nous	-
29	A3081001		Insulation		Appelez-nous	-
30	D7573707		Door Handle		Appelez-nous	-
36	A3139801		Stop Door		Appelez-nous	-
37	8169479		Screw   (Replaces: M0215318)				$ 7.30
