SELECT A DIAGRAM

01 - Cabinet


02 - Freezer Door


03 - Shelf


04 - Refrigerator Door


05 - Liner


06 - Unit, Lit/optional

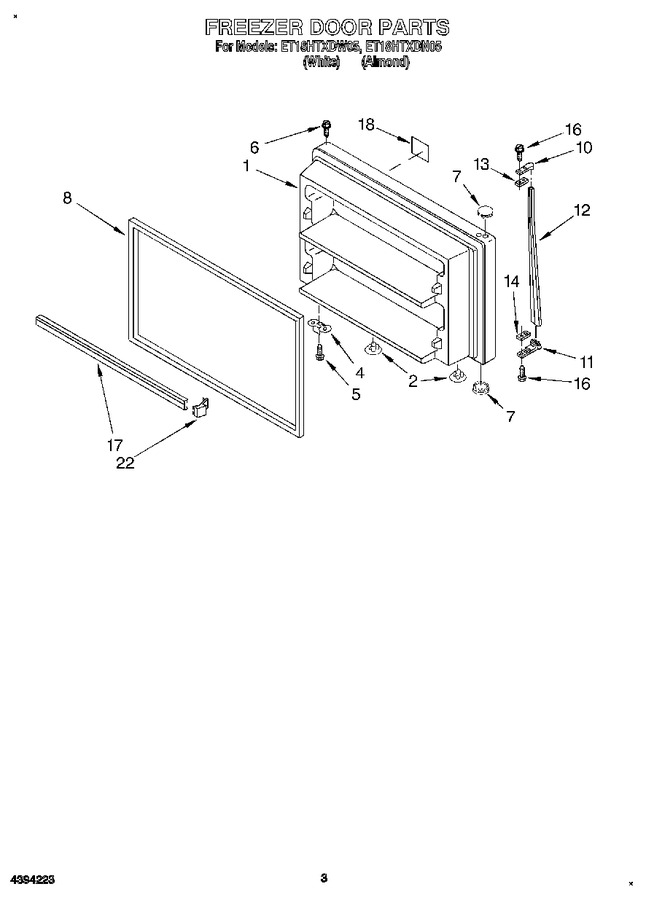

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2159270		Door, Freezer (includes Item 8) (white)		Appelez-nous	-
1	2159271		Door, Freezer (includes Item 8) (almond)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
4	2159367		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
8	2159327		Door Gasket, Magnetic			Immediately	$ 164.58
10	819342		Handle End, Top (almond)   (Replaces: 9791777)			Immediately	$ 47.96
10	819342		Handle End, Top (white)   (Replaces: 9791776)			Immediately	$ 47.96
11	819342		Handle End (almond)   (Replaces: 9791772)			Immediately	$ 47.96
11	819342		Handle End (white)   (Replaces: 9791771)			Immediately	$ 47.96
12	2171044		Handle, Center (almond)		Appelez-nous	-
12	WP2162555		Handle, Center (white)   (Replaces: 2171043)			Immediately	$ 157.62
13	943187		Shim, Handle				$ 25.14
14	943188		Spacer, Handle Door Panel				$ 7.80
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	2171037		Trim, Door Shelf (2)		Appelez-nous	-
18	2162781		Nameplate (white Model)		Appelez-nous	-
18	2162782		Nameplate (almond Model)		Appelez-nous	-
22	WP2195916K		Endcap, Trim (4)   (Replaces: 2156002)			Immediately	$ 13.18

    View Diagram in Separate Window       Print Part List
