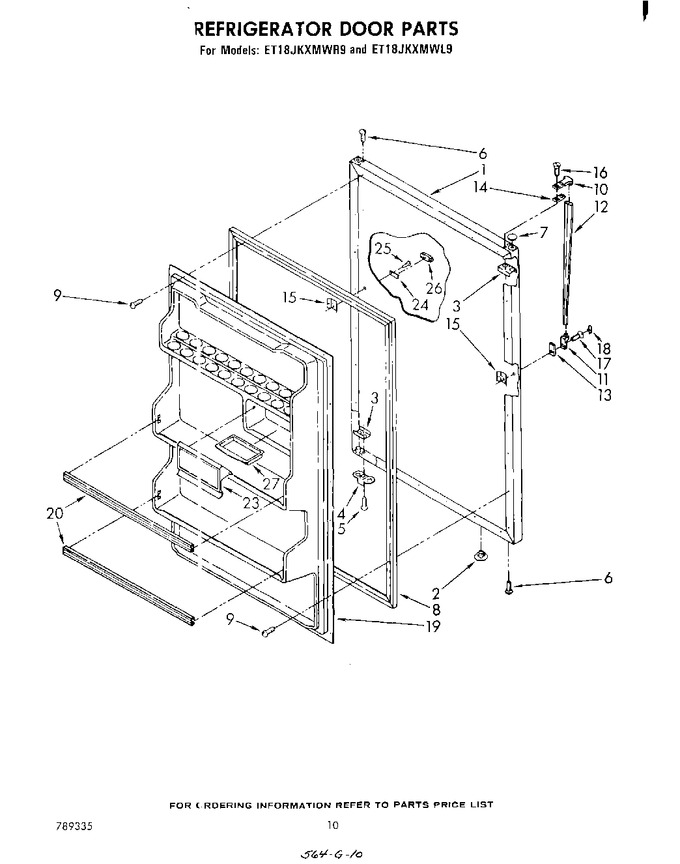

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1104633		Panel, Refrigerator Door (coffee)		Appelez-nous	-
1	1104634		Panel, Refrigerator Door (golden Harvest)		Appelez-nous	-
1	1104636		Panel, Refrigerator Door (almond)		Appelez-nous	-
1	1104637		Panel, Refrigerator Door (toast)		Appelez-nous	-
1	1104638		Panel, Refrigerator Door (platinum)		Appelez-nous	-
1	1104632		Panel, Refrigerator Door (white)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944036		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
6	488930		Screw (repair)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	1100189		Hole Plug (platinum)		Appelez-nous	-
7	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 8.19
7	989892		Hole Plug (coffee)		Appelez-nous	-
7	989196		Hole Plug (almond)		Appelez-nous	-
7	1100188		Hole Plug (toast)		Appelez-nous	-
8	946991		Door Gasket, Magnetic		Appelez-nous	-
8	946993		Door Gasket, Magnetic (for Platinum Model Only)		Appelez-nous	-
9	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
10	943182		Handle End (for Platinum Model Only)		Appelez-nous	-
10	819342		Handle, End   (Replaces: 1101861)			Immediately	$ 47.96
11	WP2183139		Handle End Side (for Platinum Model Only)   (Replaces: 983542)			Immediately	$ 51.98
11	819342		Handle End, Side   (Replaces: 1101862)			Immediately	$ 47.96
12	982946		Handle, Center		Appelez-nous	-
12	1104738		Handle, Center (for Platinum Model Only)		Appelez-nous	-
13	992872		Shim, Handle End (side)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
16	WP488920		Screw, 8 X 5/8 (2)   (Replaces: 488920)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487875)			Immediately	$ 8.28
18	WP1101634		Screw Cover (for Platinum Model Only)   (Replaces: 981182)				$ 9.68
18	WP1101634		Screw Cover   (Replaces: 1101864)				$ 9.68
19	945886		Interior Door Panel (for Platinum Model Only)		Appelez-nous	-
19	946827		Interior Door Panel		Appelez-nous	-
20	946819		Trim, Door (2)		Appelez-nous	-
23	946998		Compartment Door, Butter		Appelez-nous	-
24	843213		Clip, Medallion		Appelez-nous	-
25	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
26	989904		Medallion (almond)		Appelez-nous	-
26	989903		Medallion (golden Harvest)		Appelez-nous	-
26	1100194		Medallion (toast)		Appelez-nous	-
26	1100195		Medallion (platinum)		Appelez-nous	-
26	848382		Medallion (white)		Appelez-nous	-
26	989901		Medallion (coffee)		Appelez-nous	-
27	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
27	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
27	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
27	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
27	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
27	261891		Enamel, Gold (1 Qt. Uncut)		Appelez-nous	-
27	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
27	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
27	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
27	833938		Kit, Terminal Connector				$ 8.47
27	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
27	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
27	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
27	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
27	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
27	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
27	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
27	520747		Tray, Butter		Appelez-nous	-
27	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
27	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
27	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
27	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
27	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
27	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
27	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
27	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
27	799908		Silicone (spray)		Appelez-nous	-
27	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
27	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
27	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	677971		Ice Maker		Appelez-nous	-
	LIT1101603		Energy Guide		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	261890		Xenamel, Gold (13 Oz. Spray Can)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	677967		Dishwasher		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	677821		Compactor				$ 35.01
	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
	677813		Automatic Washer (belt Drive)		Appelez-nous	-
	LIT789335		List, Repair Parts		Appelez-nous	-
	LIT946415		Care & Use Guide		Appelez-nous	-
	LIT1105320		Service & Wiring Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
