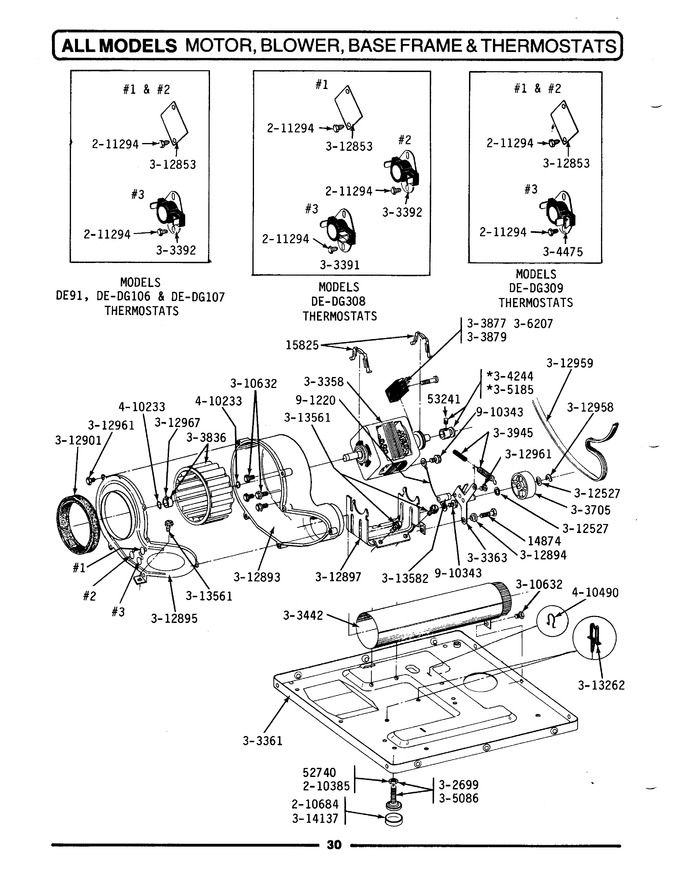

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WPY014874 | Screw (Replaces: Y014874) | 00 |
|
$ 7.75 | ||||
| 002 | WPY015825 | Clip, Motor (Replaces: Y015825) | 00 |
|
$ 23.37 | ||||
| 003 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 7.61 | ||||
| 004 | Y053241 | Set Screw, Pulley | 00 |
|
- | ||||
| 005 | WP210385 | Nut, Lock (Replaces: 210385) | 00 |
|
$ 6.95 | ||||
| 006 | WP210684 | Foot, Rubber (Replaces: 210684) | 00 |
|
Immediately | $ 15.66 | |||
| 007 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.82 | |||
| 008 | 22003428 | Leg, Adjustable (w/nut)---s (Replaces: Y302699) | 00 |
|
Immediately | $ 16.01 | |||
| 009 | W10410999 | Motor (Replaces: Y303358) | 00 |
|
Immediately | $ 184.78 | |||
| 010 | Y303361 | Base Assy. | 00 |
|
- | ||||
| 011 | WP6-3033630 | Idler Arm & Shaft Assy. (Replaces: Y303363) | 00 |
|
Immediately | $ 76.03 | |||
| 012 | WP694674 | Cycling Thermostat 140 Deg. (Replaces: 303392) | 00 |
|
Immediately | $ 50.51 | |||
| 013 | Y303442 | Exhaust Duct Assy. | 00 |
|
- | ||||
| 014 | WP6-3037050 | Pulley, Idler (Replaces: Y303705) | 00 |
|
Immediately | $ 22.10 | |||
| 015 | Y303836 | Blower Wheel Assembly & Clamp | 00 |
|
Immediately | $ 35.94 | |||
| 016 | Y303877 | Switch, Motor Start Prod. No.3-3358-2, No.3-3358-4 & | 00 |
|
- | ||||
| 017 | Y303879 | Switch, Motor Start Prod. No.3-3358 & No.3-3358-6 | 00 |
|
- | ||||
| 018 | Y303945 | Idler Spring Assembly | 00 |
|
- | ||||
| 019 | WP6-3042440 | Motor Pulley With Set Screw (Replaces: Y304244) | 00 |
|
$ 60.64 | ||||
| 020 | WP233550 | Adjustable Leg & Nut (Replaces: Y305086) | 00 |
|
$ 7.95 | ||||
| 021 | Y305185 | Pulley, Motor (w/set Screw) | 02 |
|
- | ||||
| 022 | 306207 | Prod. No.3-3358-8 |
|
- | |||||
| 022 | NLA | Switch, Motor Start | 00 |
|
- | ||||
| 023 | Y310632 | Screw | 00 |
|
- | ||||
| 024 | WPY312527 | Washer, Idler Shaft (qty-1) (Replaces: Y312527) | 00 |
|
Immediately | $ 11.12 | |||
| 025 | Y312853 | Cover For Thermostat Openin | 00 |
|
- | ||||
| 026 | Y312893 | Housing, Blower | 00 |
|
$ 55.67 | ||||
| 027 | WP315772 | Sleeve, Idler Arm ----s (Replaces: Y312894) | 00 |
|
$ 11.54 | ||||
| 028 | Y312895 | Cover For Blower----na | 00 |
|
- | ||||
| 029 | NLA | Support, Motor | 00 |
|
- | ||||
| 030 | WPY312901 | Seal, Blower (Replaces: Y312901) | 00 |
|
$ 67.44 | ||||
| 031 | WP354987 | Retaining Ring, Idler Shaft (Replaces: 312958) | 00 |
|
Immediately | $ 11.75 | |||
| 032 | WPY312959 | Belt, Tumbler & Motor (Replaces: Y312959) | 00 |
|
Immediately | $ 34.07 | |||
| 033 | WPW10116751 | Screw (Replaces: Y312961) | 00 |
|
$ 7.49 | ||||
| 034 | WP312967 | Clamp, Blower Housing (Replaces: 312967) | 00 |
|
Immediately | $ 11.87 | |||
| 035 | Y313262 | Retainer, Wire Harness | 00 |
|
- | ||||
| 036 | Y313561 | Screw----na | 00 |
|
$ 5.27 | ||||
| 037 | WPW10116756 | Spacer, Idler Bracket (Replaces: Y313582) | 00 |
|
$ 48.56 | ||||
| 038 | Y314137 | Foot, Rubber | 00 |
|
$ 14.08 | ||||
| 039 | WP9703438 | Ring, Retaining (Replaces: 410233) | 00 |
|
Immediately | $ 4.23 | |||
| 040 | 410490 | Spring, Wire Harness | 00 |
|
- | ||||
| 041 | 901220 | Wire, Ground | 00 |
|
- | ||||
| 042 | WP488234 | Screw, Ground Wire (Replaces: 910343) | 00 |
|
$ 6.74 |
