SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf


06 - Freezer Door


07 - Unit

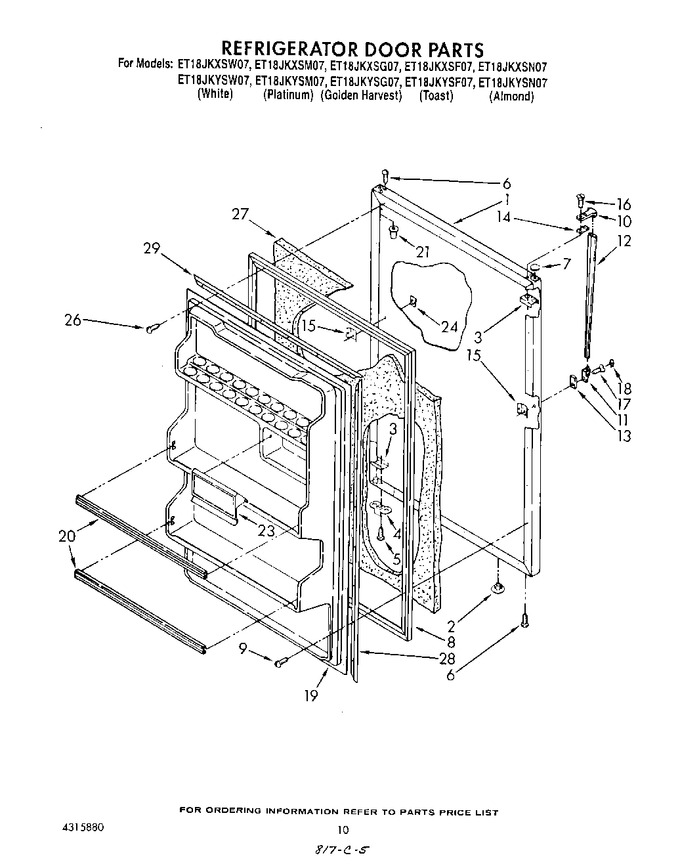

08 - Refrigerator Door , Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1104634		Panel, Refrigerator Door (also Order Item 27) (golden Harvest)		Appelez-nous	-
1	1104632		Panel, Refrigerator Door (also Order Item 27) (white)		Appelez-nous	-
1	1104636		Panel, Refrigerator Door (also Order Item 27) (almond)		Appelez-nous	-
1	1104637		Panel, Refrigerator Door (also Order Item 27) (toast)		Appelez-nous	-
1	1104638		Panel, Refrigerator Door (also Order Item 27) (platinum)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	1115910		Bracket, Door Stop		Appelez-nous	-
5	489221		Screw (repair)		Appelez-nous	-
5	WP488921		Screw   (Replaces: 489220)			Immediately	$ 7.75
6	489221		Screw (repair)		Appelez-nous	-
6	WP488921		Screw   (Replaces: 489224)			Immediately	$ 7.75
7	1100188		Hole Plug (toast)		Appelez-nous	-
7	1100189		Hole Plug (platinum)		Appelez-nous	-
7	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 7.80
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.80
8	1122827		Door Gasket, Magnetic		Appelez-nous	-
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 7.67
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
10	819342		Handle, End   (Replaces: 1101861)			Immediately	$ 47.96
10	819342		Handle End (for Platinum Model Only)   (Replaces: 1108952)			Immediately	$ 47.96
11	819342		Handle End, Side (for Platinum Model Only)   (Replaces: 1110056)			Immediately	$ 47.96
11	819342		Handle End, Side   (Replaces: 1110055)			Immediately	$ 47.96
12	1109166		Handle Center (for Platinum Model Only)		Appelez-nous	-
12	1106189		Handle, Center		Appelez-nous	-
13	992872		Shim, Handle End (side)		Appelez-nous	-
14	943188		Spacer, Handle Door				$ 7.80
15	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.50
16	489250		Screw (repair)		Appelez-nous	-
16	WP488920		Screw   (Replaces: 489219)				$ 7.49
17	WP488729		Screw   (Replaces: 489222)			Immediately	$ 7.79
18	WP1101634		Screw Cover   (Replaces: 1110059)				$ 9.22
19	1120630		Interior Door Panel		Appelez-nous	-
20	1116062		Trim, Door (2)		Appelez-nous	-
21	509929		Cap, Hinge Sleeve (2)		Appelez-nous	-
23	1110148		Compartment, Butter Door		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 7.40
24	1122695		Hole Plug, Handle (toast)		Appelez-nous	-
24	1122696		Hole Plug, Handle (platinum)		Appelez-nous	-
24	1122694		Hole Plug, Handle (golden Harvest)		Appelez-nous	-
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
26	WP488729		Corner Screw (8)   (Replaces: 489287)			Immediately	$ 7.79
27	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
28	1120615		Gasket Retainer, Side (2)		Appelez-nous	-
29	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
29	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
29	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
29	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
29	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
29	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
29	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
29	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
29	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
29	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
29	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
29	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
29	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
29	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
29	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
29	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
29	833938		Kit, Terminal Connector				$ 8.07
29	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
29	1120616		Gasket Retainer, Top & Bottom (2)		Appelez-nous	-
29	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
29	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
29	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
29	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
29	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
29	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
29	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	1129316		Eckmf90			Immediately	$ 142.01
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 89.66
	LIT4315880		Parts List		Appelez-nous	-
	LIT1120604		Care & Use Guide		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
	LIT1127667		Service & Wiring Sheet		Appelez-nous	-
	LIT1124890		Energy Label		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
