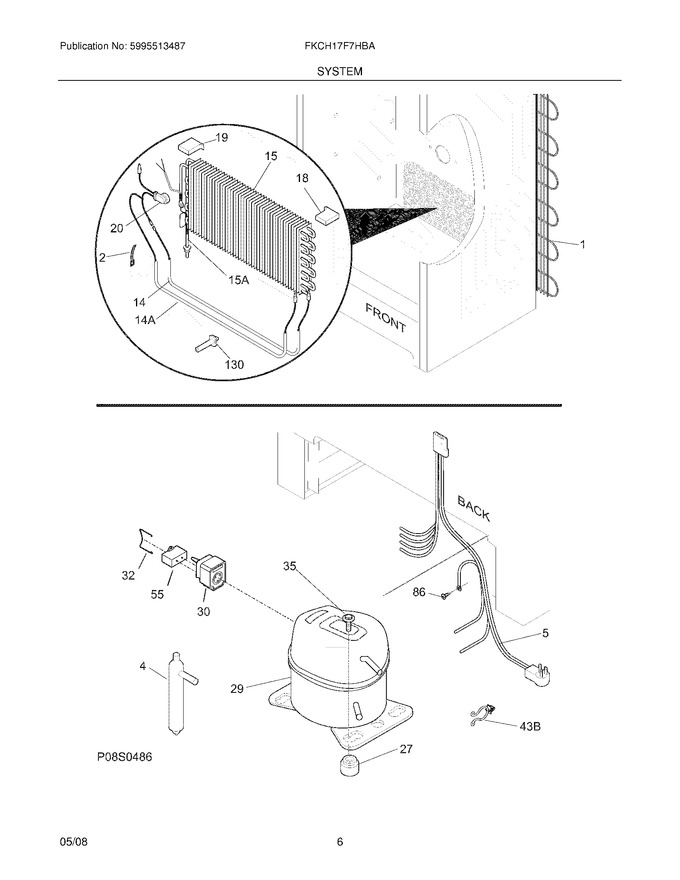

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 66.47 | ||||
| 14 | 216730700 | Heater-defrost |
|
Immediately | $ 129.38 | ||||
| 18 | 297078700 | Insulator-evap,styrofoam |
|
$ 8.14 | |||||
| 19 | 297078800 | Insulator-evap,styrofoam |
|
$ 2.32 | |||||
| 20 | 216731001 | Thermostat, Defrost |
|
Immediately | $ 93.84 | ||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 14.46 | |||||
| 30 | 297237702 | Controller,compressor (Replaces: 297237800) |
|
$ 117.62 | |||||
| 32 | 297030500 | Clip,controller |
|
Immediately | $ 13.39 | ||||
| 35 | 297177200 | Bolt,compressor |
|
- | |||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 15.17 | |||||
| 130 | 297244700 | Support,evaporator Mtg |
|
$ 4.73 | |||||
| 15A | 297238700 | Heat Exchanger |
|
$ 95.81 | |||||
| 43B | 297315800 | Clip (Replaces: 297048400) |
|
$ 11.25 | |||||
| F1 | 5300083897 | Condenser |
|
$ 598.19 | |||||
| F14A | 216730500 | Heater-internal |
|
- | |||||
| F15 | 297414901 | Evaporator (Replaces: 216997300) |
|
Immediately | $ 190.38 | ||||
| F29 | 5304478809 | Compressor,w/o Electricals (Replaces: 297237400) |
|
Immediately | $ 649.95 | ||||
| F4 | 5303305677 | Drier-filter (Replaces: 216938600) |
|
Immediately | $ 35.19 | ||||
| F5 | 297244300 | Harness-main |
|
$ 196.14 | |||||
| F55 | 218909912 | Capacitor-run,220 Vac ,12 Microfarad |
|
Immediately | $ 83.06 | ||||
| FNI | 297366805 | Cord-power,flat (Replaces: 297169900) |
|
$ 76.31 | |||||
| NI | 216695300 | Relay |
|
$ 86.63 | |||||
| NI | 216502500 | Sleeve,suction Line |
|
$ 12.05 | |||||
| NI | 216683900 | Thermostat,service Part |
|
$ 61.62 | |||||
| NI | 240555002 | Screw-no.8-32 X 3/8 |
|
Immediately | $ 14.96 |
