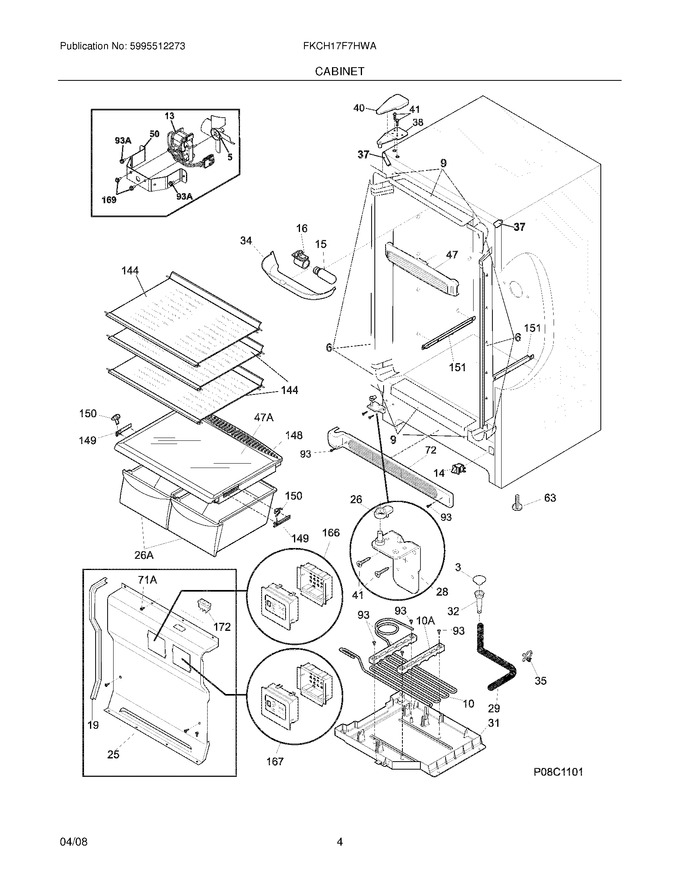

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216503100 | Screen-drain |
|
$ 69.08 | |||||
| 6 | 297200600 | Breaker Kit W/corners,no Lock Slot |
|
$ 52.36 | |||||
| 9 | 297200100 | Breaker Kit W/corners,32`` ,top And Bottom |
|
$ 65.87 | |||||
| 14 | 216822900 | Switch,light/lamp ,ramp (Replaces: 216998000) |
|
Immediately | $ 77.96 | ||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216846400) |
|
Immediately | $ 81.18 | ||||
| 16 | 297139501 | Socket,light/lamp ,25 W (Replaces: 216817600) |
|
$ 21.69 | |||||
| 19 | 216204900 | Gasket, Evap Cover |
|
$ 51.45 | |||||
| 25 | 297098853 | Cover-evaporator |
|
$ 91.93 | |||||
| 26 | 297248200 | Ramp,door Closer ,lh |
|
$ 12.77 | |||||
| 28 | 297240801 | Hinge-bottom,stepped Pin ,lh |
|
- | |||||
| 29 | 5304512272 | Hose-drain (Replaces: 216313501) |
|
Immediately | $ 17.67 | ||||
| 31 | 297165800 | Pan-drain |
|
$ 99.06 | |||||
| 32 | 5304511843 | Drain (Replaces: 5308005500) |
|
$ 15.27 | |||||
| 34 | 297184400 | Shield-light |
|
$ 21.16 | |||||
| 35 | 216273000 | Clip, Drain Hose |
|
$ 24.91 | |||||
| 37 | 5303918606 | Trim-cabinet Corner,white ,(2) (Replaces: 241611301) |
|
$ 7.88 | |||||
| 38 | 297283803 | Hinge-upper (Replaces: 297164300) |
|
Immediately | $ 21.69 | ||||
| 40 | 297164400 | Cover-hinge |
|
$ 14.06 | |||||
| 41 | 240578902 | Screw,hex Head ,1/4-20 X 5/8 |
|
Immediately | $ 15.75 | ||||
| 47 | 297192903 | Baffle,air (Replaces: 297192900) |
|
Immediately | $ 28.12 | ||||
| 50 | 216394050 | Bracket,fan Motor Mount |
|
$ 25.28 | |||||
| 63 | 216396900 | Screw, Leveling Foot, Plastic, Adjustable |
|
Immediately | $ 42.65 | ||||
| 72 | 297036907 | Grille/kickplate,32`` ,white (Replaces: 297036900) |
|
$ 43.65 | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 12.05 | ||||
| 144 | 297178100 | Shelf-assy,fixed,glass ,(3) ,complete |
|
- | |||||
| 148 | 216995501 | Cover-crisper Pan |
|
- | |||||
| 149 | 5304492617 | Damper,humidity Cont. (Replaces: 240361301) |
|
Immediately | $ 9.65 | ||||
| 150 | 5304492617 | Knob,humidity Cont. (Replaces: 240361202) |
|
Immediately | $ 9.65 | ||||
| 151 | 216988200 | Support-crspr Cover,rh |
|
$ 75.60 | |||||
| 169 | 216912401 | Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2) |
|
$ 14.18 | |||||
| 172 | 297251200 | Switch,w/harness |
|
- | |||||
| 10A | 297177400 | Bracket,(2) ,drain Pan |
|
- | |||||
| 151A | 216988201 | Support-crspr Cover,lh |
|
$ 74.81 | |||||
| 26A | 216959900 | Pan-crisper,(2) |
|
$ 188.53 | |||||
| 47A | 240350608 | Insert-pan Cover,glass (Replaces: 240350650) |
|
Immediately | $ 50.55 | ||||
| 71A | 297146800 | Screw,8-18ab X 0.470 ,evap Panel |
|
- | |||||
| 93A | 216629601 | Screw,hex Washer Head ,10-16 X 0.500 ,tapping |
|
$ 14.46 | |||||
| F10 | 297175600 | Heater-drain Pan |
|
- | |||||
| F13 | 297309000 | Motor,fan ,115 V (Replaces: 216934100) |
|
Immediately | $ 61.47 | ||||
| F166 | 297282800 | Electronic Control,freezer ,assy (Replaces: 297239300) |
|
$ 242.55 | |||||
| F167 | 297282700 | Electronic Control,refrigerator ,assy (Replaces: 297239400) |
|
$ 265.43 | |||||
| F5 | 5308000010 | Fan Blade (Replaces: 216325600) |
|
Immediately | $ 54.48 | ||||
| NI | 216502400 | Grommet-shelf Mtg |
|
$ 18.48 | |||||
| NI | 216910409 | Energy Guide |
|
- | |||||
| NI | 125963-48 | Insulation,24`` ,drain Tube (Replaces: 297001704) |
|
Immediately | $ 65.73 | ||||
| NI | 240494001 | Plug,white (Replaces: 297095300) |
|
Immediately | $ 20.22 |
