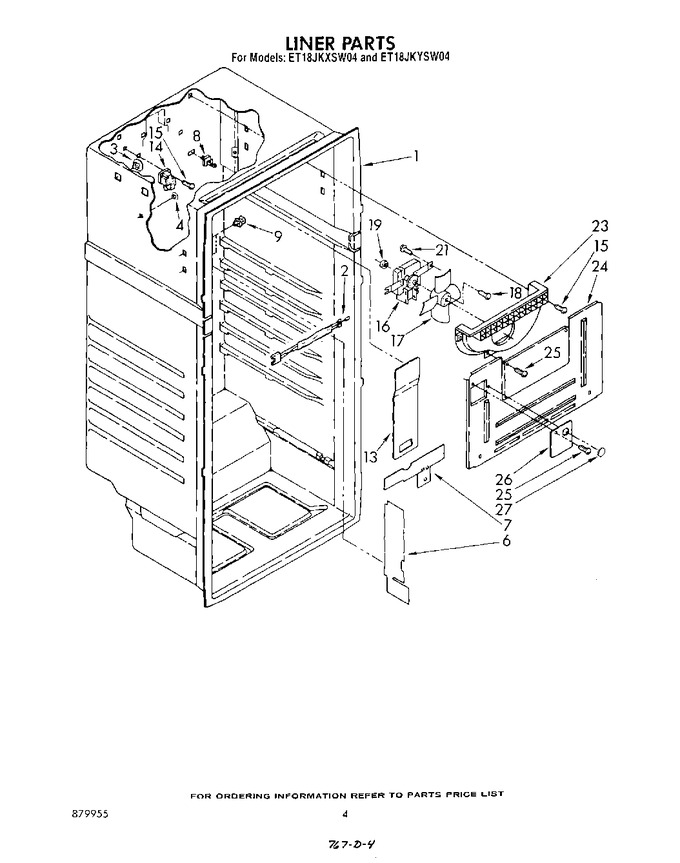

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	943796		Wiring, Fan Motor		Appelez-nous	-
3	944795		Hole Plug		Appelez-nous	-
4	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
6	942751		Side, Electric Shield		Appelez-nous	-
7	946351		Top, Electric Shield		Appelez-nous	-
8	942750		Stud, Evaporator (2)		Appelez-nous	-
9	939065		Stud Hook (2)				$ 7.25
13	1118775		Cover, Air Duct		Appelez-nous	-
14	942842		Terminal Block, Multiple		Appelez-nous	-
15	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 7.85
15	WP489478		Screw   (Replaces: 489242)				$ 7.75
16	482731		Motor, Fan   (Replaces: 1105608)			Immediately	$ 79.05
17	WP1100938		Fan, Blade   (Replaces: 1100938)				$ 87.87
18	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 244.80
19	1114354		Grommet (2)		Appelez-nous	-
21	489168		Screw (2)		Appelez-nous	-
23	1122814		Scroll, Fan		Appelez-nous	-
24	943741		Evaporator Cover		Appelez-nous	-
25	WP488729		Screw (5)   (Replaces: 489225)			Immediately	$ 7.79
26	WP2217784		Hole Cover, Evaporator   (Replaces: 1103620)				$ 44.97
27	1103725		Hole Plug		Appelez-nous	-
