SELECT A DIAGRAM

01 - Cabinet, Literature

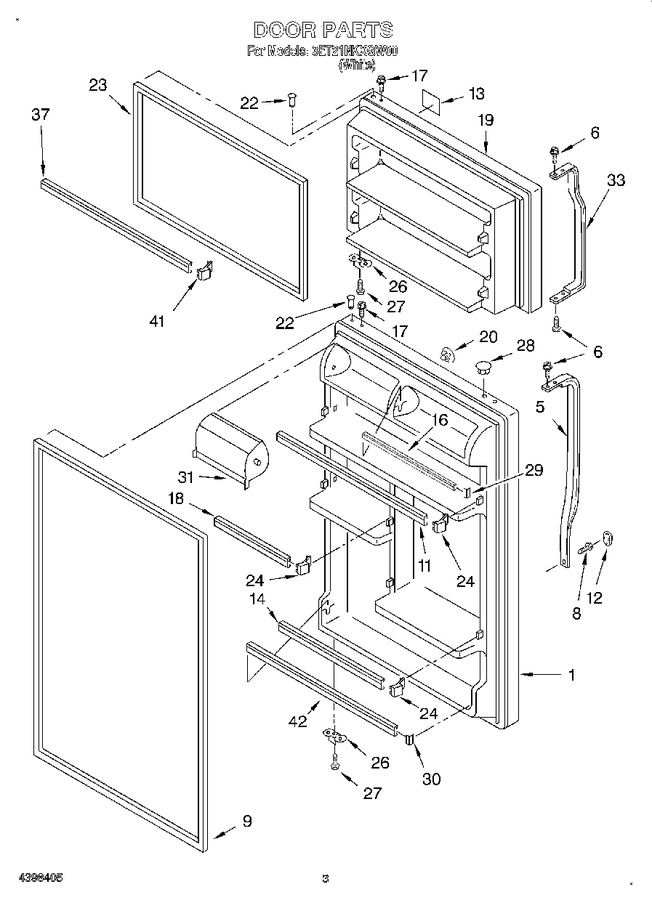

02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183946		Refrigerator Door (includes No.9 & No.22)		Appelez-nous	-
5	WP2202807W		Handle, Door   (Replaces: 2202807W)				$ 155.22
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
8	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.79
9	2159061		Door Gasket, Magnetic (mist Beige)			Immediately	$ 183.67
11	2195944		Trim, Door Shelf				$ 47.99
12	WP2202819W		Cover, Screw   (Replaces: 2202819W)			Immediately	$ 7.75
13	2175383		Nameplate		Appelez-nous	-
14	WP2195943		Trim, Door Shelf   (Replaces: 2195943)				$ 87.41
16	WP2201061		Trim, Door Shelf   (Replaces: 2195378)				$ 118.40
17	WP8281206		Screw   (Replaces: 489028)				$ 7.94
18	2195945		Trim, Door Shelf		Appelez-nous	-
19	W11023679		Freezer Door (includes No. 22 & No. 23)   (Replaces: 2182489)				$ 722.23
20	WP2189000		Hole Plug   (Replaces: 2189000)			Immediately	$ 7.40
22	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
23	2159060		Door Gasket, Magnetic (mist Beige)				$ 320.01
24	WP2195915		Endcap, Trim   (Replaces: 2195915)				$ 13.07
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
28	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 7.80
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
31	WP2218118		Compartment Door   (Replaces: 2177130)				$ 78.02
33	WP2202806W		Handle, F.c.   (Replaces: 2202806W)				$ 148.00
37	2195947		Trim-door (2)				$ 50.94
41	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 12.55
42	WPW10421486		Trim, Door   (Replaces: 2195948)				$ 109.28
100	2182576		Featurepak (includes 11, 14, 16, 18, 24, 29, 30, 31, 37, 41, 42) Also See Shelf Pts.pg.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
