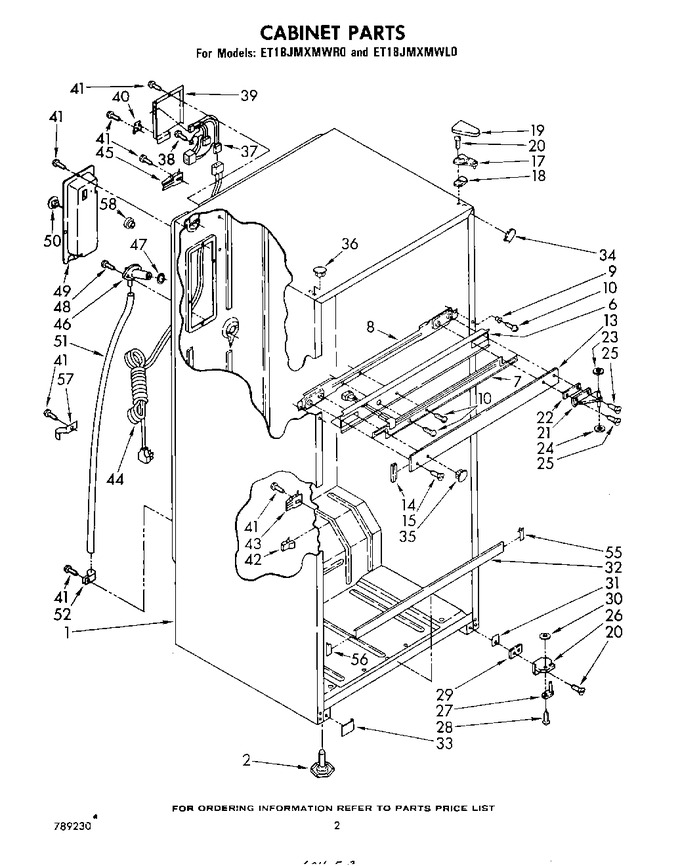

02 - Cabinet
03 - Liner
04 - Compartment Separator
05 - Shelf
06 - Freezer Door
07 - Unit
08 - Refrigerator Door
09 - Ice Maker , Not Illustrated And Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 944766 | Leveler |
|
- | |||||
| 6 | 943698 | Frame, Center Rail |
|
- | |||||
| 7 | 943691 | Heater, Mullion |
|
- | |||||
| 8 | 943699 | Center Rail, Bracket |
|
- | |||||
| 9 | 942737 | Ferrule, Center Rail |
|
- | |||||
| 10 | 489129 | Screw, 8-32 X 1/2 |
|
- | |||||
| 13 | 943694 | Center Rail (coffee) |
|
- | |||||
| 13 | 943695 | Center Rail (golden Harvest) |
|
- | |||||
| 13 | 1100678 | Center Rail (toast) |
|
- | |||||
| 13 | 943697 | Center Rail (almond) |
|
- | |||||
| 13 | 1100677 | Center Rail (platinum) |
|
- | |||||
| 13 | 943692 | Center Rail (white) |
|
- | |||||
| 14 | 946322 | Filler, Center Rail (2) (coffee) |
|
- | |||||
| 14 | 1100680 | Filler, Center Rail (2) (toast) |
|
- | |||||
| 14 | 1100679 | Filler, Center Rail (2) (platinum) |
|
- | |||||
| 14 | 946323 | Filler, Center Rail (2) (golden Harvest) |
|
- | |||||
| 14 | 946320 | Filler, Center Rail (2) (white) |
|
- | |||||
| 14 | 946321 | Filler, Center Rail (2) (almond) |
|
- | |||||
| 15 | 489097 | Screw, 10-32 X 3/8 |
|
- | |||||
| 17 | 1100513 | Shim, Hinge Top |
|
- | |||||
| 18 | 1100509 | Shim, Top Hinge |
|
- | |||||
| 19 | 989194 | Hinge Cover (almond) |
|
- | |||||
| 19 | 1100173 | Hinge Cover (platinum) |
|
- | |||||
| 19 | 842010 | Hinge Cover (white) |
|
- | |||||
| 19 | 989895 | Hinge, Cover (coffee) |
|
- | |||||
| 19 | 989896 | Hinge Cover (golden Harvest) |
|
- | |||||
| 19 | 1100172 | Hinge Cover (toast) |
|
- | |||||
| 20 | 488949 | Screw (repair) |
|
- | |||||
| 20 | WP999367 | Screw, 10-32 X 23/32 (Replaces: 489105) |
|
$ 8.56 | |||||
| 21 | 944788 | Hinge, Center |
|
$ 32.65 | |||||
| 22 | 836155 | Shim, Hinge Center |
|
- | |||||
| 22 | 836195 | Shim, Center (repair) |
|
- | |||||
| 23 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 24 | WP488296 | Washer, 11/64 (Replaces: 488296) |
|
$ 7.55 | |||||
| 25 | 488949 | Screw (repair) |
|
- | |||||
| 25 | WP999367 | Screw, 10-32 X 1/2 (2) (Replaces: 489096) |
|
$ 8.56 | |||||
| 26 | 944783 | Hinge Butt, Bottom |
|
- | |||||
| 27 | 654366 | Hinge Pin, Bottom |
|
$ 27.15 | |||||
| 28 | 488714 | Screw 10-32 X 5/16 |
|
$ 5.48 | |||||
| 29 | 1100779 | Shim, Bottom Hinge (almond) |
|
- | |||||
| 29 | 1100778 | Shim, Bottom Hinge (white) |
|
- | |||||
| 29 | 1100780 | Shim, Bottom Hinge (coffee) |
|
- | |||||
| 29 | 1100781 | Shim, Bottom Hinge (golden Harvest) |
|
- | |||||
| 29 | 1100783 | Shim, Bottom Hinge (toast) |
|
- | |||||
| 29 | 1100784 | Shim, Bottom Hinge (platinum) |
|
- | |||||
| 30 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 31 | 942820 | Cover, Glider Rail (golden Harvest) |
|
- | |||||
| 31 | 942819 | Cover, Glider Rail (coffee) |
|
- | |||||
| 31 | 1100685 | Cover, Glider Rail (platinum) |
|
- | |||||
| 31 | 1100686 | Cover, Glider Rail (toast) |
|
- | |||||
| 31 | 942818 | Cover, Glider Rail (white) |
|
- | |||||
| 31 | 942822 | Cover, Glider Rail (almond) |
|
- | |||||
| 32 | 943687 | Cover, Deck Rail (golden Harvest) |
|
- | |||||
| 32 | 943685 | Cover, Deck Rail (white) |
|
- | |||||
| 32 | 943686 | Cover, Deck Rail (coffee) |
|
- | |||||
| 32 | 943689 | Cover, Deck Rail (almond) |
|
- | |||||
| 32 | 1100669 | Cover, Deck Rail (platinum) |
|
- | |||||
| 32 | 1100670 | Cover, Deck Rail (toast) |
|
- | |||||
| 33 | 944831 | Cover, Glider Rail (almond) |
|
- | |||||
| 33 | 944832 | Cover, Glider Rail (coffee) |
|
- | |||||
| 33 | 944833 | Cover, Glider Rail (golden Harvest) |
|
- | |||||
| 33 | 1100681 | Cover, Glider Rail (platinum) |
|
- | |||||
| 33 | 1100682 | Cover, Glider Rail (toast) |
|
- | |||||
| 33 | 943552 | Cover, Glider Rail (white) |
|
- | |||||
| 34 | 942807 | Filler, Wrap Corner (white) |
|
- | |||||
| 34 | 942809 | Filler, Wrap Corner (golden Harvest) |
|
- | |||||
| 34 | 942811 | Filler, Wrap Corner (almond) |
|
- | |||||
| 34 | 1100683 | Filler, Wrap Corner (platinum) |
|
- | |||||
| 34 | 1100684 | Filler, Wrap Corner (toast) |
|
- | |||||
| 34 | 942808 | Filler, Wrap Corner (coffee) |
|
- | |||||
| 35 | 940086 | Hole Plug (white) |
|
- | |||||
| 35 | 940088 | Hole Plug (coffee) |
|
- | |||||
| 35 | 940089 | Hole Plug (golden Harvest) |
|
- | |||||
| 35 | 1100687 | Hole Plug (platinum) |
|
- | |||||
| 35 | 1100688 | Hole Plug (toast) |
|
- | |||||
| 35 | 940087 | Hole Plug (almond) |
|
- | |||||
| 36 | 842031 | Hole Plug (2) (white) |
|
- | |||||
| 36 | 1100177 | Hole Plug (2) (platinum) |
|
- | |||||
| 36 | 1100176 | Hole Plug (2) (toast) |
|
- | |||||
| 36 | 989876 | Hole Plug (2) (golden Harvest) |
|
- | |||||
| 36 | 989875 | Hole Plug (2) (coffee) |
|
- | |||||
| 36 | 989195 | Hole Plug (2) (almond) |
|
- | |||||
| 37 | 942844 | Cabinet, Wiring Assembly |
|
- | |||||
| 38 | WP250830 | Screw, 8-32 X 1/2 (Replaces: 489048) |
|
$ 8.78 | |||||
| 39 | 942845 | Cover, Wiring |
|
- | |||||
| 40 | 944741 | Clip, Wiring Cover |
|
- | |||||
| 41 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 42 | W10812038 | Clip, Wire (4) (Replaces: 939054) |
|
- | |||||
| 43 | 549193 | Clamp-service Cord |
|
$ 14.06 | |||||
| 44 | 937360 | Cord, Service |
|
- | |||||
| 45 | 937357 | Clamp |
|
- | |||||
| 46 | 942813 | Fitting, Drain |
|
- | |||||
| 47 | 940121 | Gasket, Seal |
|
- | |||||
| 48 | WP98165 | Screw, 8 X 5/8 (Replaces: 488401) |
|
$ 8.57 | |||||
| 49 | 942853 | Plug Assembly |
|
- | |||||
| 50 | 655411 | Hole Plug |
|
- | |||||
| 51 | 8316810 | Tube, Drain (Replaces: 509640) |
|
$ 125.72 | |||||
| 52 | 519405 | Clamp |
|
- | |||||
| 55 | 944701 | Filler, Deck Rail (r.s.) (almond) |
|
- | |||||
| 55 | 944702 | Filler, Deck Rail (r.s.) (coffee) |
|
- | |||||
| 55 | 944703 | Filler, Deck Rail (r.s.) (golden Harvest) |
|
- | |||||
| 55 | 1100671 | Filler, Deck Rail (r.s.) (platinum) |
|
- | |||||
| 55 | 1100672 | Filler, Deck Rail (r.s.) (toast) |
|
- | |||||
| 55 | 944700 | Filler, Deck Rail (r.s.) (white) |
|
- | |||||
| 56 | 944708 | Filler, Deck Rail (l.s.) (golden Harvest) |
|
- | |||||
| 56 | 1100674 | Filler, Deck Rail (l.s.) (toast) |
|
- | |||||
| 56 | 1100673 | Filler, Deck Rail (l.s.) (platinum) |
|
- | |||||
| 56 | 944705 | Filler, Deck Rail (l.s.) (white) |
|
- | |||||
| 56 | 944706 | Filler, Deck Rail (l.s.) (almond) |
|
- | |||||
| 56 | 944707 | Filler, Deck Rail (l.s.) (coffee) |
|
- | |||||
| 57 | 1103015 | Clamp, Drain Tube |
|
- | |||||
| 58 | 944796 | Wiring, Grommet |
|
- |
