SELECT A DIAGRAM

01 - Cabinet, Literature

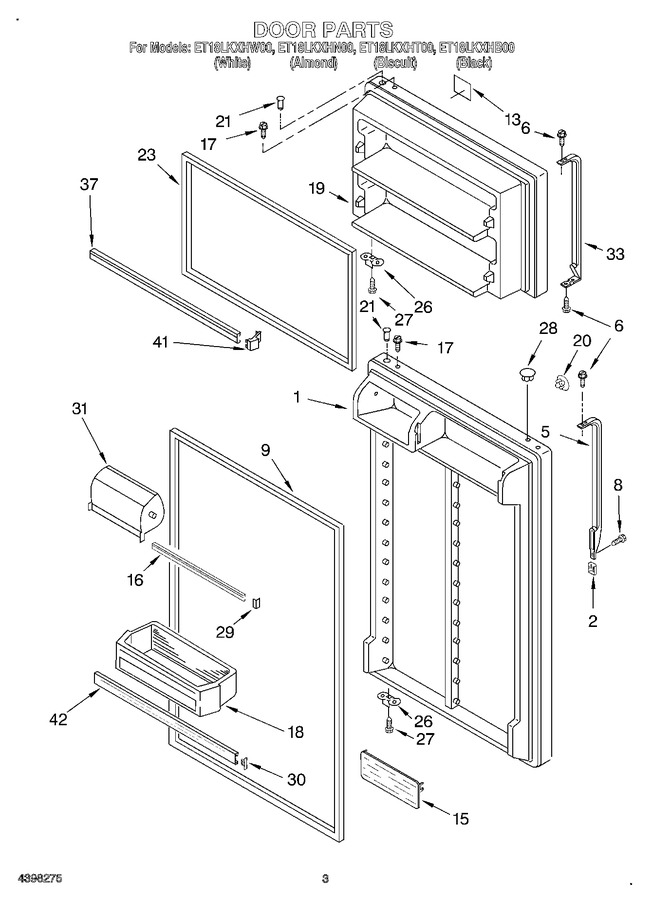

02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183899		Refrigerator Door (includes No.9 & No.21) (almond)		Appelez-nous	-
1	2183898		Refrigerator Door (includes No.9 & No.21) (black)		Appelez-nous	-
1	2205281		Refrigerator Door (includes No.9 & No.21) (biscuit)		Appelez-nous	-
2	2193353B		Cover, Endcap (black)				$ 5.85
2	2193353T		Cover, Endcap (biscuit)		Appelez-nous	-
2	2193353N		Cover, Endcap (almond)		Appelez-nous	-
2	WP2193353W		Cover, Endcap (white)   (Replaces: 2193353W)				$ 8.11
5	4388950		Handle Center (black)   (Replaces: 2193351B)				$ 224.58
5	2193351T		Handle Center (biscuit)		Appelez-nous	-
5	2193351N		Handle Center (almond)		Appelez-nous	-
5	4388947		Handle Center (white)   (Replaces: 2193351W)				$ 194.73
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
8	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
9	2177305		Door Gasket, Magnetic (black)				$ 274.07
9	2159057		Door Gasket, Magnetic (mist Beige)			Immediately	$ 164.66
13	2200958		Nameplate (almond Model)		Appelez-nous	-
13	2200959		Nameplate (black Model)		Appelez-nous	-
13	2205769		Nameplate (biscuit Model)		Appelez-nous	-
13	2200957		Nameplate (white Model)		Appelez-nous	-
15	WP2188234		Shelf, Flip-up   (Replaces: 2188234)			Immediately	$ 57.44
16	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 118.40
17	WP8281206		Screw   (Replaces: 489028)				$ 7.94
18	2195394		Door Bin (3)		Appelez-nous	-
19	2200710		Freezer Door (black)		Appelez-nous	-
19	2182487		Freezer Door (white)		Appelez-nous	-
19	2182491		Freezer Door (almond)		Appelez-nous	-
19	2205279		Freezer Door (biscuit)		Appelez-nous	-
20	WP2189009		Hole Plug (black)   (Replaces: 2189009)				$ 7.25
20	2189008		Hole Plug (almond)		Appelez-nous	-
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.40
20	WP2200936		Hole Plug (biscuit)   (Replaces: 2200936)				$ 7.59
21	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
23	2159327		Door Gasket, Magnetic (mist Beige)			Immediately	$ 164.58
23	2177304		Door Gasket, Magnetic (black)				$ 225.08
26	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
27	WP488921		Screw Page.   (Replaces: 488921)			Immediately	$ 7.75
28	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.80
28	989196		Hole Plug (almond)		Appelez-nous	-
28	WP2212649		Hole Plug (biscuit)   (Replaces: 2200934)				$ 7.61
28	WP2212651		Hole Plug (black)   (Replaces: 2160808)				$ 23.06
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
31	WP2218113		Door, Compartment   (Replaces: 2171036)			Immediately	$ 50.33
33	2193350N		Handle, F.c. (almond)		Appelez-nous	-
33	4388950		Handle, F.c. (black)   (Replaces: 2193350B)				$ 224.58
33	2193350T		Handle, F.c. (biscuit)		Appelez-nous	-
33	4388947		Handle, F.c. (white)   (Replaces: 2193350W)				$ 194.73
37	2195946		Trim-door (2)				$ 46.58
41	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 12.55
42	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 129.76

    View Diagram in Separate Window       Print Part List
