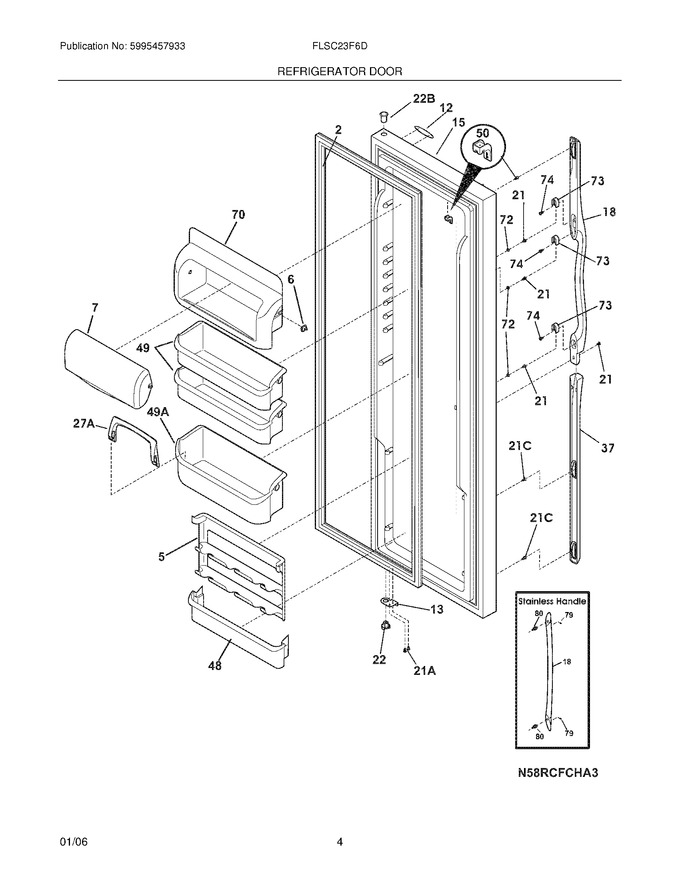

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241516102		Rack-can				$ 101.54
6	241515901		Lug-dairy Compartment				$ 47.19
7	241515606		Door-dairy   (Replaces: 241515601)				$ 45.51
12	241808601		Label-nameplate   (Replaces: 240572601)				$ 14.10
13	240581905		Door Stop,black ,ref				$ 66.94
15	241534533		Door-refr,stainless ,complete Assy				$ 759.78
18	240536801		Handle-door,stainless Steel ,with Insert		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 17.33
22	240328203		Bearing-hinge,black ,closer			Immediately	$ 30.26
48	241511701		Bin-door,ref			Immediately	$ 74.68
49	241505301		Bin-door,2-liter			Immediately	$ 84.89
50	241508401		Cover-magnet				$ 88.93
70	241515801		Compartment-dairy,removable				$ 197.66
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.88
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 36.67
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting   (Replaces: 218755503)			Immediately	$ 20.67
21A	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 15.75
22B	240328403		Bearing-hinge,black ,upper				$ 14.85
27A	240396102		Retainer,tall Bottle				$ 21.26
49A	241505501		Bin-door,gallon			Immediately	$ 110.03
F2	241510207		Gasket-refr Door,black ,magnetic   (Replaces: 241510203)			Immediately	$ 107.93
