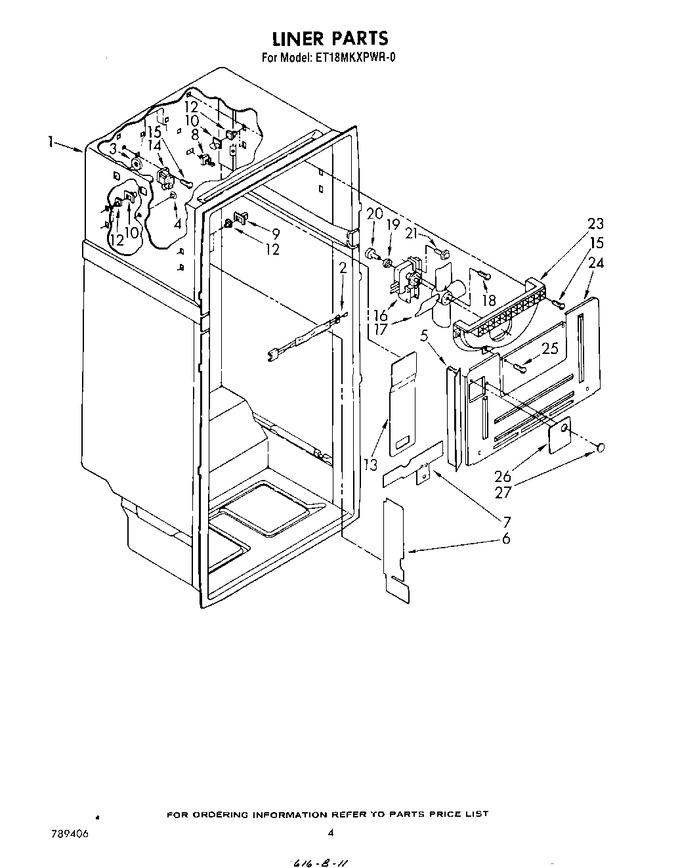

03 - Liner


04 - Compartment Separator


05 - Shelf


06 - Freezer Door


07 - Unit


08 - Refrigerator Door , Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	943796		Wiring, Fan Motor		Appelez-nous	-
3	944795		Hole Plug		Appelez-nous	-
4	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
5	1105673		Gasket, Cover (2)		Appelez-nous	-
6	942751		Side, Electric Shield		Appelez-nous	-
7	946351		Top, Electric Shield		Appelez-nous	-
8	942750		Stud, Evaporator (2)		Appelez-nous	-
9	946356		Stud (2)		Appelez-nous	-
10	819091		Saddle Stud L.s.   (Replaces: 946358)				$ 41.66
10	819091		Saddle Stud, R.s.   (Replaces: 946357)				$ 41.66
12	946355		Support Stud (8)		Appelez-nous	-
13	943707		Cover, Air Duct		Appelez-nous	-
14	942842		Terminal Block, Multiple		Appelez-nous	-
15	W11624204		Screw, 8 X 1/2 (2)   (Replaces: 486194)				$ 14.72
16	482731		Fan, Motor   (Replaces: 946653)			Immediately	$ 79.05
17	WP1100938		Fan, Blade   (Replaces: 1100938)				$ 87.87
18	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 244.80
19	531933		Grommet (2)				$ 5.70
20	935701		Spacer, Fan Motor (2)		Appelez-nous	-
21	489042		Screw, 8 X 1-1/4		Appelez-nous	-
23	942846		Scroll, Fan		Appelez-nous	-
24	943741		Evaporator Cover		Appelez-nous	-
25	WP488729		Screw, 8-15 X 1/2 (5)   (Replaces: 488992)			Immediately	$ 7.79
26	WP2217784		Hole Cover, Evaporator   (Replaces: 1103620)				$ 44.97
27	1103725		Hole Plug		Appelez-nous	-
