SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Compartment Separator


05 - Shelf


06 - Freezer Door


07 - Unit


08 - Refrigerator Door, Lit/optional

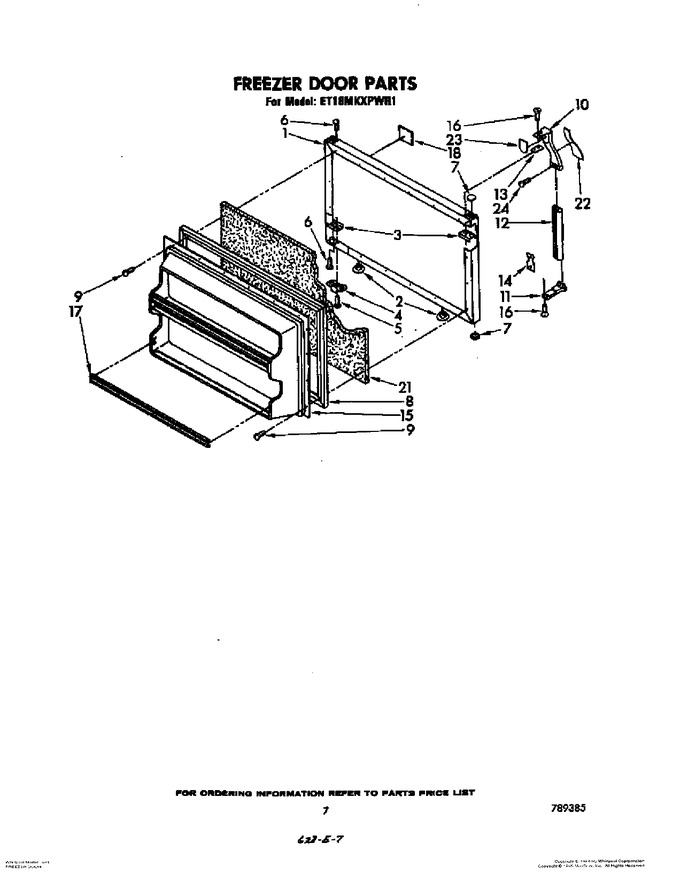

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1104645		Panel, Freezer Door (also Order Item 21) (toast)		Appelez-nous	-
1	1104641		Panel, Freezer Door (also Order Item 21) (coffee)		Appelez-nous	-
1	1104642		Panel, Freezer Door (also Order Item 21) (golden Harvest)		Appelez-nous	-
1	1104644		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
1	1104646		Panel, Freezer Door (also Order Item 21) (platinum)		Appelez-nous	-
1	1104640		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
6	488930		Screw (repair)		Appelez-nous	-
7	1100188		Hole Plug (toast)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
7	989892		Hole Plug (coffee)		Appelez-nous	-
7	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 8.19
7	1100189		Hole Plug (platinum)		Appelez-nous	-
8	1106180		Door Gasket, Magnetic		Appelez-nous	-
9	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
10	944163		Handle End, Top				$ 53.54
11	944157		Handle End		Appelez-nous	-
12	1106128		Handle, Center		Appelez-nous	-
13	943187		Shim, Handle				$ 25.14
14	943188		Spacer, Handle Door				$ 7.80
15	1100280		Interior Door Panel		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 488920)				$ 7.98
17	1108757		Trim, Door Shelf (2)		Appelez-nous	-
18	945116		Insert, Nameplate		Appelez-nous	-
21	876029		Kit, Foam Slab		Appelez-nous	-
22	1106059		Insert, Handle		Appelez-nous	-
23	935074		Shim, Endcap (top)		Appelez-nous	-
24	489022		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
