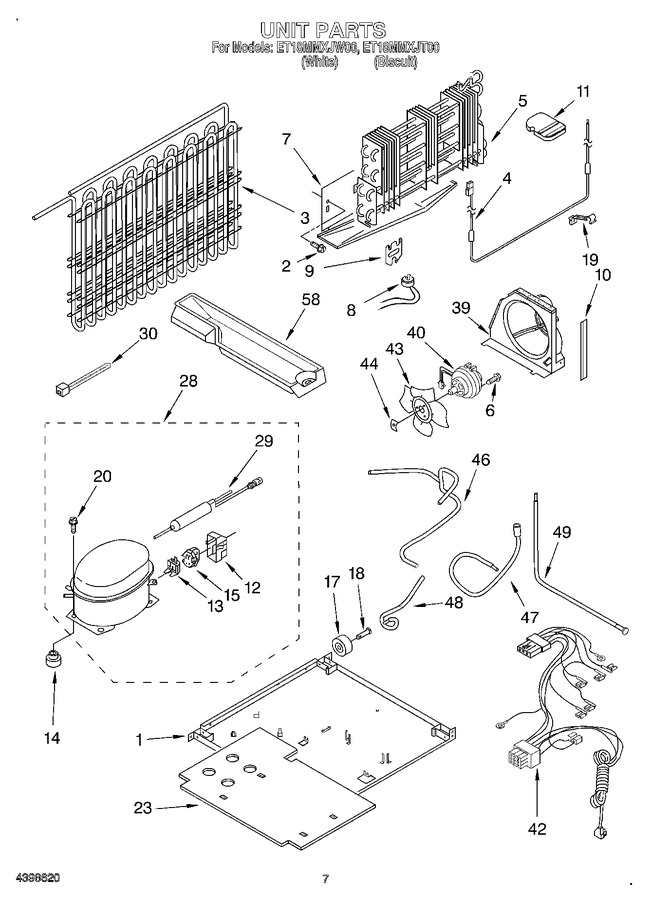

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2201161		Plate, Unit Mounting		Appelez-nous	-
2	WP489478		Screw   (Replaces: 489478)				$ 7.75
3	2205471		Condenser		Appelez-nous	-
4	WP2315531		Heater, Defrost   (Replaces: 2176300)				$ 104.62
5	2195391		Evaporator Assy.		Appelez-nous	-
6	WP8281196		Screw   (Replaces: 489494)			Immediately	$ 7.19
7	2172619		Drain Pan		Appelez-nous	-
8	WP4387503		Defrost Bimetal   (Replaces: 2182380)			Immediately	$ 47.89
9	2176301		Bracket, Heater				$ 6.37
10	2163780		Extension, Air Baffle		Appelez-nous	-
11	2201184		Support Block				$ 6.43
12	WP2162358		Cover   (Replaces: 2162358)				$ 90.75
13	WP4387938		Overload (service (includes Relay))   (Replaces: 4387938)				$ 189.12
13	WP4387938		Overload (production)   (Replaces: 2183452)				$ 189.12
14	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
14	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
15	WP4387938		Relay (production (service See Overload))   (Replaces: 2176740)				$ 189.12
17	WPW10475495		Roller (2)   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Rivet   (Replaces: 981126)			Immediately	$ 18.21
19	2182338		Clip, Heater				$ 6.62
20	876811		Screw, Compressor   (Replaces: 489373)				$ 7.42
23	2198740		Cover, Unit				$ 36.19
28	W10823815		Compressor (includes Items 12, 13, 15, 29) (also Order   (Replaces: 2183471)				$ 674.15
28	876765		Tube Kit			Immediately	$ 86.33
28	482801		Installation Kit				$ 119.50
29	W10843121		Drier   (Replaces: 2199167)			Immediately	$ 52.57
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 7.90
39	2198921		Air Baffle		Appelez-nous	-
40	W10822259		Motor, Condenser   (Replaces: 2183437)			Immediately	$ 221.30
42	2199117		Wire Assy. Unit		Appelez-nous	-
43	2190685		Blade, Fan				$ 52.00
44	WP486692		Nut   (Replaces: 486692)				$ 7.82
46	2179722		Tube, Discharge		Appelez-nous	-
47	2189161		Tube, Suction		Appelez-nous	-
48	W10528578		Tube, Process   (Replaces: 2194319)				$ 37.92
49	2174670		Tube, Condenser To Heat Loop		Appelez-nous	-
58	482278		Start Kit		Appelez-nous	-
58	978028		Valve, Access (1/2)		Appelez-nous	-
58	978029		Valve Access (5/8``)				$ 93.85
58	978030		Valve, Access (3/4``)				$ 130.71
58	876764		Valve, Access(3/16``)			Immediately	$ 91.35
58	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
58	2163795		Evap. Tray		Appelez-nous	-
58	978026		Valve, Access (5/16``)			Immediately	$ 128.09
58	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
