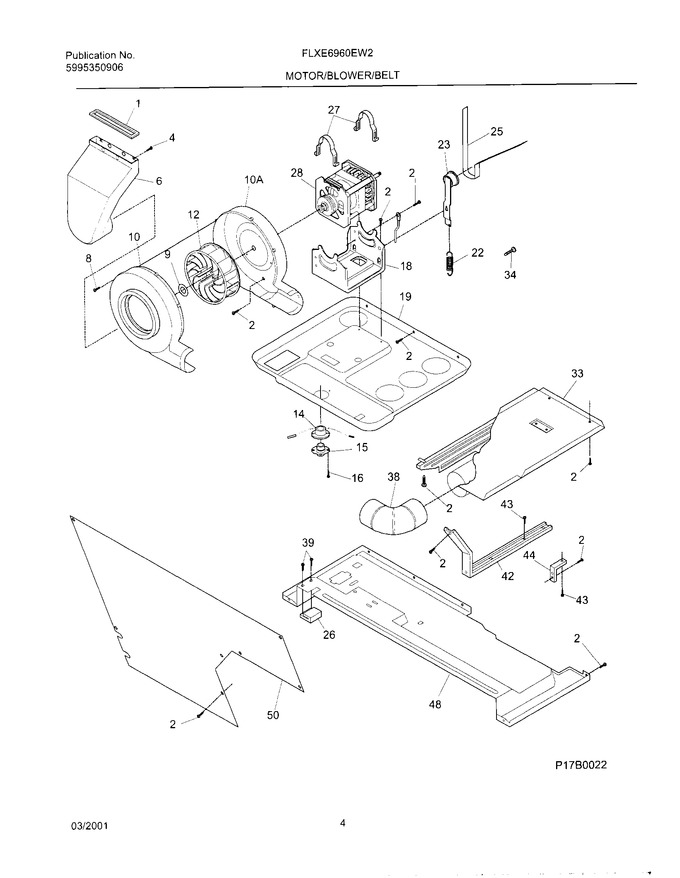

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131295200		Seal-air Duct				$ 18.11
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 15.75
4	131362400		Fastener				$ 10.45
6	5304521121		Duct-air   (Replaces: 131730500)				$ 131.73
8	3205245		Screw,pph Ab St/z/ch ,6-18x.60		Appelez-nous	-
9	5304488479		Clamp   (Replaces: 5303304824)			Immediately	$ 35.65
10	5304485558		Asmy,frt Blw Hsg/seal   (Replaces: 131784500)			Immediately	$ 157.50
10	131575200		Housing-blower, Rear		Appelez-nous	-
12	131476300		Wheel-blower			Immediately	$ 52.22
14	131658100		Thermostat-heater				$ 87.62
15	3204307		Thermostat-control				$ 151.99
16	3204308		Screw-thermostat, Pph Cup Pt, 8-18 X .625		Appelez-nous	-
18	131413600		Cradle & Stud				$ 104.30
19	131363901		Pan-motor Cradle		Appelez-nous	-
22	3205241		Spring-idler				$ 84.26
23	5304507499		Idler & Pulley Assy   (Replaces: 131863100)			Immediately	$ 47.40
25	137292700		Belt-dryer   (Replaces: 5303283287)			Immediately	$ 10.38
26	5303212870		Block-support		Appelez-nous	-
27	131419800		Clamp-motor				$ 8.18
28	5303937189		Motor & Pulley   (Replaces: 131542900)			Immediately	$ 326.98
33	131731401		Shield-access		Appelez-nous	-
34	131205300		Screw, 10-16 X .75			Immediately	$ 13.44
38	3204320		Elbow-exhaust		Appelez-nous	-
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 15.75
42	3204324		Bracket-marriage		Appelez-nous	-
43	131751500		Screw 12-24 X .63 Hex Hd				$ 9.50
44	3204326		Bracket-external				$ 48.04
48	131731300		Pan-bottom		Appelez-nous	-
50	3204329		Cover-safety				$ 40.16
NI	5303208586		Screw-term Blk (3)		Appelez-nous	-
NI	134101400		Block-terminal   (Replaces: 5303937016)			Immediately	$ 62.21
