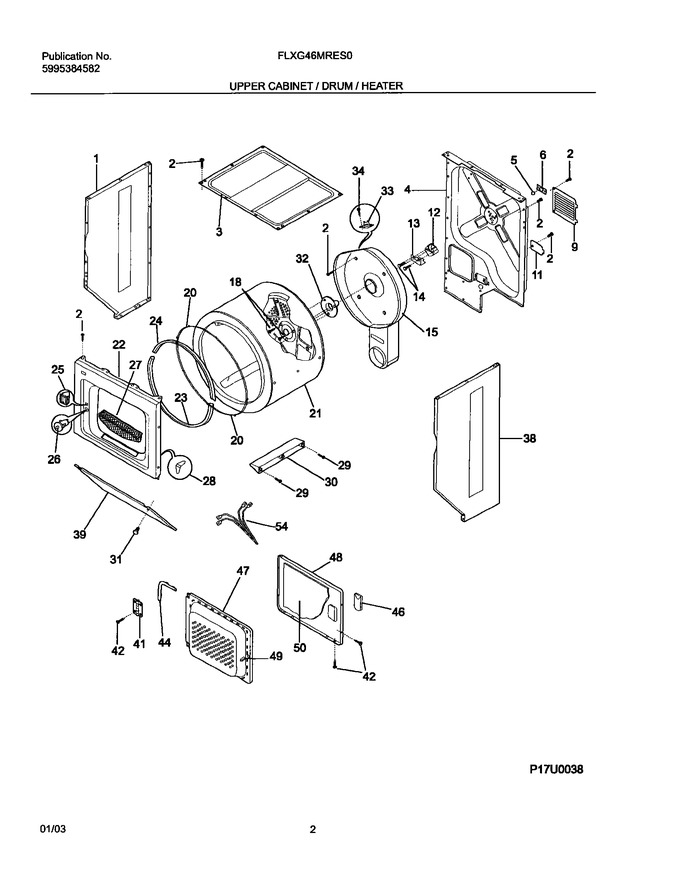

03 - Upper Cabinet/drum/heater


05 - Motor/blower/belt


07 - Control Panel


09 - Lower Cabinet/top


11 - Motor/tub


13 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131084700		Panel,white ,left Side				$ 93.82
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 15.75
3	131883301		Panel,white ,top				$ 307.76
4	131752302		Panel,galvanized Stl ,rear		Appelez-nous	-
5	5303281019		Ball				$ 18.11
6	5303281020		Clip,ball ,steel ,flat Nut				$ 18.90
9	3204249		Panel,motor Access ,rear		Appelez-nous	-
11	5303207395		Cover-terminal Block		Appelez-nous	-
12	131825900		Bearing-drum Support			Immediately	$ 12.19
13	131724301		Bracket,bearing Support   (Replaces: 131724300)			Immediately	$ 28.51
14	131205400		Screw,bracket Mtg. ,10-16b X 1.375 ,cr/sq Drive				$ 14.18
15	5303207394		Housing,heater ,w/duct & Seal				$ 385.88
18	131168200		Screw,shaft/baffle Mt ,10-16ab X 0.375 ,special   (Replaces: 131477000)			Immediately	$ 15.75
20	137513300		Glide-drum   (Replaces: 131963900)			Immediately	$ 40.75
21	134122532		Drum,dryer ,galvanized Stl. ,service Kit				$ 537.86
22	134031600		Panel,white ,front ,service Kit				$ 240.40
23	5303937183		Seal,felt ,lower   (Replaces: 134134700)			Immediately	$ 39.86
24	5303937182		Seal,felt ,upper   (Replaces: 134036400)			Immediately	$ 36.16
25	131658800		Door Catch			Immediately	$ 75.98
27	5304516871		Lint Trap   (Replaces: 131359600)			Immediately	$ 46.67
28	5303281074		Clip-guide,(3)				$ 18.27
29	131382300		Screw,quadrex Head ,10-14 X 1.00 ,vane Mtg.,special			Immediately	$ 14.96
30	137552900		Vane,straight   (Replaces: 5303201200)				$ 61.05
31	131202300		Screw,pph ,10-16ab X 0.625			Immediately	$ 14.96
32	131777700		Shaft,drum Support ,ballhitch			Immediately	$ 79.85
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.73
38	131084800		Panel,white ,right Side		Appelez-nous	-
39	137546910		Panel,access ,white ,front   (Replaces: 131084402)				$ 204.65
41	134222900		Hinge-door   (Replaces: 131627500)				$ 25.20
42	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 16.54
44	137551901		Gasket,door Seal   (Replaces: 131129900)			Immediately	$ 45.56
46	131789400		Handle-door, White			Immediately	$ 70.88
47	137365110		Panel,inner Door ,white   (Replaces: 131579103)				$ 255.15
48	131789303		Panel,outer Door ,white				$ 168.47
49	5303207102		Door Strike   (Replaces: 5303211430)			Immediately	$ 22.05
50	134535300		Insulator,heat Shield ,outer Door   (Replaces: 3204286)				$ 66.94
F26	5308001614		Switch,door ,w/o Drum Light		Appelez-nous	-
F33	5304406099		Thermostat-safety			Immediately	$ 133.98
F54	131498900		Wiring Harness,door Switch ,w/o Light				$ 58.46
NI	137576600		Plug-light Hole   (Replaces: 131870700)			Immediately	$ 15.75

    View Diagram in Separate Window       Print Part List
