01 - Cover

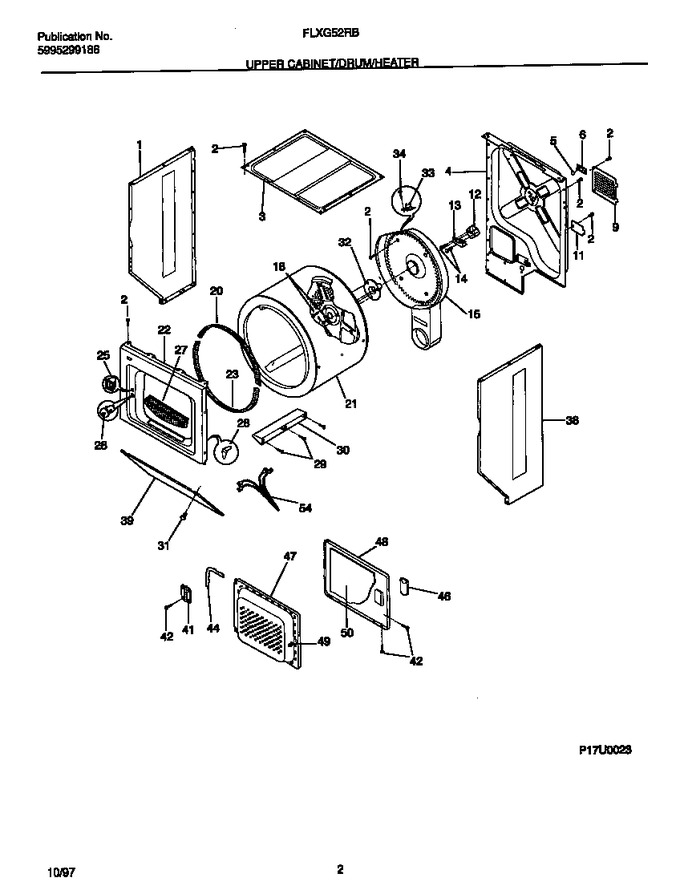

02 - Upper Cabinet/drum/heater


03 - Motor/blower/belt


04 - Control Panel


05 - Lower Cabinet/top


06 - Motor/tub


07 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131084701		Panel-left Side-almond		Appelez-nous	-
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 15.75
3	3204247		Panel, Galvanized		Appelez-nous	-
4	5303283283		Panel-rear		Appelez-nous	-
5	5303281019		Ball				$ 18.11
6	5303281020		Clip-ball				$ 18.90
9	3204249		Panel-access,dryer		Appelez-nous	-
11	5303207395		Cover-term Block		Appelez-nous	-
12	131825900		Bearing-shaft   (Replaces: 5303281008)			Immediately	$ 12.19
13	131724301		Bracket-bearing   (Replaces: 5303281023)			Immediately	$ 28.51
14	131205400		Screw-bracket, 10-16b X 1.375, Cr/sq Drive				$ 14.18
15	5303207394		Housing-heat & Duct				$ 385.88
18	131168200		Screw-shaft & Baffle, Comb Ph Ab Spcl, 10-16 X .375   (Replaces: 131477000)			Immediately	$ 15.75
20	5303321640		Glide-drum				$ 126.87
21	134138400		Drum-dryer   (Replaces: 131427807)				$ 656.78
22	131636203		Panel-front, Almond		Appelez-nous	-
23	5303283286		Seal-basket Lower				$ 48.04
25	131658800		Catch-door			Immediately	$ 75.98
26	5308001614		Switch-door		Appelez-nous	-
27	WG04L05872		Trap-lint   (Replaces: 131152700)				$ 100.55
28	5303281074		Clip-guide,(3)				$ 18.27
29	131382300		Screw-vane, Quadrex Head, 10-14 X 1.00, Special			Immediately	$ 14.96
30	137552900		Vane   (Replaces: 5303201200)				$ 61.05
31	131202300		Screw-, Pph Ab, 10-16 X 0.625			Immediately	$ 14.96
32	131777700		Shaft Assy   (Replaces: 131378400)			Immediately	$ 79.85
33	5303207396		Thermostat-safety		Appelez-nous	-
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.73
38	131084801		Panel-right Side-almond		Appelez-nous	-
39	131084403		Panel-access-almond		Appelez-nous	-
41	134222900		Hinge-door   (Replaces: 131627500)				$ 25.20
42	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 16.54
44	137551901		Gasket-door   (Replaces: 131129900)			Immediately	$ 45.56
46	131063601		Handle-door-almond		Appelez-nous	-
47	131579104		Door-inner, Almond		Appelez-nous	-
48	131579204		Door-outer, Almond		Appelez-nous	-
49	5303207102		Strike Door   (Replaces: 5303211430)			Immediately	$ 22.05
50	134535300		Shield-heat   (Replaces: 3204286)				$ 66.94
54	131498900		Harness-door Switch				$ 58.46
