Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10961001 Bushing, Door (wht) Appelez-nous -
2 67001137 Ref Dr Foam Assy (bsq) Appelez-nous -
3 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

4 WPW10443309 Gasket, Ref Dr (wht)   (Replaces: 12683801W) In-Stock Immediately $ 365.24

5 A3080002 Plug, Button (wht) Appelez-nous -
6 WP489349 Screw, Tf   (Replaces: M0239730) In-Stock Immediately $ 8.43

7 WP12566606ED Hinge, Top (blk)   (Replaces: 67001011) In-Stock Immediately $ 47.13

8 67001013 Cover, Top Hinge (bsq) Appelez-nous -
9 R9800670 Screw, Tf   (Replaces: M0238731) Special Order $ 10.58

10 M0310738 Plug, Top Hinge Button (bsq) Appelez-nous -
11 67003781 Stop, Door (bsq)   (Replaces: 10447110) Special Order $ 83.12

12 WP8281196 Screw, Mach   (Replaces: M0202336) In-Stock Immediately $ 7.55

13 67001015 Plug, Button (wht) Appelez-nous -
14 WP67001279 Tray, Dairy   (Replaces: 67001017) In-Stock Immediately $ 88.01

15 WP67003637 Door, Dairy   (Replaces: 67001307) In-Stock Immediately $ 82.67

16 67001139 Retainer, Door   (Replaces: 67001296) In-Stock Immediately $ 104.79

17 WP67001021 Bucket, Med Ref Door   (Replaces: 67001021) Special Order $ 84.95

18 67001141 Bucket, Small Ref Dr In-Stock Immediately $ 78.91

19 67001958 Handle, Ref Door (bsq) Appelez-nous -
20 12248201 Screw, Hndl Cone Special Order $ 5.48

21 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

22 67001143 Trim, Bottom Handle (bsq) Appelez-nous -
23 67001128 Trim, Top Handle (bsq) Appelez-nous -
24 12246604 Plug, Handle Hole (bsq) Appelez-nous -
25 12618001 Nameplate-dba Appelez-nous -
26 W11689473 Hinge, Center (wht)   (Replaces: 67001168) Special Order $ 69.79

27 W11573362 Screw, T. F.   (Replaces: M0226233) Special Order $ 14.72

28 WP67006744 Pin, Hinge (ctr)   (Replaces: 10351001) Special Order $ 8.68

29 WPM0274057 Shim, Non Metal (wht)   (Replaces: M0274057) In-Stock Immediately $ 8.40


    View Diagram in Separate Window     Print Icon   Print Part List

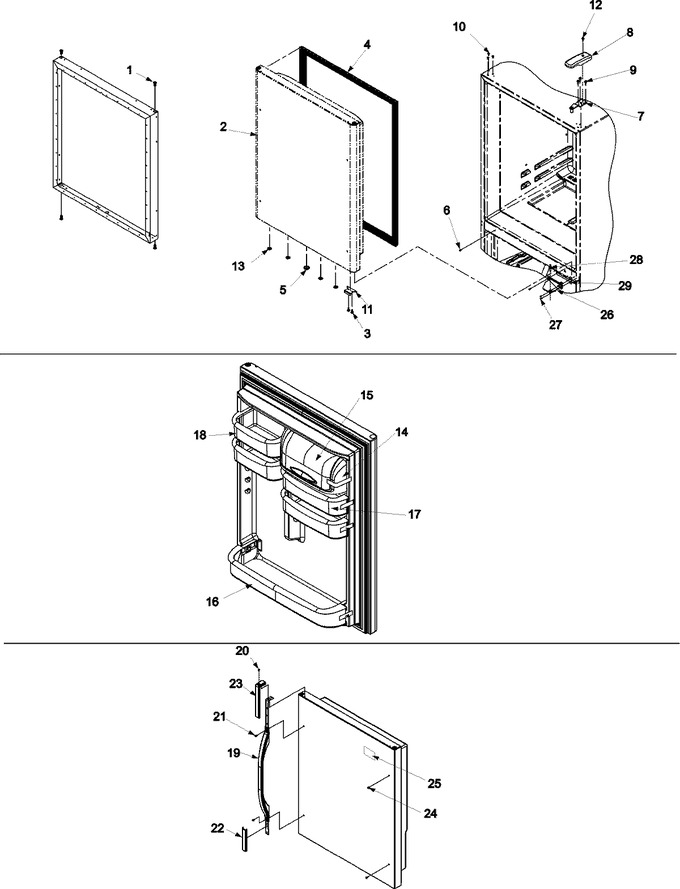

Diagram for DRB1901CC (BOM: PDRB1901CC0)
