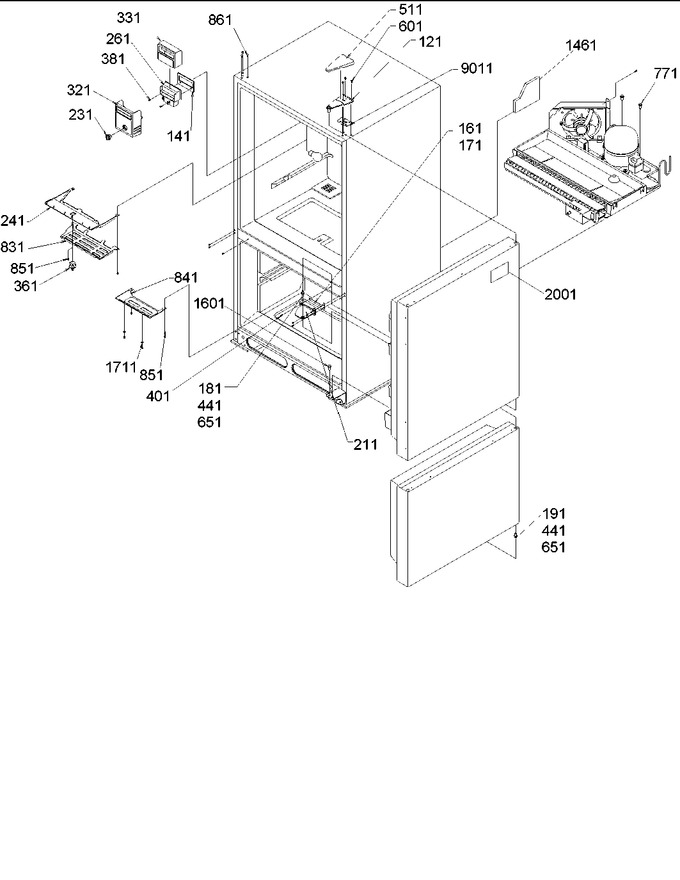

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 121 | 12077316 | Hinge, Top-e Ct |
|
- | |||||
| 141 | B8345401 | Gasket, Damper |
|
- | |||||
| 161 | 10562211 | Shim, Center Hinge |
|
- | |||||
| 171 | 10562203 | Shim, Center Hinge |
|
- | |||||
| 181 | WP67006744 | Pin, Hinge (ctr) (Replaces: 10351001) |
|
$ 8.68 | |||||
| 191 | 67007018 | Pin, Hinge (btm) (Replaces: 10200801) |
|
Immediately | $ 8.62 | ||||
| 211 | 12446513 | Hinge, Ctr- E Ct (wht) |
|
- | |||||
| 231 | D7795826 | Knob, Control (wht) |
|
- | |||||
| 241 | 12056201 | Shield, Ref Light Sw |
|
- | |||||
| 261 | R0161049 | Damper Control Kit |
|
- | |||||
| 321 | D7687538 | Cover,ref Control |
|
- | |||||
| 331 | 12607401 | Insul,damper |
|
- | |||||
| 361 | W11384469 | Switch, Light (Replaces: C3680310) |
|
Immediately | $ 39.09 | ||||
| 381 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 401 | W11573362 | Screw, T. F. (Replaces: M0226233) |
|
$ 14.72 | |||||
| 441 | WPM0274057 | Shim, Non Metal (wht) (Replaces: M0274057) |
|
Immediately | $ 8.40 | ||||
| 511 | 12076302 | Cover, Hinge (wht) |
|
- | |||||
| 601 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 651 | M0274058 | Shim, Non Metal (wht) |
|
$ 5.83 | |||||
| 771 | M0221523 | Screw, Shldr |
|
- | |||||
| 831 | 12056301 | Cover, Ref Light |
|
- | |||||
| 841 | 10493302 | Cover, Frz Light |
|
- | |||||
| 851 | M0238846 | Screw-sm |
|
- | |||||
| 861 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 1461 | 10663002 | Insul., L. Foot |
|
- | |||||
| 1601 | M0310330 | Plug, Button White |
|
- | |||||
| 1711 | M0270538 | Washer |
|
- | |||||
| 2001 | Y12528501 | Nameplate, Dba (Replaces: 12536301) |
|
Immediately | $ 62.74 | ||||
| 9011 | 12545201 | Shim, Posi Pin |
|
- |
