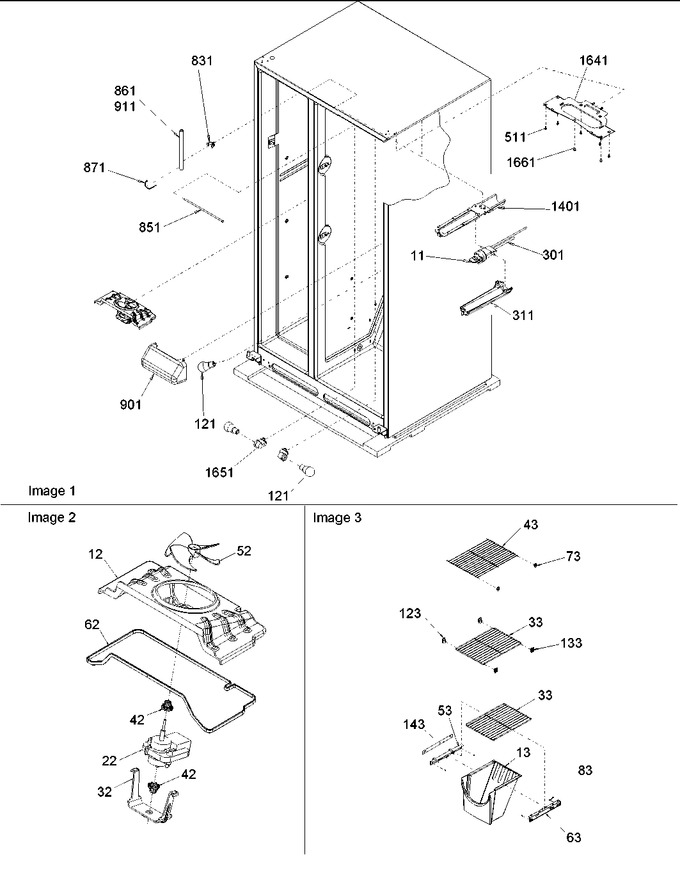

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | W11395888 | Plug, Bypass (Replaces: 12664501) |
|
Immediately | $ 50.72 | ||||
| 12 | 12590001 | Shroud, Evap |
|
- | |||||
| 13 | 12596501 | Bin, Fz |
|
- | |||||
| 22 | WPW10128551 | Motor, Evap Fan (Replaces: 10449508) |
|
Immediately | $ 78.75 | ||||
| 32 | 12217805 | Clip, Evap Motor |
|
- | |||||
| 33 | 12570502 | Shelf, Lwr Fz |
|
- | |||||
| 42 | WP67002780 | Grommet, Fan Motor (Replaces: 12619301) |
|
$ 7.81 | |||||
| 43 | 12570602 | Shelf, Upr Fz |
|
- | |||||
| 52 | WP2169142 | Fan, Evaporator (Replaces: 12217201) |
|
Immediately | $ 43.41 | ||||
| 53 | 12603101 | Rail, Shelf (lt) |
|
- | |||||
| 62 | A3030302 | Gasket |
|
- | |||||
| 63 | 12603201 | Rail, Shelf (rt) |
|
- | |||||
| 73 | C8973801 | Support, Frz Shelf |
|
$ 8.35 | |||||
| 83 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.00 | |||||
| 121 | 40A15 | Bulb, Light (40 Watt) (Replaces: A0282803) |
|
Immediately | $ 1.98 | ||||
| 123 | 12015002 | Support, Shelf (lt) |
|
$ 7.38 | |||||
| 133 | WP10941102 | Support, Shelf (rt) |
|
$ 11.81 | |||||
| 143 | 12683601 | Spacer, Fz Shelf |
|
- | |||||
| 301 | 12590601 | Housing, Water Filter Assy |
|
- | |||||
| 311 | WP12568001 | Cover, Filter (Replaces: 12568001) |
|
Immediately | $ 86.76 | ||||
| 511 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 6.95 | ||||
| 831 | M0322202 | Tie Wire |
|
- | |||||
| 851 | 12617601 | Tube, Plastic |
|
- | |||||
| 861 | 12607601Q | Insulation,tubing |
|
- | |||||
| 871 | M0321210 | Tie, Elec |
|
- | |||||
| 901 | 12567001 | Cover, Crisper Light |
|
- | |||||
| 911 | A3030303 | Gasket (per Foot) |
|
- | |||||
| 1401 | 12558405 | Plate,filter Backing-24 |
|
- | |||||
| 1641 | 12666201 | Plate, Light Backing |
|
- | |||||
| 1651 | C8973407 | Socket,light |
|
- | |||||
| 1661 | W11233072 | Screw (Replaces: M0214931) |
|
Immediately | $ 14.02 |
