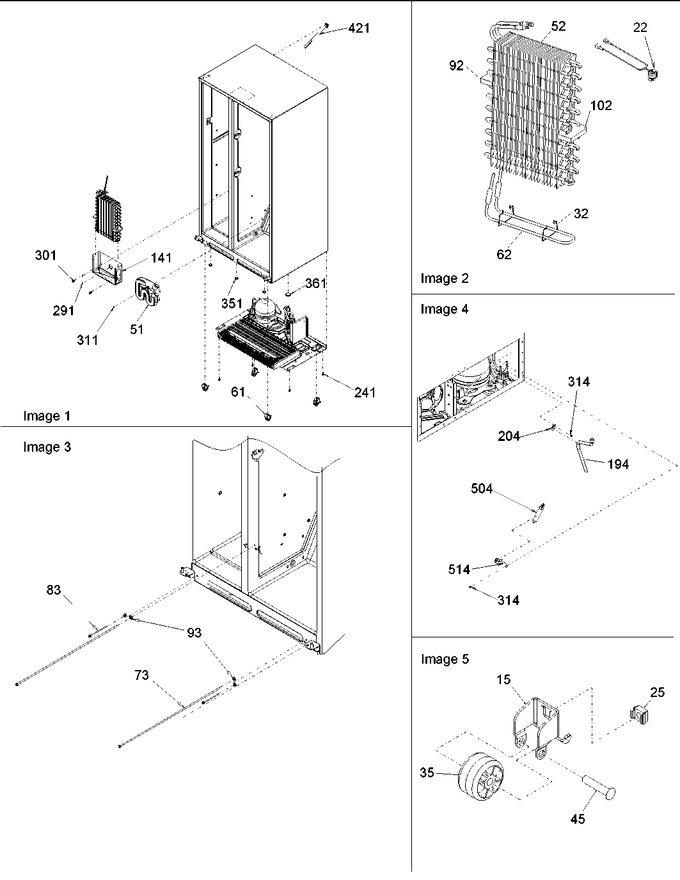

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	12456801V		Bracket, Roller   (Replaces: 12456801)				$ 50.57
22	R0131454		Kit, Thermostat				$ 117.47
25	M0286708		Nut, Speed				$ 45.57
32	W11673433		Clip, Evap Heater   (Replaces: 10428101)				$ 141.12
35	WP10450603		Roller   (Replaces: 10450602)				$ 7.88
45	M1205302		Rivet				$ 5.85
51	R0131625		Kit, Water Tank				$ 91.13
52	12676401		Evaporator, Sxs		Appelez-nous	-
61	12580301Q		Assy, Roller Brkt		Appelez-nous	-
62	WP12049801		Heater, Evap   (Replaces: 12049801)				$ 142.38
73	10093314		Screw, Adjusting		Appelez-nous	-
83	71003131		Bolt, Roller Adj   (Replaces: 12606102)			Immediately	$ 6.74
92	12590101		Block, Air Coil (lt)		Appelez-nous	-
93	M0274074		Washer, Nylon		Appelez-nous	-
102	12590102		Block, Air Coil (rt)		Appelez-nous	-
141	12558101WD		Tray, Evap Drip		Appelez-nous	-
194	12580401		Tube, Drain		Appelez-nous	-
204	M0102303		Clamp		Appelez-nous	-
241	M0260242		Screw, Tf		Appelez-nous	-
291	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 7.82
301	10623003		Clip, Evaporator		Appelez-nous	-
311	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
314	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
351	A3080001		Plug, Button (blk)		Appelez-nous	-
361	A3076901		Plug-button				$ 5.70
421	12455802		Elbow,fill Tube-24		Appelez-nous	-
504	WPB2150504		Drier   (Replaces: B2150504)				$ 130.46
514	10547002		Clip, Drier		Appelez-nous	-
