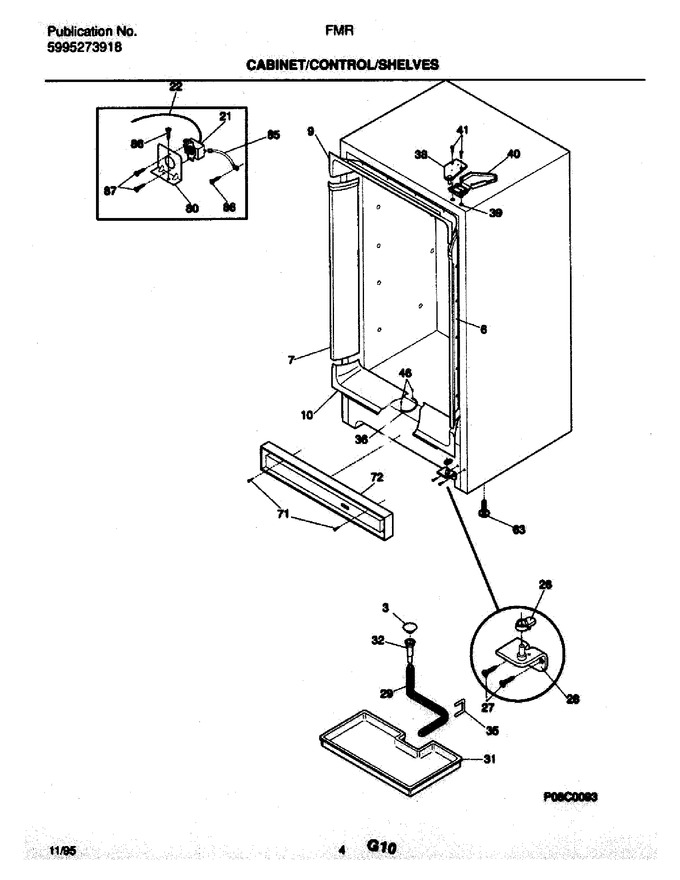

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen, Drain   (Replaces: 5308037403)				$ 69.08
6	216108400		Breaker-hinge		Appelez-nous	-
7	216108500		Breaker		Appelez-nous	-
9	216073300		Breaker Top		Appelez-nous	-
10	216073200		Breaker Bottom		Appelez-nous	-
21	216424600		Control-temperature		Appelez-nous	-
22	5303916855		Insulator, Plastic Tubing, Temp Sensor				$ 67.73
26	5303210424		Ramp, Door		Appelez-nous	-
27	154518001		Screw-hinge, Cr, 1/4-20 X 1., Btm   (Replaces: 5303205738)				$ 11.71
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 17.67
31	5308016387		Pan, Drain		Appelez-nous	-
32	5304511843		Drain   (Replaces: 5308005500)				$ 15.27
35	06594637		Clip		Appelez-nous	-
36	06594651		Wire, Ground		Appelez-nous	-
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303276520		Cover-hinge, Black		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
46	08037851		Screw				$ 3.57
63	205363701		Foot-adjustable		Appelez-nous	-
71	5303302714		Screw		Appelez-nous	-
72	216294305		Grille/kickplate,black		Appelez-nous	-
80	216307501		Bracket-temp Contr		Appelez-nous	-
85	5303301497		Wire,ground		Appelez-nous	-
86	216036600		Screw		Appelez-nous	-
87	08037849		Screw				$ 8.98
	216502500		Sleeve, Suction Line   (Replaces: 5303207297)				$ 12.05
	06594680		Clip, Breaker		Appelez-nous	-
