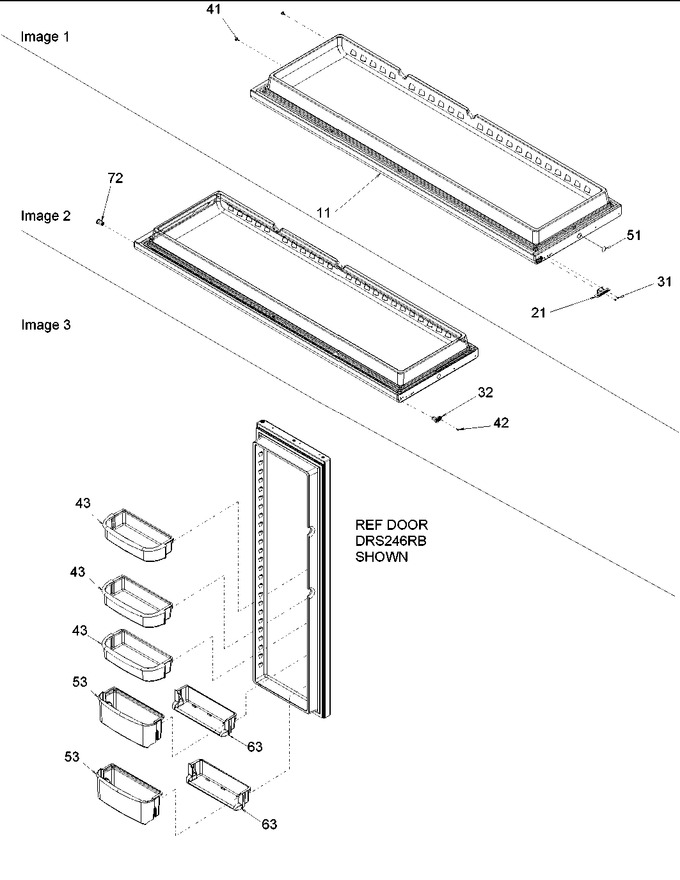

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12584702CQ		Assy,ref Dr Foam(bisque)		Appelez-nous	-
21	12636401C		Stop, Door (bsq)		Appelez-nous	-
31	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
32	R0181181		Closure, Door (blk)   (Replaces: 12113204)			Immediately	$ 7.19
41	M0311606		Plug, Button (bsq)		Appelez-nous	-
42	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.44
43	12556402		Assy,gal Bucket-dba		Appelez-nous	-
51	A3080001		Plug, Button (blk)		Appelez-nous	-
53	12568902		Assy,2l Tilt-dba		Appelez-nous	-
63	12569201		Frame,2l Ref-tilt		Appelez-nous	-
72	10961001		Bushing, Door (wht)		Appelez-nous	-
