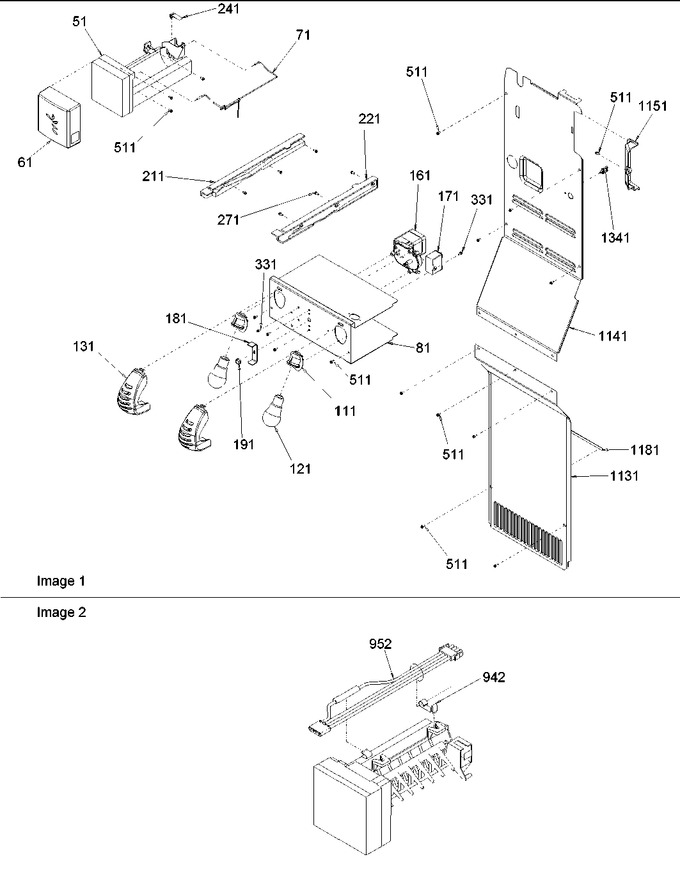

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
51	D7824706Q		Ice Maker   (Replaces: D7824705)			Immediately	$ 167.35
61	WPW10289690		Cover, Ice Maker   (Replaces: 12582501)			Immediately	$ 8.40
71	12671401Q		Im Arm/wire Assy		Appelez-nous	-
81	12561701		Cover, Auger Motor		Appelez-nous	-
111	W11447232		Socket, Light   (Replaces: Y12570701)			Immediately	$ 13.21
113	12403401		Cover, Evap		Appelez-nous	-
114	12403304		Back, Inner Fz		Appelez-nous	-
115	12583101		Cover, Supply Air		Appelez-nous	-
118	A3030302		Gasket		Appelez-nous	-
121	40A15		Bulb, Light (40 Watt)   (Replaces: A0282803)			Immediately	$ 1.98
131	12583001		Shield, Fz Light		Appelez-nous	-
134	B5667304		Wire Clip		Appelez-nous	-
161	12501001		Motor, Auger		Appelez-nous	-
171	WP65889-4		Capacitor   (Replaces: C8931608)			Immediately	$ 61.14
181	10114901		Driver (ice Maker)				$ 1.61
191	WPM0223101		Nut, Locking   (Replaces: M0223101)				$ 7.68
211	67005375		Glide, Frz (lt)   (Replaces: D7849906)				$ 297.92
221	D7849907		Glide, Frz (rt)		Appelez-nous	-
241	B5720302		Clip		Appelez-nous	-
271	67006529		Screw, Sm (stnls)   (Replaces: M0213530)				$ 12.83
331	WPW10139210		Screw, Tc   (Replaces: M0226528)				$ 7.50
511	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
942	10526701		Clamp, Wire		Appelez-nous	-
952	WPW10146386		Harness, Im   (Replaces: 12583401)				$ 124.57
NI	12672501		Harness,auger Mtr		Appelez-nous	-
