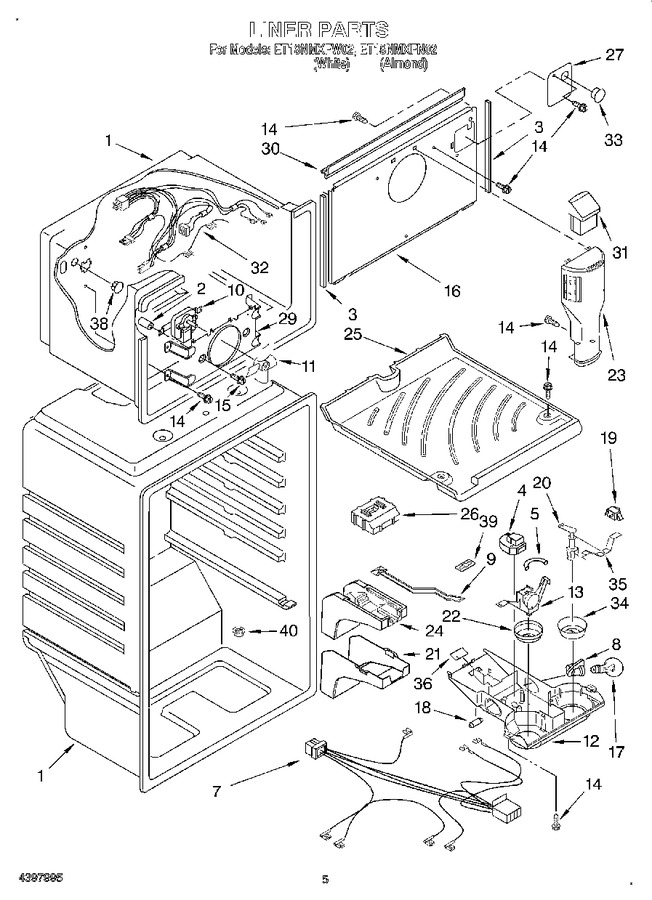

01 - Cabinet
02 - Door
03 - Liner
04 - Unit
05 - Icemaker
06 - Shelf, Lit/optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 531933 | Grommet (2) |
|
$ 5.70 | |||||
| 3 | WP2254360 | Gasket, Evaporator Cover (side) (Replaces: 2189268) |
|
$ 28.12 | |||||
| 4 | W10822278 | Timer, Defrost (Replaces: 2193084) |
|
Immediately | $ 34.44 | ||||
| 5 | WP2196003 | Thermostat Tube Barrier (Replaces: 549512) |
|
$ 8.35 | |||||
| 7 | 2193493 | Wire Assy. Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (2) (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 9 | 2179858 | Damper, Air |
|
- | |||||
| 10 | 2183448 | Fan Motor |
|
- | |||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2163777) |
|
Immediately | $ 66.15 | ||||
| 12 | 2179790 | Control Box |
|
- | |||||
| 13 | 4387562 | Thermostat (includes Items 5, 18 & 36) (Replaces: 2197536) |
|
Immediately | $ 333.13 | ||||
| 14 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 15 | 489412 | Screw |
|
- | |||||
| 16 | 2183154 | Cover, Evaporator |
|
- | |||||
| 17 | 8009 | Light Bulb (2) (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 18 | 2163802 | Weight, Thermal |
|
- | |||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 20 | 2179859 | Post, Damper |
|
- | |||||
| 21 | 2176281 | Cover, Air Diffuser |
|
$ 41.64 | |||||
| 22 | 2193455 | Knob, Thermostat |
|
- | |||||
| 23 | 2182340 | Air Tower |
|
$ 43.02 | |||||
| 24 | WP2189452 | Air Diffuser, Bottom (Replaces: 2176280) |
|
Immediately | $ 131.03 | ||||
| 25 | 2172565 | Freezer Floor |
|
- | |||||
| 26 | 2179877 | Air Diffuser, Top |
|
- | |||||
| 27 | WP2217784 | Cover, Hole (Replaces: 2198736) |
|
$ 47.22 | |||||
| 29 | 2198901 | Bracket, Fan Motor |
|
- | |||||
| 30 | WP2254360 | Gasket, Evaporator Cover (top) (Replaces: 2189267) |
|
$ 28.12 | |||||
| 31 | 2174629 | Air Return & Foil Assembly |
|
- | |||||
| 32 | 2195656 | Wire Assembly, Freezer Compartment |
|
- | |||||
| 33 | 940014 | Plug, Hole |
|
$ 18.33 | |||||
| 34 | 2176297 | Knob, Damper |
|
- | |||||
| 35 | 2163810 | Bracket, Damper Knob |
|
$ 6.01 | |||||
| 36 | WP2205079 | Seal, Rear Thermostat (Replaces: 2172532) |
|
$ 10.01 | |||||
| 38 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 8.03 | |||||
| 39 | 2176341 | Clip, Defrost Timer |
|
- | |||||
| 40 | WP2210509 | Release Valve (Replaces: 2171931) |
|
$ 99.15 |
