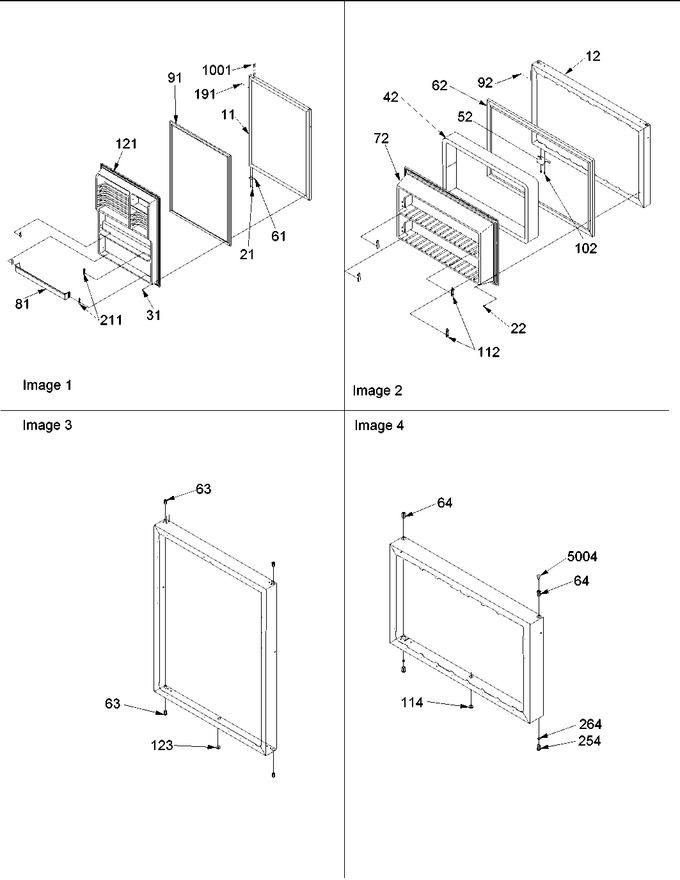

SELECT A DIAGRAM

01 - Cabinet Back


02 - Door Assy


03 - Door Handles & Door Shelves


04 - Door Hinges, Fz Duct


05 - Evaporator & Evaporator Fan Motor Assy


06 - Ice Maker Assy & Parts


07 - Interior Cabinets & Drain Block Assy


08 - Ladders, Lower Cabinet


09 - Machine Compartment


10 - Shelving & Crisper Frame Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10925409C		Assy,ref Dr Foam(bisque)		Appelez-nous	-
12	10925612C		Assy,fz Door Foam(bisque)		Appelez-nous	-
21	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
22	M0219730		Screw				$ 7.65
31	M0219730		Screw				$ 7.65
42	B0523593		Insulation, Batt Frz. Dr.		Appelez-nous	-
52	67003781		Stop, Door (bsq)   (Replaces: 10447110)				$ 83.12
61	67003781		Stop, Door (bsq)   (Replaces: 10447110)				$ 83.12
62	WP12550110Q		Gasket, Frz Dr (wht)   (Replaces: 12550110)				$ 298.65
63	10961001		Bushing, Door (wht)		Appelez-nous	-
64	10961001		Bushing, Door (wht)		Appelez-nous	-
72	10461001Q		Liner, Frz Door (18)		Appelez-nous	-
81	10419209		Retainer,ref Door		Appelez-nous	-
91	WP12550109Q		Gasket, Ref Dr (wht)   (Replaces: 12550109)			Immediately	$ 322.33
92	12246604		Plug, Handle Hole (bsq)		Appelez-nous	-
102	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
112	10202001		Clip, Retainer		Appelez-nous	-
114	M0310344		Plug, Button (bsq)		Appelez-nous	-
121	10461705		Liner,ref Door		Appelez-nous	-
123	M0310344		Plug, Button (bsq)		Appelez-nous	-
191	12246604		Plug, Handle Hole (bsq)		Appelez-nous	-
211	10202001		Clip, Retainer		Appelez-nous	-
254	12028601		Bushing, Door (wht)		Appelez-nous	-
264	10252903		Filter, Bushing		Appelez-nous	-
1001	M0310738		Plug, Top Hinge Button (bsq)		Appelez-nous	-
5004	10686407		Plug,button(bisque)		Appelez-nous	-
