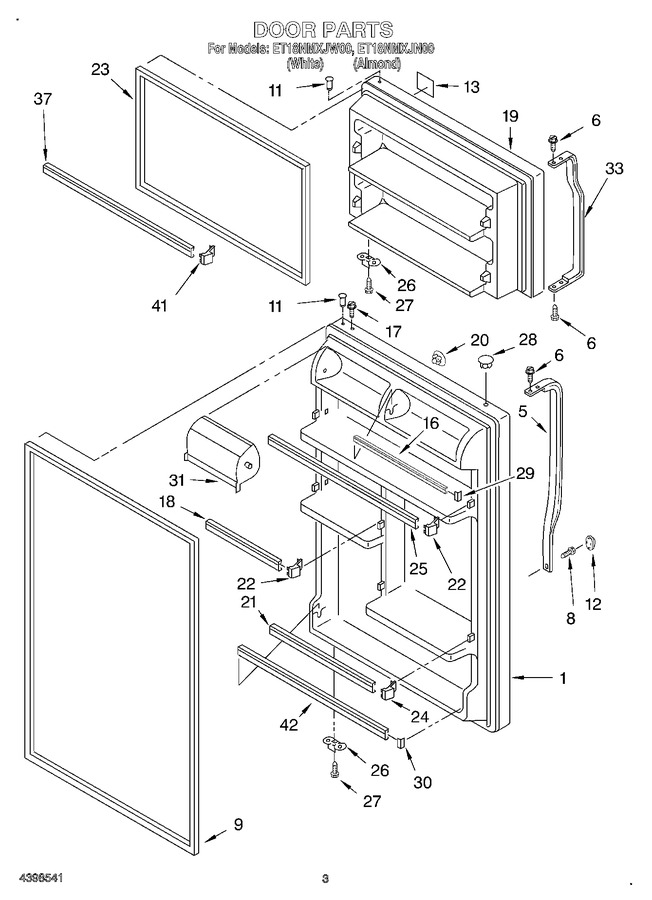

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183948 | Refrigerator Door (includes No.9 & No.11) (white) |
|
- | |||||
| 1 | 2183949 | Refrigerator Door (includes No.9 & No.11) (almond) |
|
- | |||||
| 5 | WP2202807W | Handle, R.c. (white) (Replaces: 2202807W) |
|
$ 155.22 | |||||
| 5 | 2202807N | Handle, R.c. (almond) |
|
- | |||||
| 6 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.19 | ||||
| 8 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 7.56 | |||||
| 9 | 2159057 | Door Gasket, Magnetic (mist Beige) |
|
Immediately | $ 164.66 | ||||
| 11 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.75 | |||||
| 12 | WP2202819W | Cover, Screw (white) (Replaces: 2202819W) |
|
Immediately | $ 7.75 | ||||
| 12 | 2202819N | Cover, Screw (almond) |
|
- | |||||
| 13 | 2183209 | Nameplate (almond Model) |
|
- | |||||
| 13 | 2157907 | Nameplate (white) |
|
$ 6.56 | |||||
| 16 | WP2201061 | Trim, Door Shelf (Replaces: 2180027) |
|
$ 118.40 | |||||
| 17 | WP8281206 | Screw (Replaces: 489028) |
|
$ 7.94 | |||||
| 18 | 2201052 | Trim, Door |
|
$ 28.91 | |||||
| 19 | 2182487 | Freezer Door (includes No.11 & No.23) (white) |
|
- | |||||
| 19 | 2182491 | Freezer Door (includes No.11 & No.23) (almond) |
|
- | |||||
| 20 | 2189008 | Hole Plug (almond) |
|
- | |||||
| 20 | WP2189000 | Hole Plug (white) (Replaces: 2189000) |
|
Immediately | $ 7.40 | ||||
| 21 | WP2195943 | Trim, Door Shelf (Replaces: 2195943) |
|
$ 87.41 | |||||
| 22 | WP2156003 | Plug-trim (Replaces: 2156003) |
|
Immediately | $ 12.62 | ||||
| 23 | 2159327 | Door Gasket, Magnetic (mist Beige) |
|
Immediately | $ 164.58 | ||||
| 24 | WP2195915 | Endcap (2) (Replaces: 2195915) |
|
$ 13.07 | |||||
| 25 | WP2201051 | Trim, Door Shelf (Replaces: 2201051) |
|
$ 109.59 | |||||
| 26 | W11745278 | Bracket, Door Stop (2) (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 28 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 7.80 | ||||
| 28 | 989196 | Hole Plug (almond) |
|
- | |||||
| 29 | WP2156007 | Plug-trim (4) (Replaces: 2156007) |
|
Immediately | $ 7.65 | ||||
| 30 | WP2156006 | Plug-trim (4) (Replaces: 2156006) |
|
Immediately | $ 12.18 | ||||
| 31 | WP2218113 | Door, Compartment (Replaces: 2171036) |
|
Immediately | $ 50.33 | ||||
| 33 | 2202806N | Handle, F.c. (almond) |
|
- | |||||
| 33 | WP2202806W | Handle, F.c. (white) (Replaces: 2202806W) |
|
$ 148.00 | |||||
| 37 | 2201050 | Trim-door (2) |
|
$ 43.26 | |||||
| 41 | WP2156003 | Endcap (4) (Replaces: 2156003) |
|
Immediately | $ 12.62 | ||||
| 42 | WPW10421484 | Trim, Door (Replaces: 2195949) |
|
$ 129.76 |
