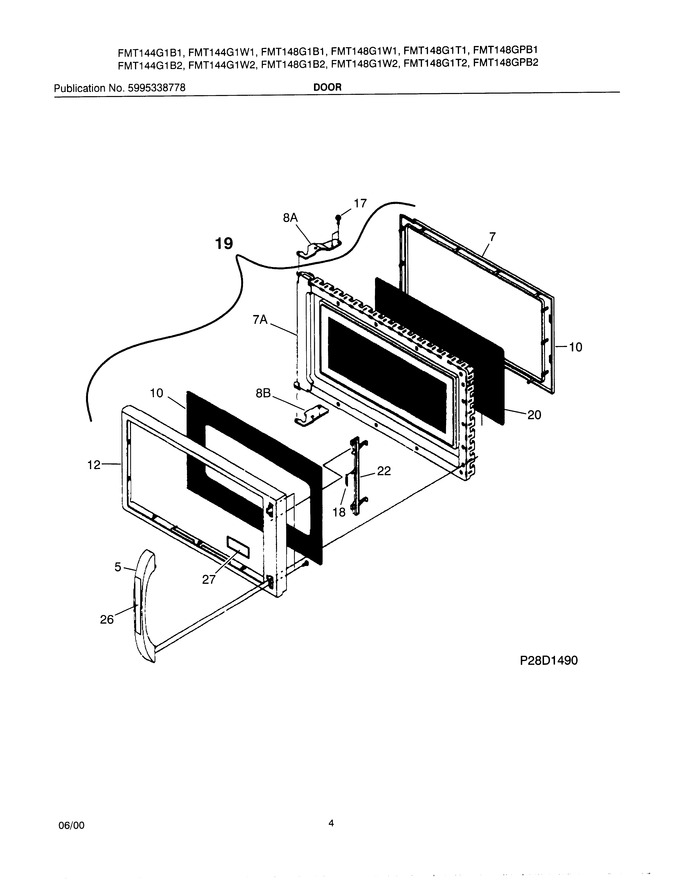

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5304408525		Door Handle Assy-blk				$ 286.55
7	5304408575		Door-choke, Inner Frame (blk & Ss Moddels)		Appelez-nous	-
10	5304408530		Cover-door, Outer, Blk		Appelez-nous	-
12	5304408536		Panel-door, Outer, Blk				$ 475.60
17	5304408958		Screw		Appelez-nous	-
18	5304409135		Spring-door Latch		Appelez-nous	-
19	5304408519		Door-complete, Blk		Appelez-nous	-
20	5304409136		Seal-film				$ 228.85
22	5304409137		Latch-door		Appelez-nous	-
7A	5304409132		Door-liner (blk & Ss Models)		Appelez-nous	-
8A	5304408578		Plate-hinge, Upper		Appelez-nous	-
8B	5304408579		Plate-hinge, Lower		Appelez-nous	-
