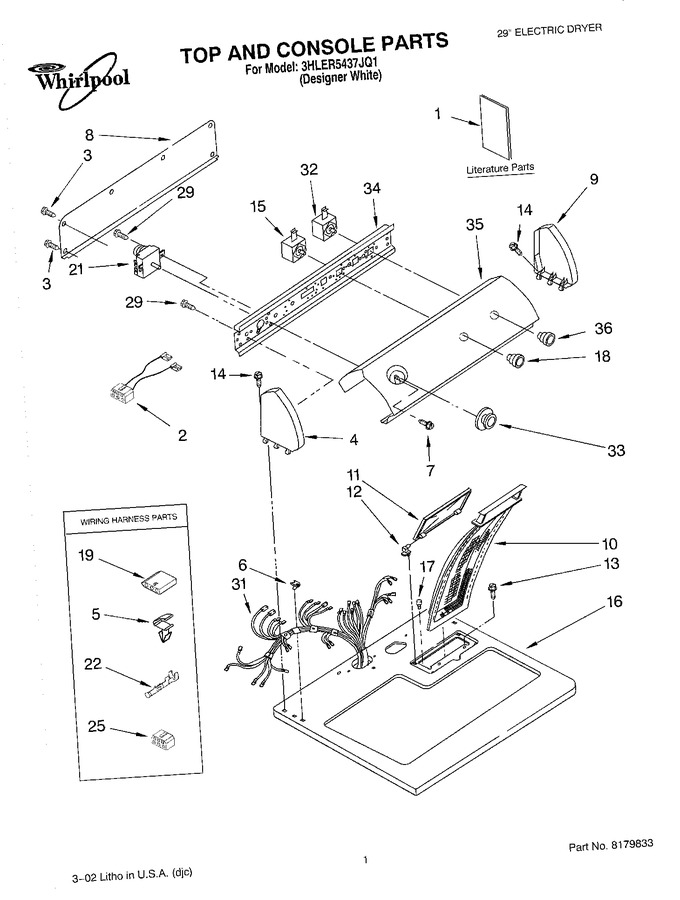

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3397626		Literature Parts (installation Instructions (spanish))		Appelez-nous	-
1	LIT8533212		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT3397627		Literature Parts (installation Instructions (english))		Appelez-nous	-
1	LIT8318354		Literature Parts (use & Care Guide)		Appelez-nous	-
2	8283286		Wire Jumper Assembly   (Replaces: 3396028)		Appelez-nous	-
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	WP3394427		Clip   (Replaces: 3394427)				$ 7.79
6	WP357213		Nut,push-in   (Replaces: 357213)				$ 7.39
7	3400859		Screw, Grounding				$ 13.88
8	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
9	8271359		Cap, End (r.h.)		Appelez-nous	-
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	8283378		Cover, Lint Screen				$ 44.80
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.72
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.72
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
15	3399638		Switch, Temperature				$ 136.24
16	8271390		Top		Appelez-nous	-
17	297535		Bumper, Lint Lid		Appelez-nous	-
18	WP3957799		Knob, Control   (Replaces: 8271339)				$ 52.44
19	3936144		Connector (3-circuit)				$ 21.22
21	3396215		Timer 60 Hz.				$ 180.59
22	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
25	3347243		Connector 6-circuit		Appelez-nous	-
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
31	8529856		Harness, Wiring		Appelez-nous	-
32	WP3395382		Switch, Push-to-start   (Replaces: 3395382)			Immediately	$ 43.80
33	WP3957754		Knob, Timer   (Replaces: 8312687)				$ 59.87
34	8271418		Bracket, Control				$ 57.15
35	8318381		Panel, Control		Appelez-nous	-
36	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
36	3957804		Knob, Push To Start   (Replaces: 8271341)				$ 52.89
36	3406839		Dry Rack			Immediately	$ 65.68
36	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
36	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
36	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	LIT677818		Dryer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
