SELECT A DIAGRAM

01 - Cabinet Back


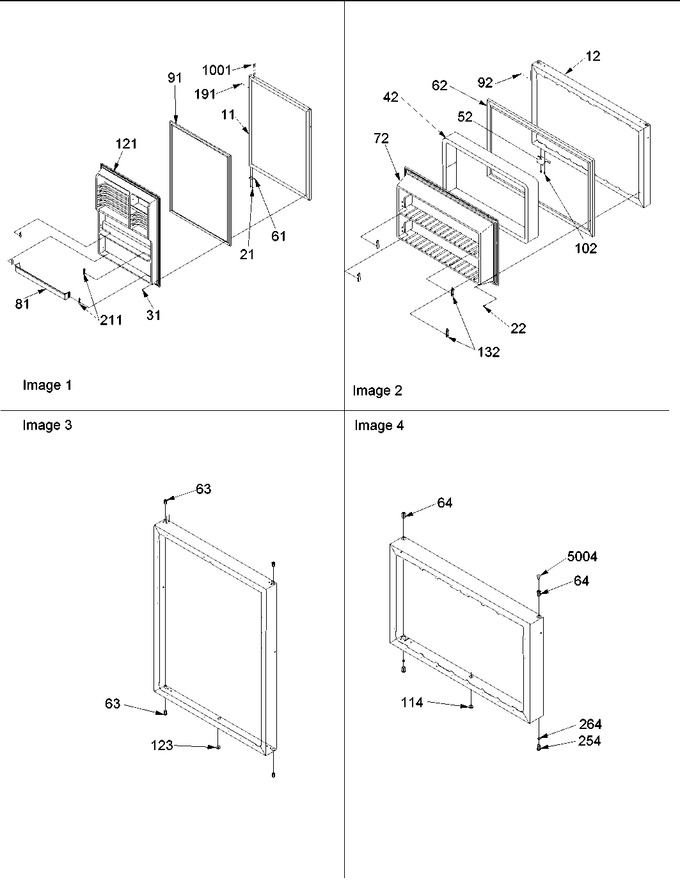

02 - Door Assy


03 - Door Handles & Door Shelves


04 - Door Hinges, Fz Duct


05 - Evaporator & Evaporator Fan Motor Assy


06 - Ice Maker Assy & Parts


07 - Interior Cabinets & Drain Block Assy


08 - Ladders, Lower Cabinet


09 - Machine Compartment


10 - Shelving & Crisper Frame Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	10925401W		Assy, Ref Door (white) Btm		Appelez-nous	-
12	10925609W		Assy. Frz Door Fm		Appelez-nous	-
21	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
22	M0219730		Screw				$ 7.65
31	M0219730		Screw				$ 7.65
42	B0523593		Insulation, Batt Frz. Dr.		Appelez-nous	-
52	12968202W		Stop, Door (wht)   (Replaces: 10447108)				$ 69.29
61	12968202W		Stop, Door (wht)   (Replaces: 10447108)				$ 69.29
62	12550112		Gasket, Frz Dr (wht)		Appelez-nous	-
63	10961001		Bushing, Door (wht)		Appelez-nous	-
64	10961001		Bushing, Door (wht)		Appelez-nous	-
72	10415501Q		Liner, Frz Dr		Appelez-nous	-
81	10419021		Retainer, Ref Dr		Appelez-nous	-
91	WP12550111Q		Gasket, Ref Dr (wht)   (Replaces: 12550111)				$ 178.50
92	WP67001130		Plug, Handle Hole (wht)   (Replaces: 12246601)			Immediately	$ 5.98
102	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
114	M0310308		Plug, Button (wht)		Appelez-nous	-
121	10440804		Liner, Ref Door		Appelez-nous	-
123	M0310308		Plug, Button (wht)		Appelez-nous	-
132	10202001		Clip, Retainer		Appelez-nous	-
191	WP67001130		Plug, Handle Hole (wht)   (Replaces: 12246601)			Immediately	$ 5.98
211	10202001		Clip, Retainer		Appelez-nous	-
254	12028601		Bushing, Door (wht)		Appelez-nous	-
264	10252903		Filter, Bushing		Appelez-nous	-
1001	WP67001130		Plug, Top Hinge Button (wht)   (Replaces: M0310729)			Immediately	$ 5.98
5004	10686401		Plug Button		Appelez-nous	-
