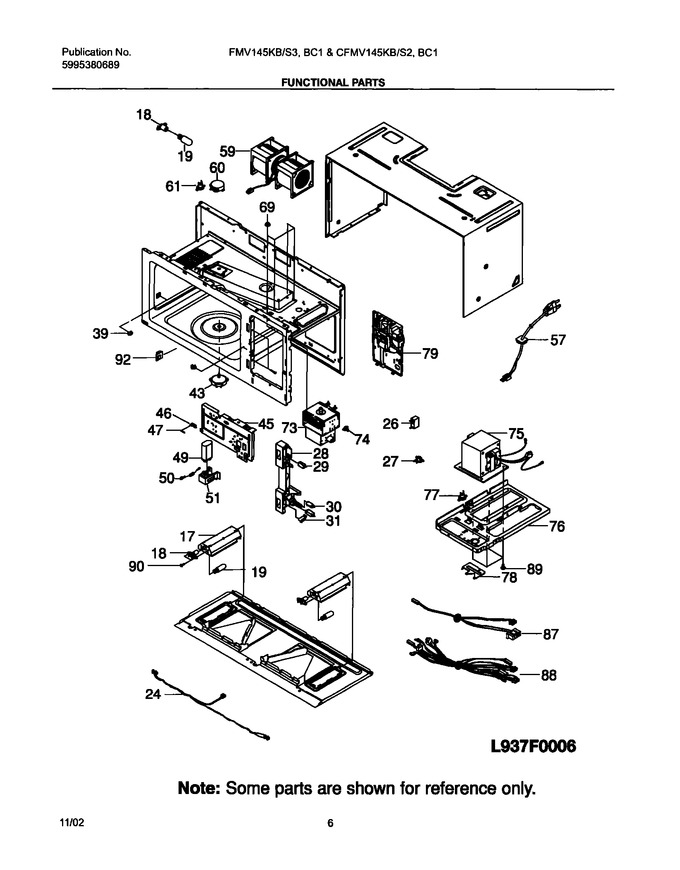

SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Control Panel


07 - Functional Parts


09 - Body


11 - Installation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
17	5304429455		Bracket,lamp Mtg ,bottom		Appelez-nous	-
19	5304408949		Lamp,incandescent				$ 22.31
28	5304429457		Latch Body,switch Housing				$ 148.05
31	5304408963		Lever,switch ,bottom				$ 48.09
39	5304423381		Support,rack-a				$ 79.28
45	5304408961		Bracket-air Guide		Appelez-nous	-
51	5304408946		Bracket,capacitor Mtg		Appelez-nous	-
69	5304408962		Nut,flange		Appelez-nous	-
73	5304423374		Magnetron		Appelez-nous	-
76	5304423377		Plate,xfmr Base		Appelez-nous	-
78	5304423384		End Cap,xfmr Base ,bottom		Appelez-nous	-
89	5304423527		Screw,washer Head		Appelez-nous	-
90	5304408964		Screw,special		Appelez-nous	-
92	5304423390		Support,rack-b				$ 45.83
F18	5304424251		Receptacle,lamp				$ 123.99
F24	5304429456		Wiring Harness,d				$ 353.27
F26	5304408941		Capacitor-motor				$ 285.50
F27	5304417433		Thermostat,thermal Cutout ,hood ,				$ 235.04
F29	5304430284		Switch,interlock ,door/primary		Appelez-nous	-
F30	5304430285		Switch,interlock ,monitor		Appelez-nous	-
F43	5304408980		Motor,turntable				$ 765.99
F46	5304423382		Receptacle,fuse		Appelez-nous	-
F47	5304423383		Fuse,cartridge ,20 Amp				$ 74.50
F49	5304423378		Capacitor,high Voltage				$ 426.41
F50	5304417430		Diode,high Voltage				$ 47.99
F57	5304408947		Power Cord,electric				$ 194.51
F59	5304408943		Fan Assy,ventilator ,with Motor				$ 420.32
F60	5304408944		Motor,stirrer Fan				$ 216.93
F61	5304423690		Thermostat,thermal Cutout ,oven Cavity				$ 157.55
F74	5304408936		Thermostat,thermal Cutout ,magnetron				$ 188.32
F75	5304408933		Transformer,high Voltage				$ 583.38
F77	5304408935		Thermostat,thermal Cutout ,bottom ,				$ 187.16
F79	5304423385		Fan Assy,cooling ,with Motor		Appelez-nous	-
F87	5304423386		Wiring Harness,c		Appelez-nous	-
F88	5304429459		Wiring Harness,a		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
