01 - Cover
03 - Door
05 - Control Panel

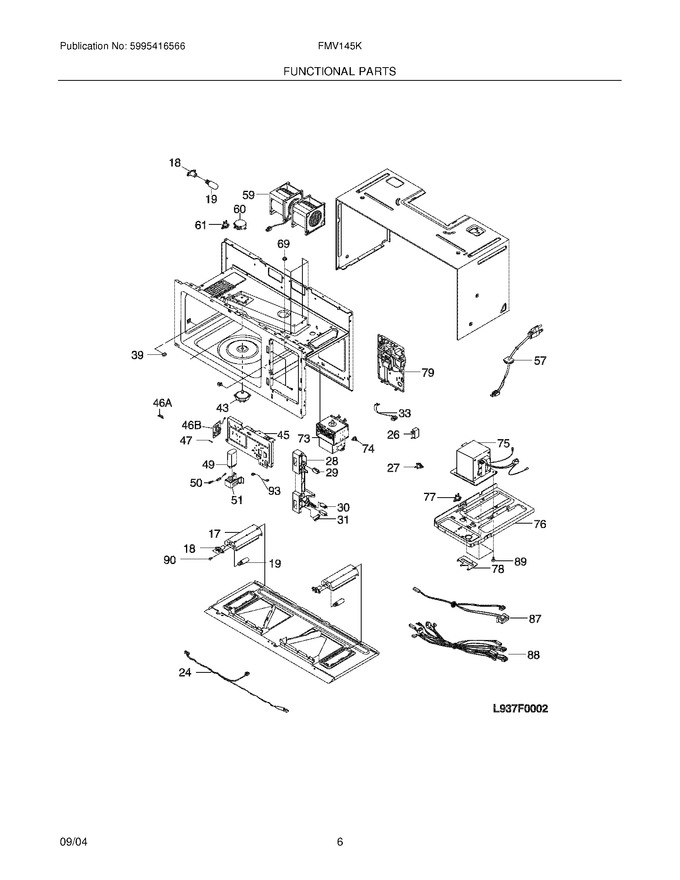

07 - Functional Parts
09 - Body
11 - Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 17 | 5304408954 | Bracket,lamp Mtg ,bottom |
|
$ 235.78 | |||||
| 19 | 5304408949 | Lamp,incandescent |
|
$ 22.31 | |||||
| 28 | 5304408960 | Latch Hook |
|
$ 228.64 | |||||
| 31 | 5304408963 | Lever,switch ,bottom |
|
$ 48.09 | |||||
| 39 | 5304408965 | Support,rack |
|
$ 26.68 | |||||
| 45 | 5304408961 | Bracket-air Guide |
|
- | |||||
| 51 | 5304408946 | Bracket,capacitor Mtg |
|
- | |||||
| 69 | 5304408962 | Nut,flange |
|
- | |||||
| 73 | 5304423374 | Magnetron |
|
- | |||||
| 76 | 5304423523 | Plate,xfmr Base |
|
- | |||||
| 78 | 5304423384 | End Cap,xfmr Base ,bottom |
|
- | |||||
| 89 | 5304423527 | Screw,washer Head |
|
- | |||||
| 90 | 5304408964 | Screw,special |
|
- | |||||
| F18 | 5304408948 | Receptacle,lamp |
|
- | |||||
| F24 | 5304436713 | Wiring Harness,d |
|
- | |||||
| F26 | 5304408941 | Capacitor-motor |
|
$ 285.50 | |||||
| F27 | 5304417433 | Thermostat,thermal Cutout ,hood ,40/70 Deg C |
|
$ 235.04 | |||||
| F29 | 5304408938 | Switch,interlock ,door/primary |
|
$ 190.84 | |||||
| F30 | 5304408937 | Switch,interlock ,monitor |
|
$ 225.17 | |||||
| F33 | 5304408952 | Wiring Harness |
|
- | |||||
| F43 | 5304408980 | Motor,turntable |
|
$ 765.99 | |||||
| F46A | 5304423382 | Receptacle,fuse |
|
- | |||||
| F47 | 5304423383 | Fuse,cartridge ,20 Amp |
|
$ 74.50 | |||||
| F49 | 5304423521 | Capacitor,high Voltage |
|
- | |||||
| F50 | 5304417430 | Diode,high Voltage |
|
$ 47.99 | |||||
| F57 | 5304408947 | Power Cord,electric |
|
$ 194.51 | |||||
| F59 | 5304408943 | Fan Assy,ventilator ,with Motor |
|
$ 420.32 | |||||
| F60 | 5304408944 | Motor,stirrer Fan |
|
$ 216.93 | |||||
| F61 | 5304423690 | Thermostat,thermal Cutout ,oven Cavity |
|
$ 157.55 | |||||
| F74 | 5304408936 | Thermostat,thermal Cutout ,magnetron |
|
$ 188.32 | |||||
| F75 | 5304408933 | Transformer,high Voltage |
|
$ 583.38 | |||||
| F77 | 5304408935 | Thermostat,thermal Cutout ,bottom ,120/0 Deg C |
|
$ 187.16 | |||||
| F79 | 5304408942 | Fan Assy,cooling ,includes Motor |
|
- | |||||
| F87 | 5304423386 | Wiring Harness,c |
|
- | |||||
| F88 | 5304423525 | Wiring Harness,a |
|
- |
