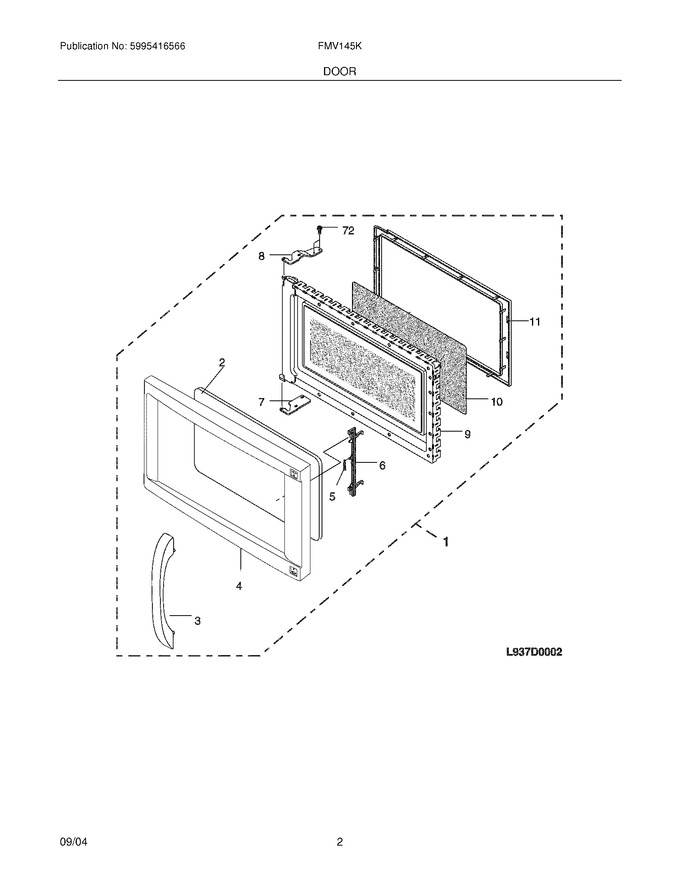

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304424543		Door,white ,complete Assy		Appelez-nous	-
2	5304408529		Screen,door ,glass ,front		Appelez-nous	-
3	5304408524		Handle,door ,white		Appelez-nous	-
4	5304423510		Frame,door ,white ,outer		Appelez-nous	-
5	5304423440		Spring,door Latch		Appelez-nous	-
6	5304409138		Latch,door		Appelez-nous	-
7	5304408579		Hinge,door ,lower		Appelez-nous	-
8	5304408578		Hinge,door ,upper		Appelez-nous	-
9	5304409133		Panel,door ,white ,inner		Appelez-nous	-
10	5304409136		Seal,door ,film				$ 228.85
11	5304408576		Frame,choke Cover ,white ,inner Door		Appelez-nous	-
72	5304408958		Bolt,flange		Appelez-nous	-
