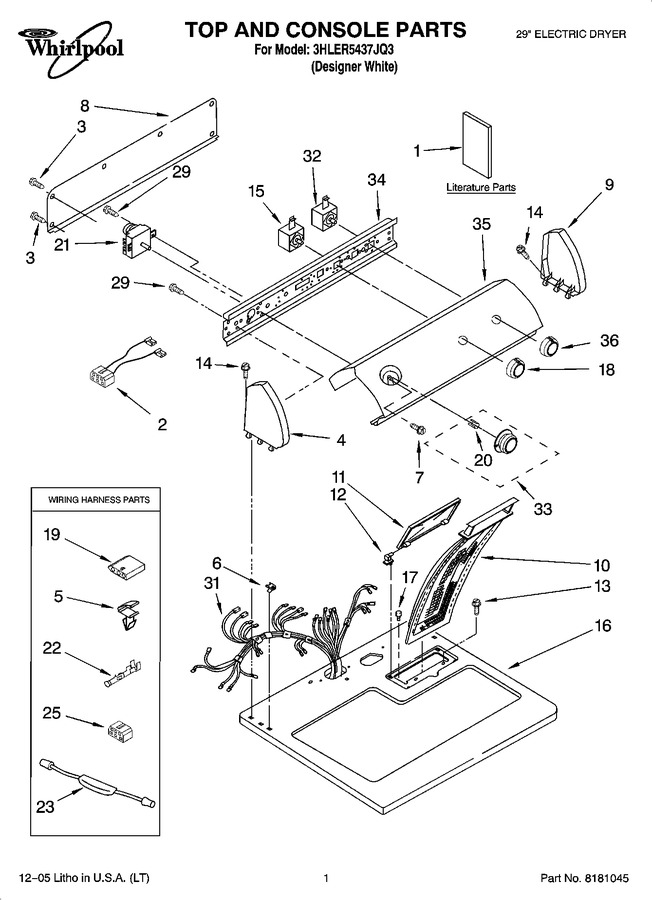

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8533212 | Wiring Diagram |
|
- | |||||
| 1 | 677818 | Manual, Do-it- Yourself Repair (dryer) |
|
- | |||||
| 1 | N/A | Following May Be Purchased Do-it-yourself Repair Manuals |
|
- | |||||
| 1 | 8318354 | Use & Care Guide |
|
- | |||||
| 1 | 3397626 | Installation Instructions (spanish) |
|
- | |||||
| 1 | 3397627 | Installation Instructions (english) |
|
- | |||||
| 2 | 8283286 | Wire Jumper Assembly (Replaces: 3396028) |
|
- | |||||
| 3 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 4 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 5 | WP3394427 | Clip (Replaces: 3394427) |
|
$ 7.79 | |||||
| 6 | WP357213 | Nut,push-in (Replaces: 357213) |
|
$ 7.39 | |||||
| 7 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 13.22 | |||||
| 8 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 128.87 | |||||
| 9 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 10 | WP349639 | Handle & Lint Screen Assembly (Replaces: 349639) |
|
Immediately | $ 37.21 | ||||
| 11 | 8283378 | Cover, Lint Screen |
|
$ 44.80 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 3978606) |
|
$ 7.72 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 3978605) |
|
$ 7.72 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.11 | |||||
| 15 | 3399638 | Switch, Temperature |
|
$ 129.75 | |||||
| 16 | 8271390 | Top |
|
- | |||||
| 17 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 18 | WP3957799 | Knob, Control (Replaces: 3957799) |
|
$ 52.44 | |||||
| 19 | 3936144 | Connector (3-circuit) |
|
$ 20.21 | |||||
| 20 | WP688805 | Spring Clip (Replaces: 688805) |
|
Immediately | $ 7.81 | ||||
| 21 | 3396215 | Timer 60 Hz. |
|
$ 180.59 | |||||
| 22 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 23 | 279872 | Resistor, Assembly (Replaces: 3406626) |
|
$ 74.94 | |||||
| 25 | 3347243 | Connector 6-circuit |
|
- | |||||
| 29 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 7.50 | |||||
| 31 | 8529856 | Harness, Wiring |
|
- | |||||
| 32 | WP3395382 | Switch, Push-to-start (Replaces: 3395382) |
|
Immediately | $ 43.80 | ||||
| 33 | WP3957754 | Knob, Timer (Replaces: 3957754) |
|
$ 59.87 | |||||
| 34 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 35 | 8318381 | Panel, Control |
|
- | |||||
| 36 | 3957804 | Knob, Push-to-start |
|
$ 50.37 |
