SELECT A DIAGRAM

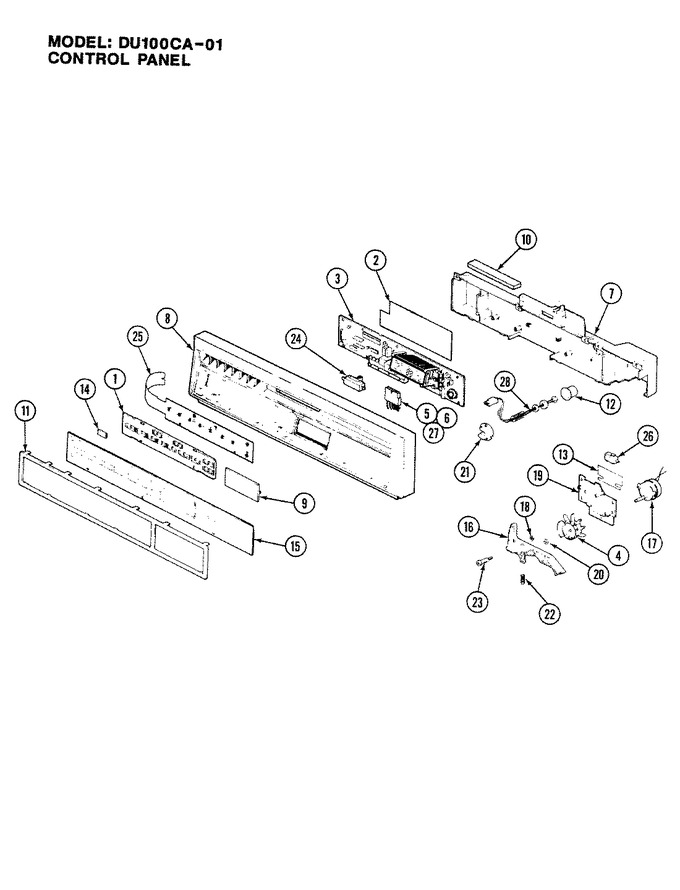

01 - Control Panel


02 - Door Assembly


03 - Pump Assembly


04 - Tub Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2080-0004		Barrier		Appelez-nous	-
2	2080-0005		Barrier, Moisture		Appelez-nous	-
3	2265-0006		Control		Appelez-nous	-
4	2195-0008		Cam, Motor		Appelez-nous	-
5	2260-0008		Connector, Elec 5 Pins		Appelez-nous	-
6	2260-0011		Connector, Elec. 6 Pin		Appelez-nous	-
7	2275-0031		Cover, Circuit Board		Appelez-nous	-
8	2799-0005		Decorative Panel		Appelez-nous	-
9	2390-0005		Filter, Display		Appelez-nous	-
10	2775-0007		Pad, Foam		Appelez-nous	-
11	2580-0028		Trim, Control Pnl		Appelez-nous	-
12	2535-0005		Housing, Thermistor		Appelez-nous	-
13	2590-0009		Insulator, Switch		Appelez-nous	-
14	3135-0066		Switch, Key		Appelez-nous	-
15	2655-0007		Lens		Appelez-nous	-
16	2660-0024		Lever, Detergent Trip		Appelez-nous	-
17	2720-0012		Motor, Detergent Cup		Appelez-nous	-
18	2735-0006		Nut, Float Tube		Appelez-nous	-
19	2845-0031		Plate Mounting		Appelez-nous	-
20	2940-0011		Retainer		Appelez-nous	-
21	2940-0012		Retainer, Thermistor		Appelez-nous	-
22	3070-0007		Spring, Det. Trip		Appelez-nous	-
23	3125-0004		Nut Lock		Appelez-nous	-
24	3135-0064		Switch		Appelez-nous	-
25	3135-0065		Switch		Appelez-nous	-
26	3135-0067		Switch, Deter Mtr		Appelez-nous	-
27	3154-0002		Terminal		Appelez-nous	-
28	3155-0002		Thermistor & Spring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
